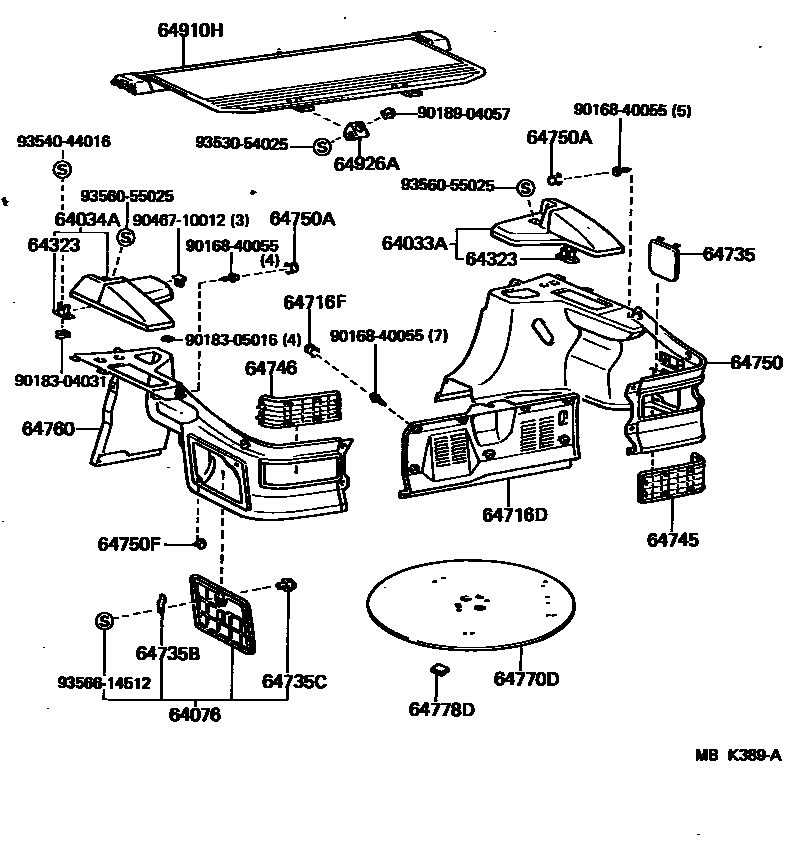

DECK BOARD & DECK TRIM COVER

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-14070-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64033-14070-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64033-14070-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64033-14070-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-14060-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64034-14060-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64034-14060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64034-14060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64076COVER, DECK TRIM SIDE JACK

main64076-14060-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64076-14060-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64076-14060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64076-14060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-14030-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64323-14030-03iGA70,MA70198701-198808

GRAY,MEDIAM GRAY,TRIM1#

main64323-14030-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64323-14030-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-14140-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64716-14140-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64716-14140-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64716-14140-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01503-03×7iGA70,MA70198701-198808

GRAY,SHADOW GRAY,TRIM1#

main90950-01503-04×7iGA70,MA70198602-198808

BLUE,BLUE,TRIM8#

main90950-01503-05×7iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main90950-01503-12×7iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-14020-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64735-14020-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64735-14020-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64735-14020-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER

main64981-16021iGA70,MA70198602-198808

64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER

main64982-16020-10iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64982-16020-25iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main64982-16020-44iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64982-16020-53iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-14060-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64745-14060-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64745-14060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64745-14060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-14060-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64746-14060-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64746-14060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64746-14060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64750PANEL ASSY, DECK SIDE TRIM, RH

main64731-14110-02iGA70,MA70..LB198602-198808

MAROON,MAROON,TRIM3#

main64731-14110-03iGA70,MA70..LB198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64731-14110-04iGA70,MA70..LB198602-198808

BLUE,DEEP BLUE,TRIM8#

main64731-14110-05iGA70,MA70..LB198602-198701

BEIGE,DARK BEIGE,TRIM4#

main64731-14120-02iGA70,MA70..AET198606-198808

MAROON,MAROON,TRIM3#

main64731-14120-03iGA70,MA70..AET198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64731-14120-04iGA70,MA70..AET198606-198808

BLUE,DEEP BLUE,TRIM8#

main64731-14120-05iGA70,MA70..AET198606-198701

BEIGE,DARK BEIGE,TRIM4#

64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)

main90950-01503-04×4iGA70,MA70198602-198808

BLUE,BLUE,TRIM8#

main90950-01503-05×4iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

main90950-01503-12×4iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main90950-01503-13×4iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-07053-05×2iGA70,MA70198602-198701

BEIGE,BEIGE,TRIM4#

main90467-07053-12×2iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main90467-07053-13×2iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main90467-07053-14×2iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

64760PANEL ASSY, DECK SIDE TRIM, LH

main64732-14110-02iGA70,MA70..LB198602-198808

MAROON,MAROON,TRIM3#

main64732-14110-03iGA70,MA70..LB198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64732-14110-04iGA70,MA70..LB198602-198808

BLUE,DEEP BLUE,TRIM8#

main64732-14110-05iGA70,MA70..LB198602-198701

BEIGE,DARK BEIGE,TRIM4#

main64732-14120-02iGA70,MA70..AET198606-198808

MAROON,MAROON,TRIM3#

main64732-14120-03iGA70,MA70..AET198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64732-14120-04iGA70,MA70..AET198606-198808

BLUE,DEEP BLUE,TRIM8#

main64732-14120-05iGA70,MA70..AET198606-198701

BEIGE,DARK BEIGE,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-14060iGA70,MA70198602-198808

64778DPROTECTOR, SPARE WHEEL

main64778-14020×3iGA70,MA70198602-198808

64910HRETRACTOR SUB-ASSY, TONNEAU COVER

main64901-14040-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64901-14040-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64901-14040-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64901-14040-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

64926AHOOK, TONNEAU

main64926-14030-02×2iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main64926-14030-03×2iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main64926-14030-04×2iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main64926-14030-05×2iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

9016840055

main90168-40055

9018304031

main90183-04031

9018305016

main90183-05016

9018904057

main90189-04057

9046710012

main90467-10012

9353054025

main93530-54025

9354044016

main93540-44016

9356055025

main93560-55025

9356614512

main93566-14512

28 parts on this diagram · 1 diagram in section
