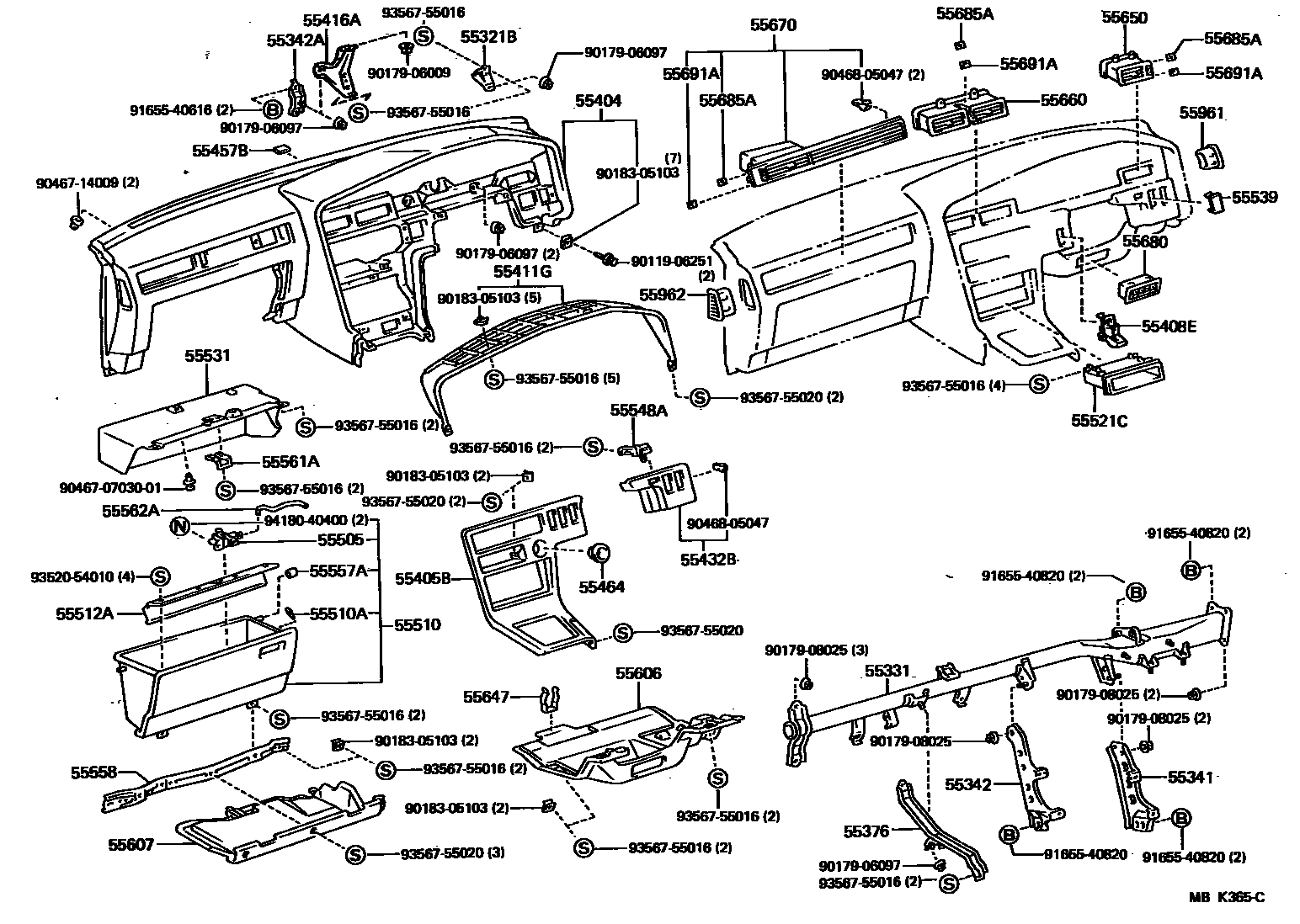

INSTRUMENT PANEL & GLOVE COMPARTMENT

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-14050iGA70,MA70198602-198808

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14040iGA70,MA70198602-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14060iGA70,MA70198602-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14130iGA70,MA70198602-198808

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-14040iGA70,MA70198602-198808

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-14030iGA70,MA70198602-198808

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14480-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55401-14480-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55401-14480-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55401-14480-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-14080iGA70,MA70198602-198808

55408EBOX SUB-ASSY, INSTRUMENT PANEL COIN

main55408-14090iGA70,MA70198701-198808

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-14530iGA70,MA70198602-198808

55416ARETAINER, METER HOOD, NO.1

main55416-14060iGA70,MA70198602-198808

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-14190iGA70,MA70..GT,GTL,GTT198602-198808

W/DIGITAL METER

main55432-14200iGA70198602-198808

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×3iGA70,MA70198602-198808

55464BASE, CIGARETTE LIGHTER

main55477-24020iGA70,MA70198602-198808

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-14030iGA70,MA70198602-198808

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14160-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55550-14160-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55550-14160-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55550-14160-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iGA70,MA70198602-198808

55512APLATE, GLOVE COMPARTMENT

main55512-14060iGA70,MA70198602-198808

55521CCOVER, STEREO OPENING

main55521-16010iGA70198602-198808

55531PANEL, GLOVE COMPARTMENT

main55531-14100iGA70,MA70198602-198808

55539COVER, SPARE SWITCH HOLE

main55539-14040iGA70198602-198808

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-14030iGA70,MA70198602-198808

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iGA70,MA70198602-198808

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-14020iGA70,MA70198602-198805

main55558-14021iGA70,MA70198805-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-14060iGA70,MA70198602-198808

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-14030iGA70,MA70198602-198808

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14060-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55606-14060-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55606-14060-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55606-14060-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14090-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55607-14090-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55607-14090-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55607-14090-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGA70,MA70198602-198808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14110iGA70,MA70198602-198808

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14110iGA70,MA70198602-198808

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14050-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55670-14050-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55670-14050-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55670-14050-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55680-14030-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55680-14030-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55680-14030-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55685APLATE, AIR DAMPER CONTROL NAME, NO.4

main55685-14010×3iGA70,MA70198602-198808

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55691-14010×3iGA70,MA70198602-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14070-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55961-14070-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55961-14070-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55961-14070-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14050-02iGA70,MA70198602-198808

MAROON,MAROON,TRIM3#

main55962-14050-03iGA70,MA70198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main55962-14050-04iGA70,MA70198602-198808

BLUE,DEEP BLUE,TRIM8#

main55962-14050-05iGA70,MA70198602-198701

BEIGE,DARK BEIGE,TRIM4#

9011906251

main90119-06251

9017906009

main90179-06009

9017906097

main90179-06097

9017908025

main90179-08025

9018305103

main90183-05103

904670703001

main90467-0703001

9046714009

main90467-14009

9046805047

main90468-05047

9165540616

main91655-40616

9165540820

main91655-40820

9352054010

main93520-54010

9356755016

main93567-55016

9356755020

main93567-55020

9418040400

main94180-40400

51 parts on this diagram · 1 diagram in section
