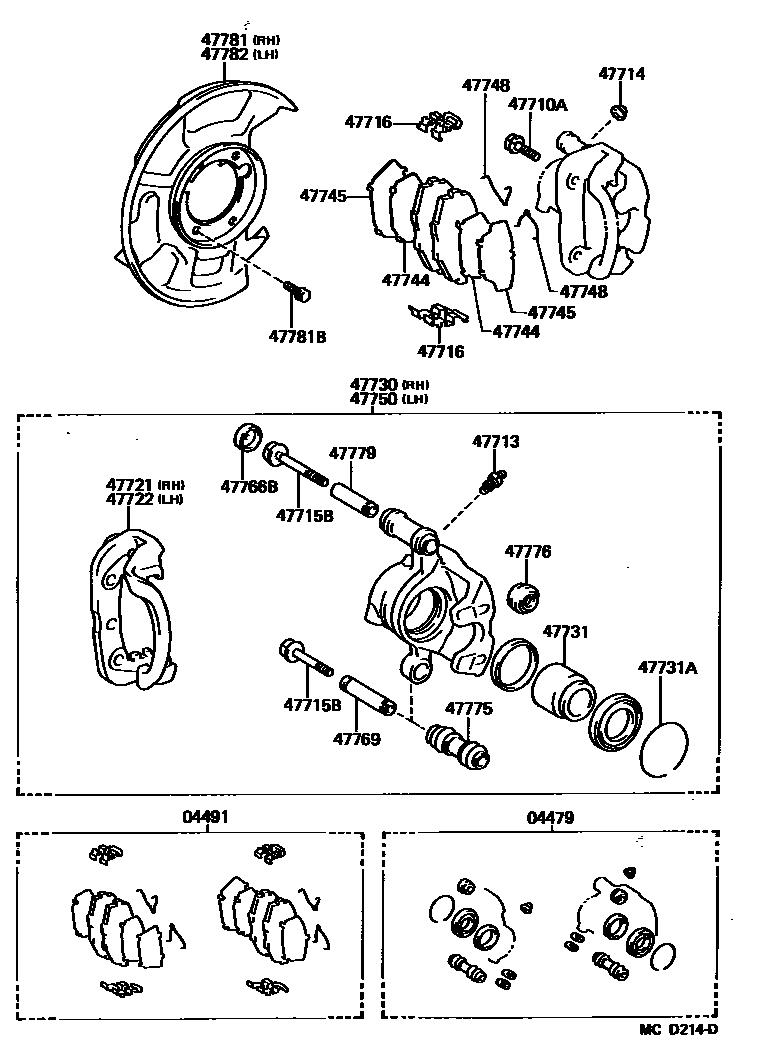

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14100iGA70,MA70198602-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-14200iGA70,MA70..GT,GTL,GTT198602-198706

main04491-14201iGA70,MA70..GT,GTL,GTT198706-198803

main04491-14220iGA70..G,S198602-198706

main04491-14221iGA70..G,S198706-198803

main04491-14240iGA70,MA70..GT,GTL,GTT198803-198808

main04491-14250iGA70..G,S198803-198808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058×4iGA70,MA70198602-198808

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iGA70,MA70198602-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGA70,MA70198602-198808

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-10141×2iGA70,MA70198602-198808

UPR

main90119-10403×2iGA70,MA70198602-198808

LWR

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14110×4iGA70..G,S198602-198808

main47716-14120×4iGA70,MA70..GT,GTL,GTT198602-198808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14090iGA70..G,S198602-198808

main47721-14100iGA70,MA70..GT,GTL,GTT198602-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-14090iGA70..G,S198602-198808

main47721-14100iGA70,MA70..GT,GTL,GTT198602-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14160iGA70..G,S198602-198808

main47730-14170iGA70,MA70..GT,GTL,GTT198602-198808

47731PISTON, FRONT DISC BRAKE

main47731-28020×2iGA70,MA70198602-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001×2iGA70,MA70198602-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14100×4iGA70,MA70198602-198706

main47744-14120×4iGA70,MA70198706-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14030×2iGA70,MA70198602-198706

main47745-14050×4iGA70,MA70198706-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14070×4iGA70,MA70198602-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-14180iGA70..G,S198602-198808

main47750-14190iGA70,MA70..GT,GTL,GTT198602-198808

47766BCAP, CYLINDER SLIDE PIN

main47766-14010×2iGA70,MA70198602-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020×2iGA70,MA70198602-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020×2iGA70,MA70198602-198808

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14020×2iGA70,MA70198602-198703

main47776-20010×2iGA70,MA70198703-198808

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-14020×2iGA70,MA70198602-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-14100iGA70,MA70198602-198808

47781BBOLT(FOR DUST COVER SETTING)

main90119-08571×8iGA70,MA70198602-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-14100iGA70,MA70198602-198808

24 parts on this diagram · 2 diagrams in section
