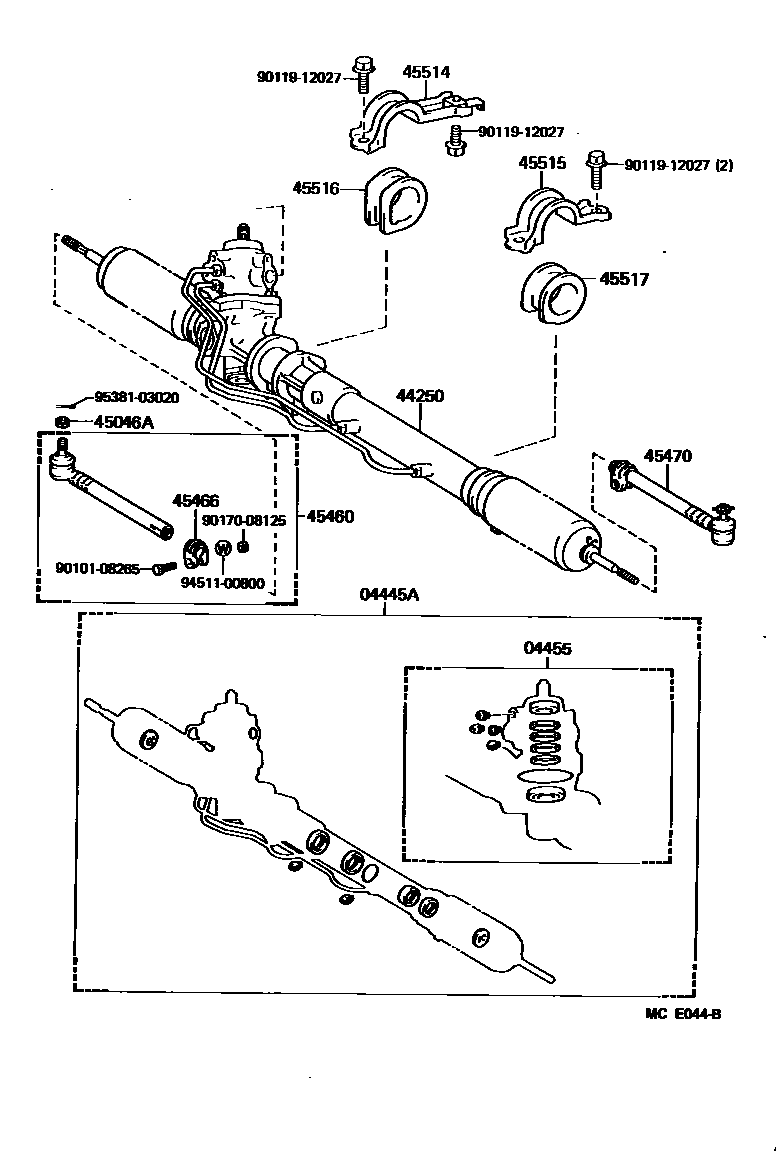

FRONT STEERING GEAR & LINK

0001 1 0003 1 0005 1 0006 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iGA70,MA70198602-198701

main04445-24020iMA70198701-198808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iGA70,MA70198602-198701

main04455-24020iMA70198701-198808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14080iGA70,MA70198602-198701

main44250-14150iMA70198701-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iGA70,MA70198602-198808

45460ROD ASSY, TIE, RH

main45460-19225iGA70,MA70198602-198808

45466CLAMP, TIE ROD END

main45466-22010×2iGA70,MA70198602-198808

45470ROD ASSY, TIE, LH

main45460-19225iGA70,MA70198602-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-14050iGA70,MA70198602-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-14070iGA70,MA70198602-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-14010iGA70,MA70198602-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14030iGA70,MA70198602-198701

main45517-24020iMA70198701-198808

9010108265

main90101-08265

9011912027

main90119-12027

9017008125

main90170-08125

9451100800

main94511-00800

9538103020

main95381-03020

16 parts on this diagram · 4 diagrams in section
