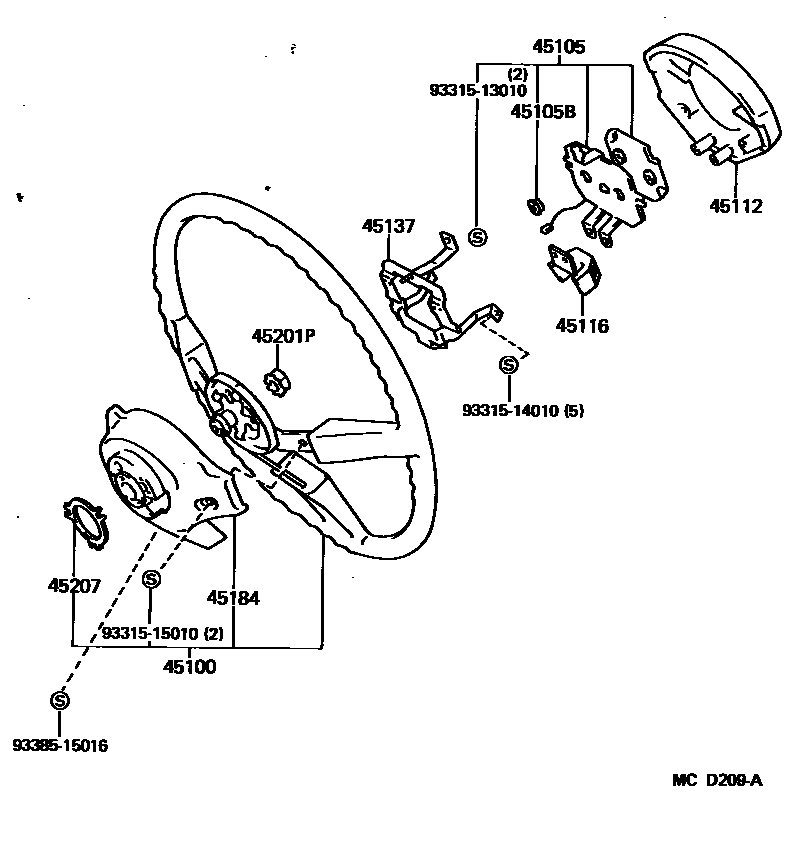

STEERING WHEEL
45100WHEEL ASSY, STEERING
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
W/AUTO DRIVE,MAROON,MAROON,TRIM3#
W/AUTO DRIVE,GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45112PAD, STEERING WHEEL
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
45116ORNAMENT, STEERING WHEEL, NO.1
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
45137PLATE, HORN BUTTON STOP
45184COVER, STEERING WHEEL BOSS, LOWER
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAR00N,MAROON,TRIM3#
W/AUTO DRIVE,GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9331513010
main93315-13010
9331514010
main93315-14010
9331515010
main93315-15010
9338515016
main93385-15016
13 parts on this diagram · 2 diagrams in section
