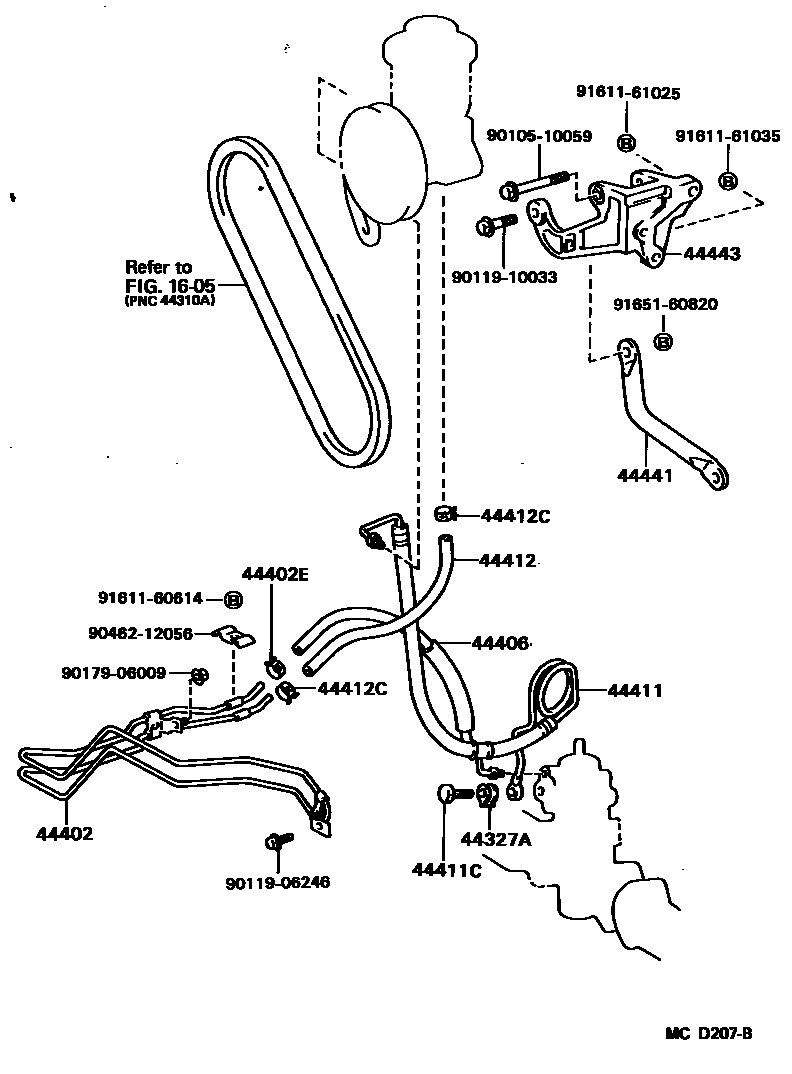

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iGA70; MA70198602-198808

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14150iGA70,MA70198602-198701

main44402-14160iMA70198701-198808

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-26001×2iGA70..G,S198602-198712

main90467-21005×2iGA70..G,S198712-198808

44406TUBE SUB-ASSY, RETURN

main44406-14050iGA70,MA70198602-198701

main44406-24030iMA70198701-198808

44411HOSE, PRESSURE FEED

main44411-14170iGA70..G,S198602-198808

main44411-14180iGA70..GT198602-198808

main44411-14190iMA70198602-198701

main44411-14200iGA70..GTT198602-198808

main44411-24060iMA70198701-198808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008×2iMA70198602-198701

main90401-16013iMA70198701-198703

44412HOSE, RETURN

main44412-14190iGA70..G,S198602-198808

main44412-14200iGA70..GT,GTT198602-198808

main44412-14220iMA70198602-198808

44412CCLAMP(FOR RETURN HOSE)

main90467-16008×3iGA70,MA70198602-198808

44441BRACKET, PUMP, FRONT

main44441-30050iGA70..G,S198602-198808

44443BRACKET, PUMP

main44443-14010iMA70198602-198808

main44443-22050iGA70..GT,GTT198602-198808

main44443-30091iGA70..G,S198602-198808

9010510059

main90105-10059

9011906246

main90119-06246

9011910033

main90119-10033

9017906009

main90179-06009

9046212056

main90462-12056

9161160614

main91611-60614

9161161025

main91611-61025

9161161035

main91611-61035

9165160820

main91651-60820

20 parts on this diagram · 3 diagrams in section
