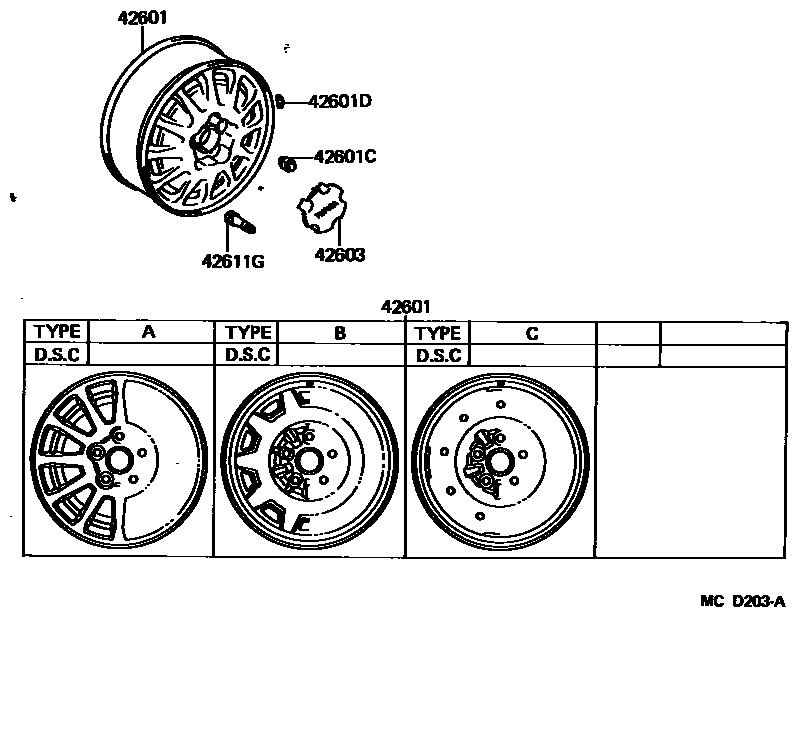

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-14550×4iGA70,MA70..G,GT,GTT198602-198808

main42611-14560×4iGA70..S198602-198808

TYPE B.

main42611-14570iGA70,MA70198602-198808

main42611-14620×2iMA70..GTL198701-198808

main42611-14630×2iMA70..GTL198701-198808

main42611-14640×4iGA70..GTT198801-198802

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iGA70..S198602-198808

main90942-01033×20iGA70,MA70..G,GT,GTT198602-198808

W/ALUMI WHEEL

main90942-01050×20iMA70..GTL198701-198808

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iGA70..S198602-198808

main90942-03020iGA70..S198602-198808

main90942-03022iGA70..S198602-198808

main90942-03025iGA70..S198602-198808

main90942-03027iGA70..S198602-198808

main90942-03029iGA70..S198602-198808

main90942-03031iGA70..S198602-198808

main90942-03041iGA70..S198602-198808

main90942-03098iGA70..S198602-198808

main90942-03099iGA70..S198602-198808

main90942-03100iGA70..S198602-198808

main90942-03101iGA70..S198602-198808

main90942-03102iGA70..S198602-198808

main90942-03108iGA70..S198602-198808

main90942-03109iGA70..S198602-198808

main90942-03146iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03147iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03148iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03149iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03150iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03151iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03152iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03153iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03154iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03155iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03156iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03157iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03158iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03159iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03160iGA70,MA70..G,GT,GTL,GTT198602-198808

main90942-03161iGA70..S198708-198808

main90942-03167iGA70,MA70..G,GT,GTL,GTT198708-198808

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14130×4iGA70..S198602-198808

main42603-14200×4iGA70,MA70..G,GT,GTT198602-198808

W/ALUMI WHEEL

main42603-14220×4iMA70..GTL198701-198808

main42603-14230×4iGA70..GTT198801-198802

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iMA70..GTL198701-198808

main90942-05009×5iGA70,MA70..G,GT,GTT,S198602-198808

5 parts on this diagram · 1 diagram in section
