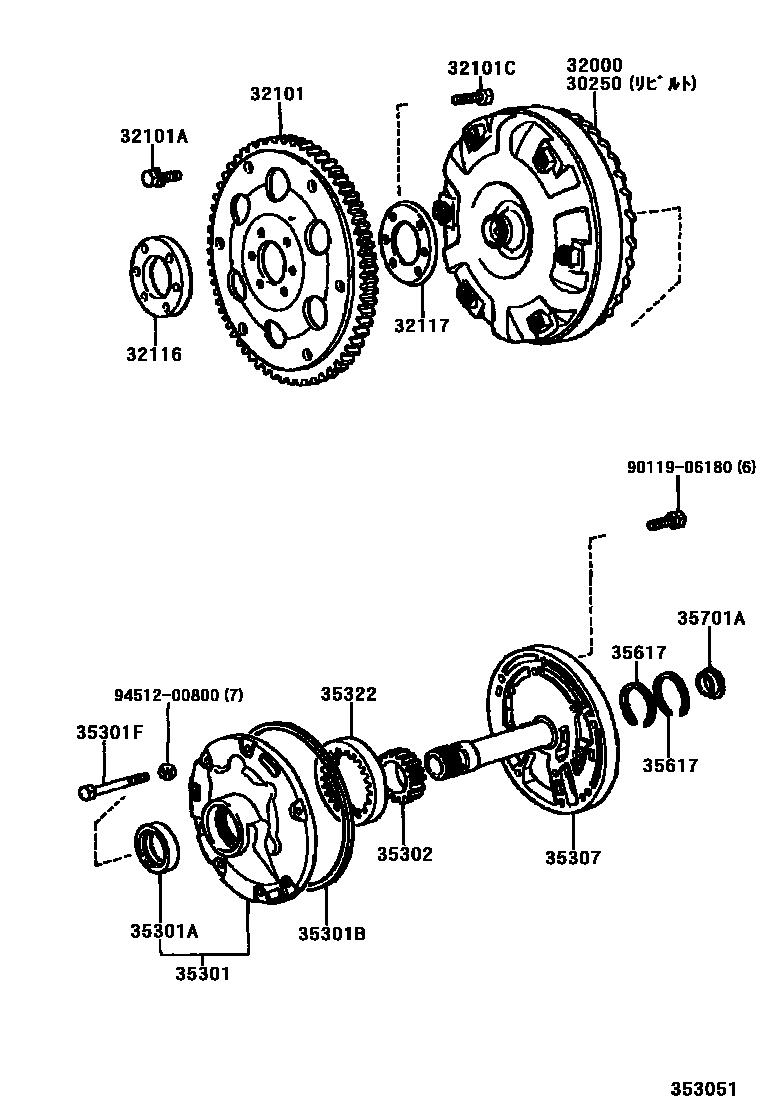

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-14120iMA70..4FC198602-198808

main30250-24011iGA70..4FC..(G,GT,S)198602-198808

main30250-24030iGA70..4FC..GTT198602-198808

32000CONVERTER ASSY, TORQUE

main32000-14120iMA70..4FC198602-198808

main32000-24011iGA70..4FC..(G,GT,S)198602-198808

main32000-24030iGA70..4FC..GTT198602-198808

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14051iMA70..4FC198602-198808

main32101-22030iGA70..4FC..(G,GT,S)198602-198808

main32101-24011iGA70..4FC..GTT198602-198808

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iGA70..4FC..(G,GT,S)198602-198808

main90119-08498×5iGA70..4FC..(G,GT,S)198602-198808

main90119-09009×5iGA70,MA70..4FC..(GTL,GTT)198602-198808

main90119-09010iGA70,MA70..4FC..(GTL,GTT)198602-198808

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iGA70..4FC198602-198808

main90109-10037×6iMA70..4FC198602-198808

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGA70..4FC198602-198808

main32116-30011iMA70..4FC198602-198808

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGA70..4FC198602-198808

main32117-30011iMA70..4FC198602-198808

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGA70..4FC..(G,GT,S)198602-198808

main35301-30040iGA70,MA70..4FC..(GTL,GTT)198602-198808

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGA70..4FC..(G,GT,S)198602-198808

main90311-38029iGA70,MA70..4FC..(GTL,GTT)198602-198808

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGA70..4FC..(G,GT,S)198602-198808

main90301-99033iGA70,MA70..4FC..(GTL,GTT)198602-198808

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042×7iGA70..4FC..(G,GT,S)198602-198605

main90105-08091iGA70,MA70..4FC..(GTL,GTT)198602-198808

main90105-08137×7iGA70..4FC..(G,GT,S)198605-198808

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGA70..4FC..(G,GT,S)198602-198808

35307SHAFT SUB-ASSY, STATOR

main35370-14012iGA70..4FC..(G,GT,S)198602-198808

main35370-30031iGA70,MA70..4FC..(GTL,GTT)198602-198808

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGA70..4FC..(G,GT,S)198602-198808

main35322-32020iGA70,MA70..4FC..GTT198602-198610

main35322-32050iGA70,MA70..4FC..(GTL,GTT)198610-198808

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iGA70..4FC..(G,GT,S)198602-198808

main35617-30020×2iGA70,MA70..4FC..(GTL,GTT)198602-198808

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iGA70..4FC..(G,GT,S)198602-198808

9011906180

main90119-06180

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
