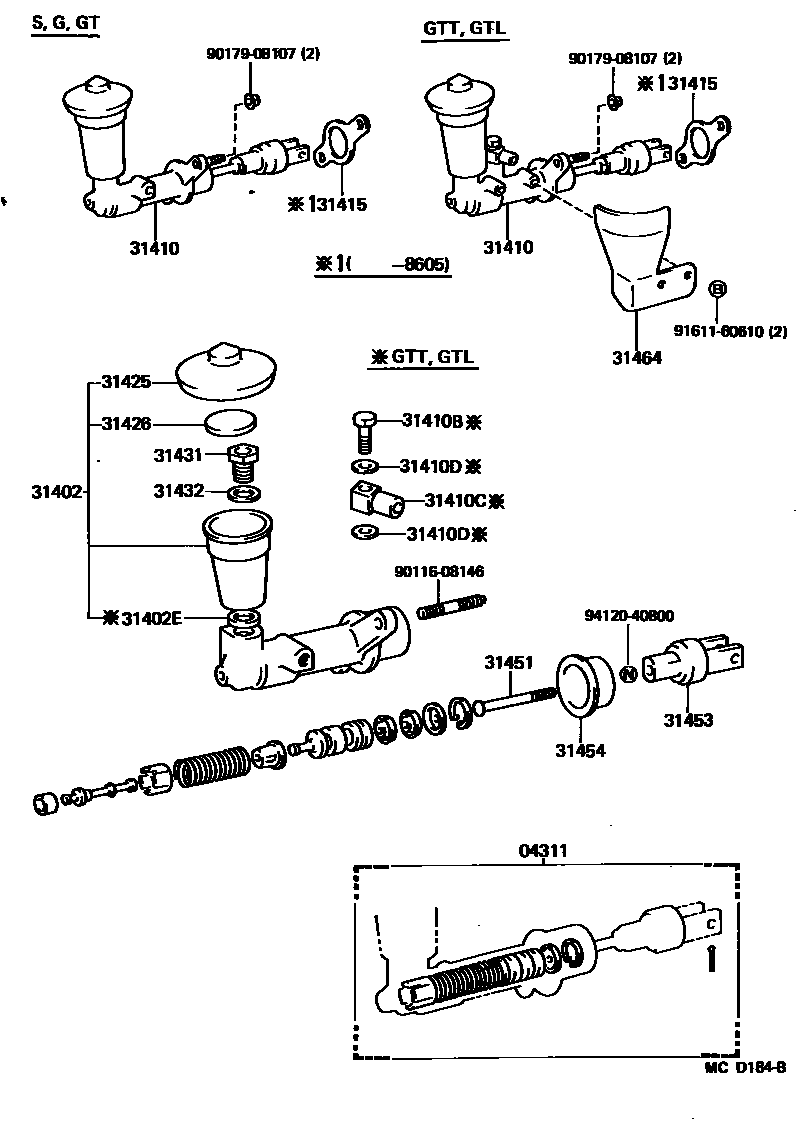

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14020iGA70..5F..(G,GT,S)198602-198612

main04311-14032iGA70,MA70..5F..(GTL,GTT)198602-198704

main04311-14040iGA70..5F..(G,GT,S)198612-198704

main04311-14041iGA70,MA70..5F198704-198808

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iGA70..5F..(G,GT,S)198602-198808

main31402-14020iGA70,MA70..5F..(GTL,GTT)198602-198808

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iGA70,MA70..5F..(GTL,GTT)198602-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14190iGA70..5F..(G,GT,S)198602-198612

main31410-14191iGA70..5F..(G,GT,S)198612-198704

main31410-14192iGA70..5F..(G,GT,S)198704-198808

main31410-14210iGA70..5F..GTT198602-198612

main31410-14211iGA70,MA70..5F..(GTL,GTT)198612-198704

main31410-14212iGA70,MA70..5F..(GTL,GTT)198704-198808

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10012iGA70,MA70..5F..(GTL,GTT)198602-198808

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10165iGA70,MA70..5F..(GTL,GTT)198602-198808

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074iGA70,MA70..5F..(GTL,GTT)198602-198808

31415GASKET, CLUTCH MASTER CYLINDER

main31415-14020iGA70..5F198602-198605

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGA70,MA70..5F198602-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGA70,MA70..5F198602-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iGA70,MA70..5F..(GTL,GTT)198602-198808

main47231-30010iGA70..5F..(G,GT,S)198602-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGA70..5F..(G,GT,S)198602-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGA70,MA70..5F198609-198808

main31451-30060iGA70..5F198602-198609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iGA70,MA70..5F198602-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iGA70,MA70..5F198602-198808

31464INSULATOR, CLUTCH MASTER CYLINDER HEAT

main31464-14010iGA70,MA70..5F..(GTL,GTT)198602-198808

9011608146

main90116-08146

9017908107

main90179-08107

9161160610

main91611-60610

9412040800

main94120-40800

20 parts on this diagram · 1 diagram in section
