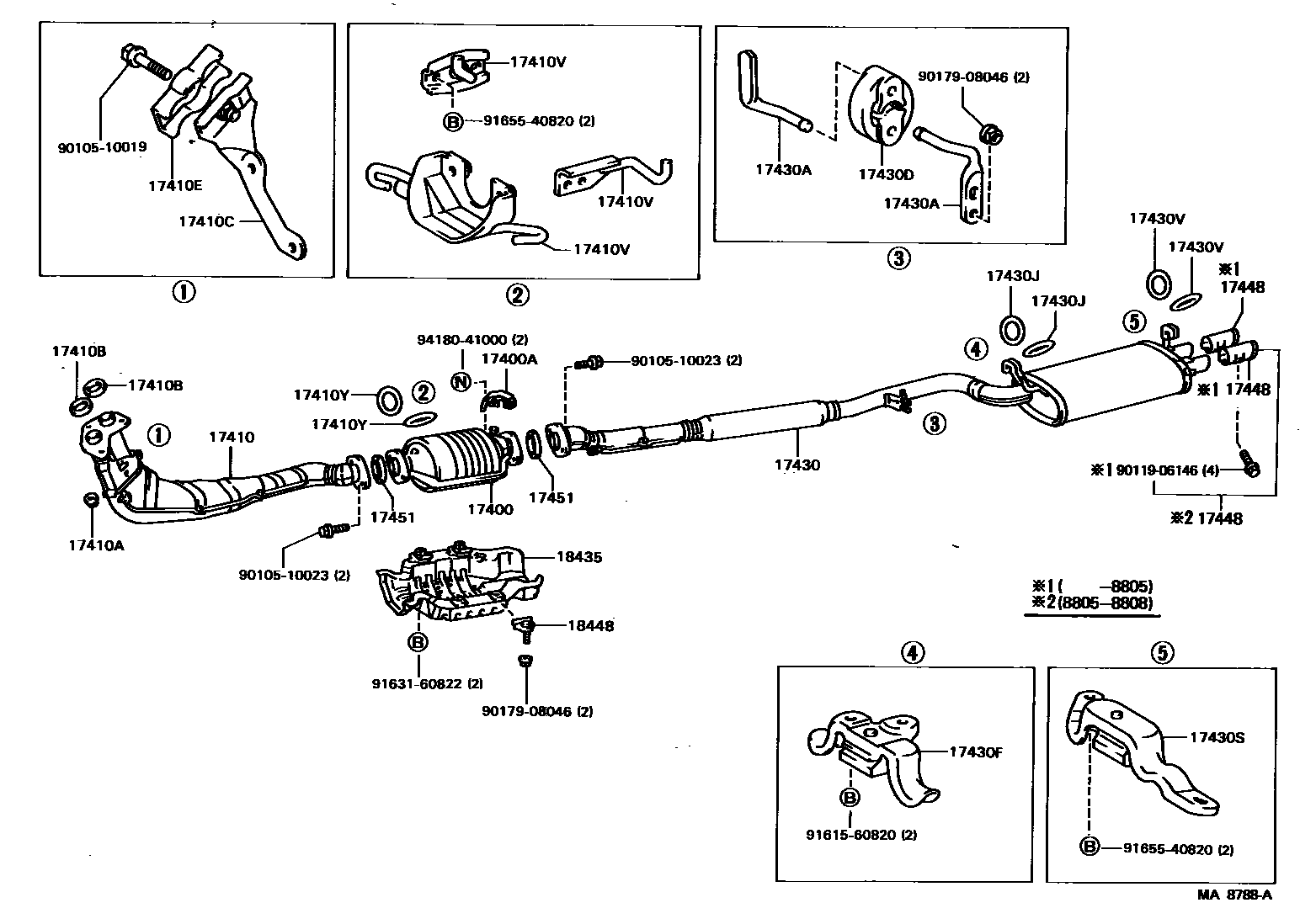

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
17400AFLANGE, THERMOSENSER INLET
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
CCO SUPPORT
CCO SUPPORT
SIDE MEMBER
ENGINE REAR MOUNTING
ENGINE REAR MOUNTING
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
LWR
UPR
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
RR
FR
FR
RR
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
9010510019
main90105-10019
9010510023
main90105-10023
9011906146
main90119-06146
9017908046
main90179-08046
9161560820
main91615-60820
9163160822
main91631-60822
9165540820
main91655-40820
9418041000
main94180-41000
28 parts on this diagram · 2 diagrams in section
