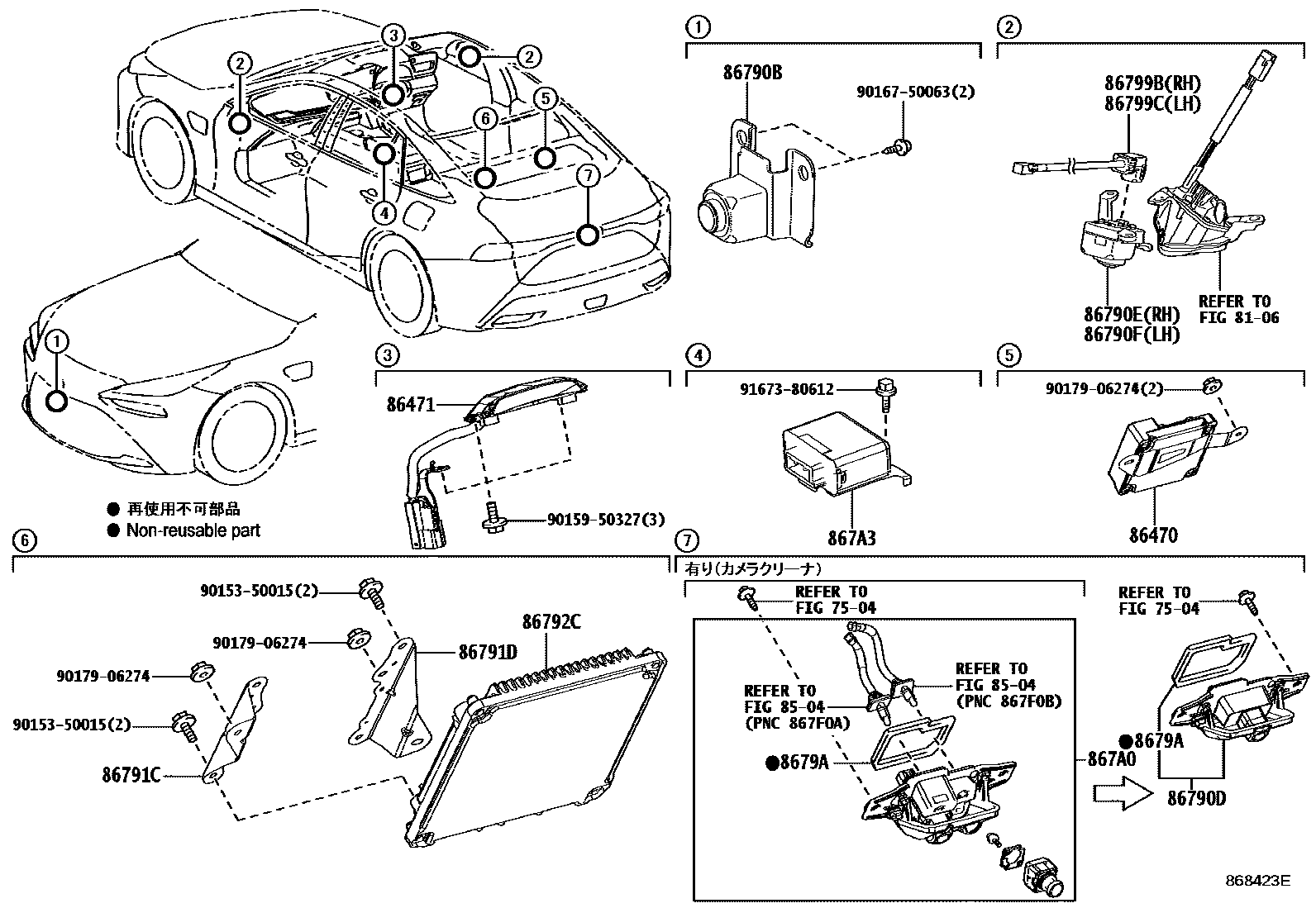

CAMERA & REAR MONITOR DISPLAY
7504
8106
8504
86470COMPUTER ASSY, DRIVER MONITOR
86471CAMERA, DRIVER MONITOR
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
86799BWIRE, TELEVISION CAMERA, RH
86799CWIRE, TELEVISION CAMERA, LH
8679ASEAL, TELEVISION CAMERA
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
867A3CIRCUIT, LIGHT PARKING ASSIST
9015350015
main90153-50015
9015950327
main90159-50327
9016750063
main90167-50063
9017906274
main90179-06274
9167380612
main91673-80612
22 parts on this diagram · 1 diagram in section
