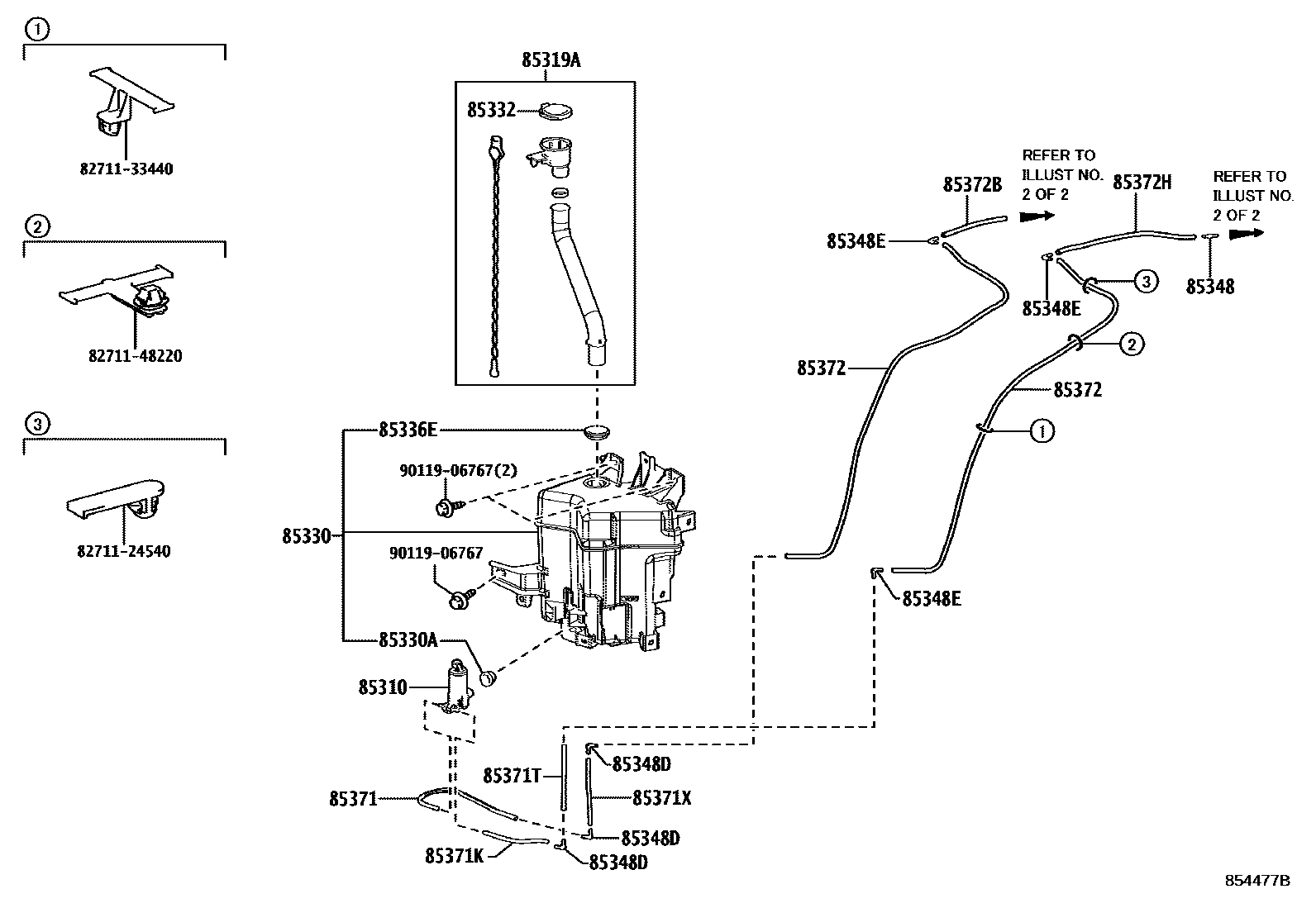

WINDSHIELD WASHER

0001 1 0002 1��(���������) 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11040iJPD20202412

85319AHOSE, INLET

main85301-62020iJPD20202312-202411

main85301-62010iJPD20..Z202412

85330JAR ASSY, WINDSHIELD WASHER

main85315-62060supersedes 85315-62040iJPD20202412

main85315-62050supersedes 85315-62060iJPD20..Z202412

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJPD20202312-202411

85332CAP, WINDSHIELD WASHER JAR

main85386-60050iJPD20202312-202411

main85316-62010iJPD20..Z202312-202411

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iJPD20202312-202411

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iJPD20202312-202411

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200×3iJPD20202312-202411

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×3iJPD20202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iJPD20; JPD20..G; JPD20..Z202312-202411

85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iJPD20; JPD20..G; JPD20..Z202312-202411

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90099-33080iJPD20; JPD20..G; JPD20..Z202312-202411

85371XHOSE, WINDSHIELD WASHER(FROM JOINT TO TOINT)

main90099-33080iJPD20; JPD20..G; JPD20..Z202312-202411

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080×2iJPD20; JPD20..G202312-202411

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iJPD20; JPD20..G202312-202411

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iJPD20; JPD20..G202011-202312

8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24540

8271133440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33440

8271148220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48220

9011906767

main90119-06767

20 parts on this diagram · 3 diagrams in section
