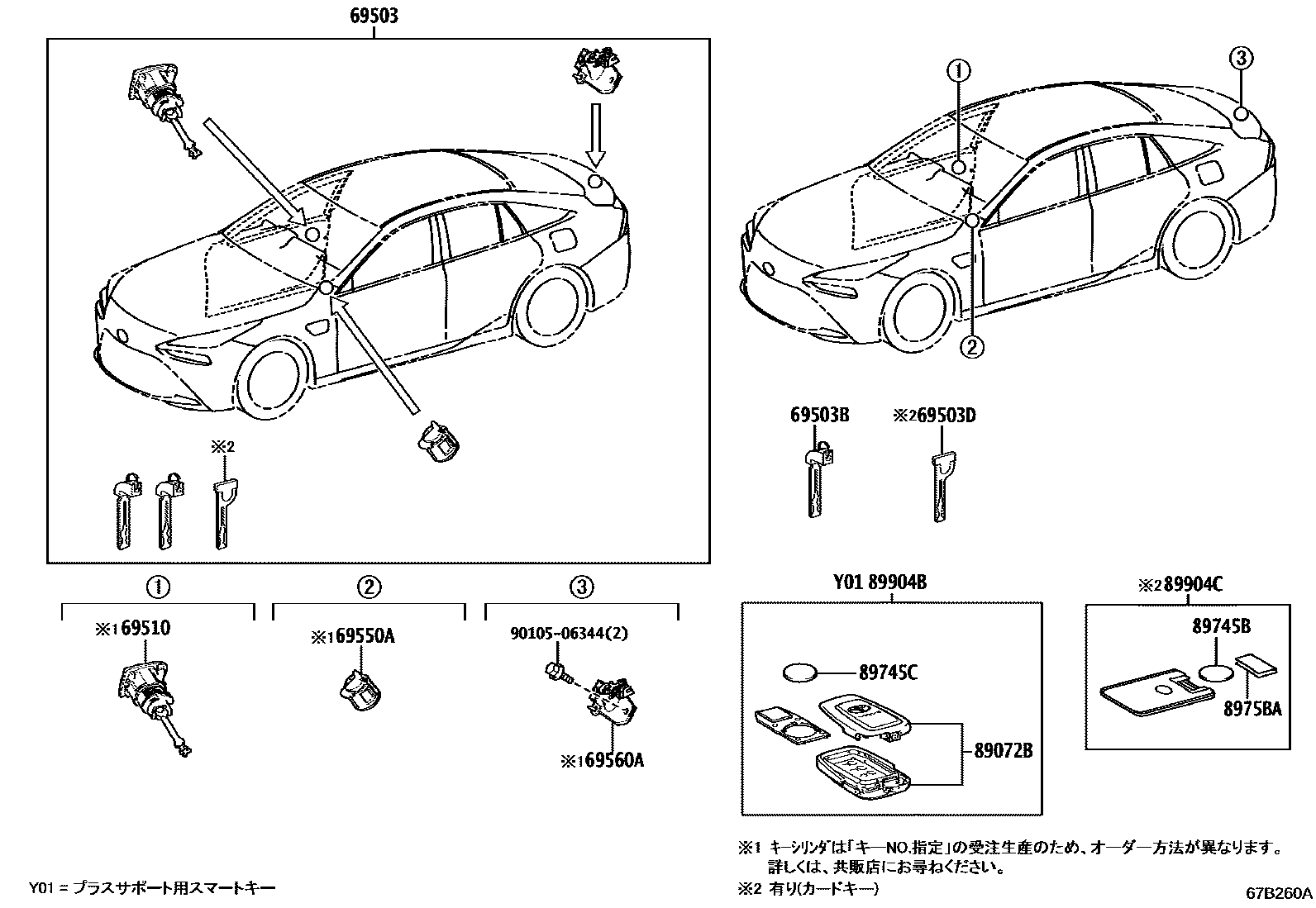

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-62110iJPD20..G202011-202312

main69005-62130iJPD20..G202412

main69005-62050supersedes 69005-62120iJPD20..Z202312-202411

69503BKEY, CUT

main69515-16100iJPD20202110-202312

main69515-47020iJPD20202011-202109

main69515-K0010iJPD20202412

69503DKEY, CUT(CARD KEY)

main69515-12270iJPD20202312-202411

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-62060iJPD20202312-202411

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iJPD20202312-202411

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-62020iJPD20202312-202411

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-62030×2iJPD20..G202011-202211

main89072-62110×2iJPD20..G202212-202312

main89072-62170×2iJPD20..G202312-202411

main89072-62120×2supersedes 89072-62180iJPD20..Z202412

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iJPD20..Z202312-202411

89745CBATTERY, TRANSMITTER

main89745-50020iJPD20202011-202312

main89745-K0010iJPD20202312-202411

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-30030supersedes 8975B-50030iJPD20..Z202412

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-62010iJPD20..G202011-202211

main8990H-62120iJPD20..G202212-202312

main8990H-62190iJPD20..G202312-202411

main8990H-62130supersedes 8990H-62200iJPD20..Z202312-202411

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-62180supersedes 8990H-62260iJPD20..Z202312-202411

9010506344

main90105-06344

13 parts on this diagram · 1 diagram in section
