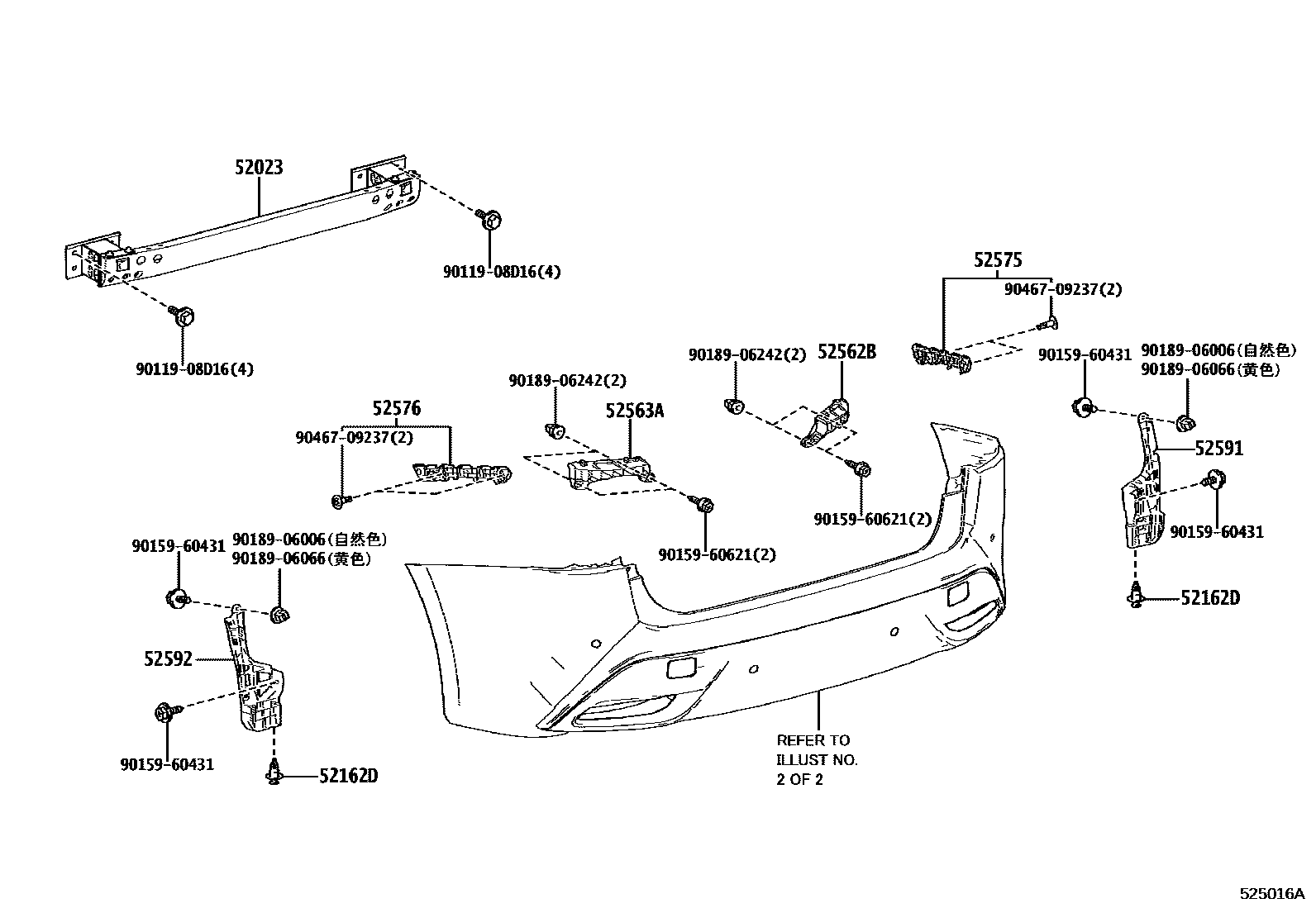

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1��(�����)

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-62040iJPD20202412

52162DPIECE, REAR BUMPER

main52161-16010×2iJPD20202312-202411

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-62010iJPD20202011-202312

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-62010iJPD20202011-202312

52575RETAINER, REAR BUMPER SIDE, RH

main52575-62020iJPD20202011-202312

52576RETAINER, REAR BUMPER SIDE, LH

main52576-62020iJPD20202011-202312

52591SEAL, REAR BUMPER SIDE, RH

main52591-62020iJPD20202011-202312

52592SEAL, REAR BUMPER SIDE, LH

main52592-62020iJPD20202412

9011908D16

main90119-08D16

9015960431

main90159-60431

9015960621

main90159-60621

9018906006

main90189-06006

9018906066

main90189-06066

9018906242

main90189-06242

9046709237

main90467-09237

15 parts on this diagram · 3 diagrams in section
