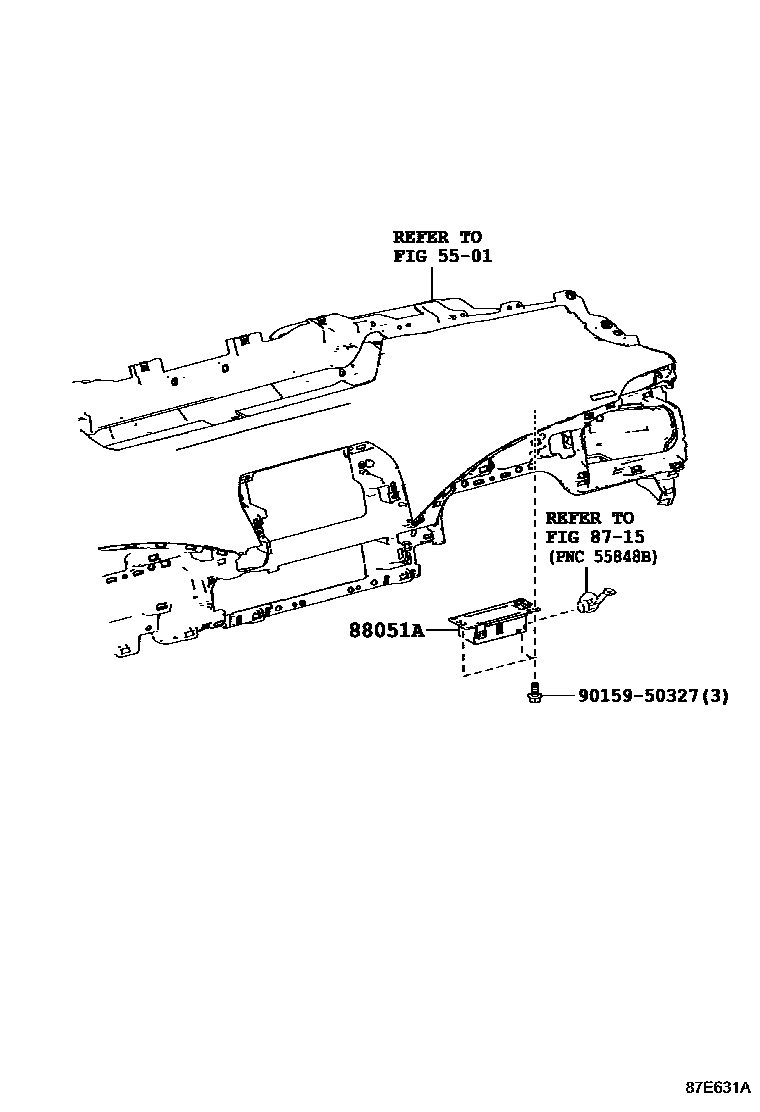

AIR PURIFIER OR ION GENERATOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88051AGENERATOR SUB-ASSY,ION

main88051-28060iJPD10201412-202005

9015950327

main90159-50327

4 parts on this diagram · 1 diagram in section
