Toyota MIRAI 28B — INTERIOR LAMP

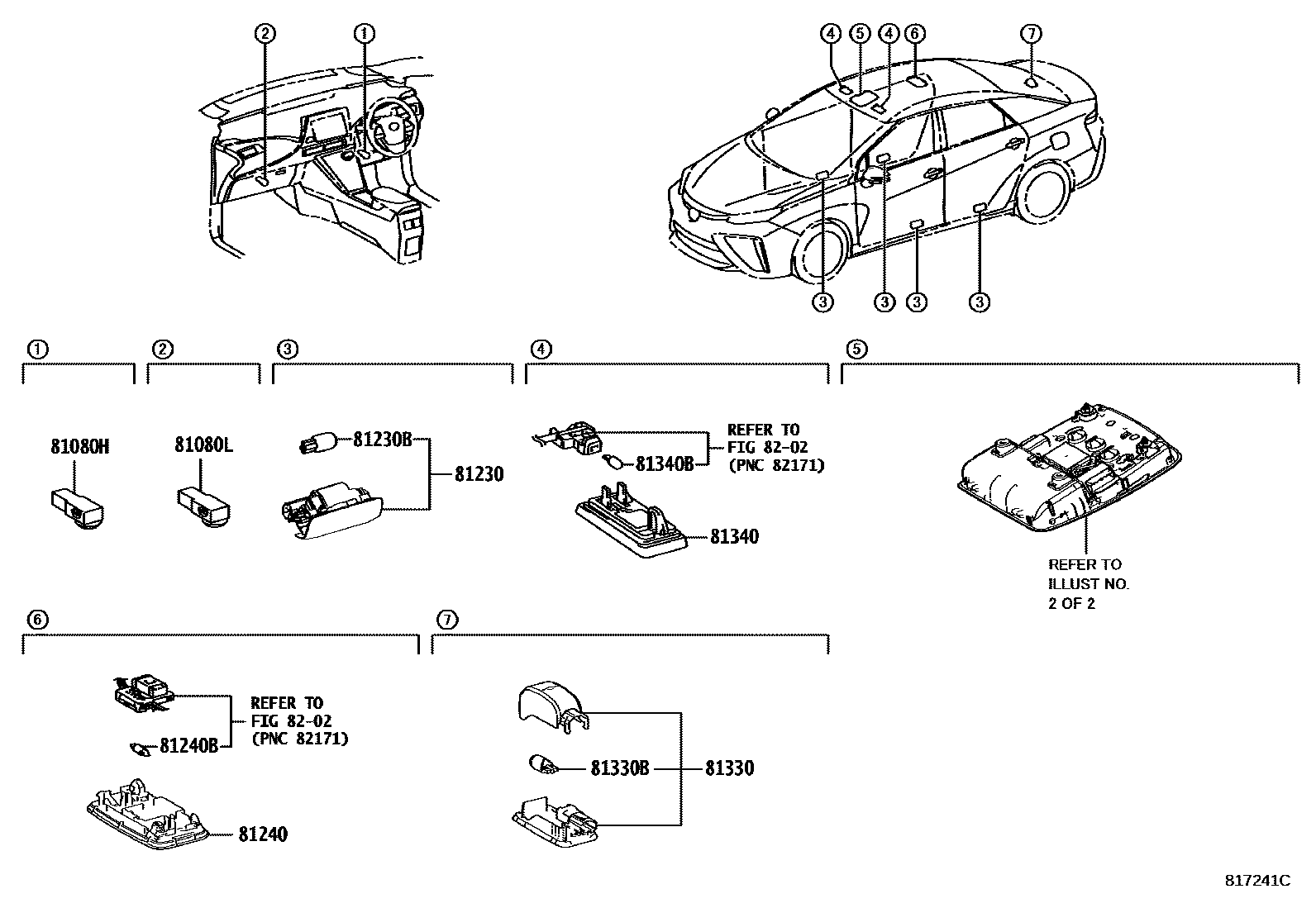

Parts diagram

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

81230LAMP ASSY, COURTESY

81230BBULB(FOR COURTESY LAMP)

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

81330BBULB, LUGGAGE COMPARTMENT LAMP

81340LAMP ASSY, VANITY

81340BBULB (FOR VANITY LAMP)

8202WIRING & CLAMP

→ Go to FIG 82-02

11 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota MIRAI 28B

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota MIRAI 28B. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP).
