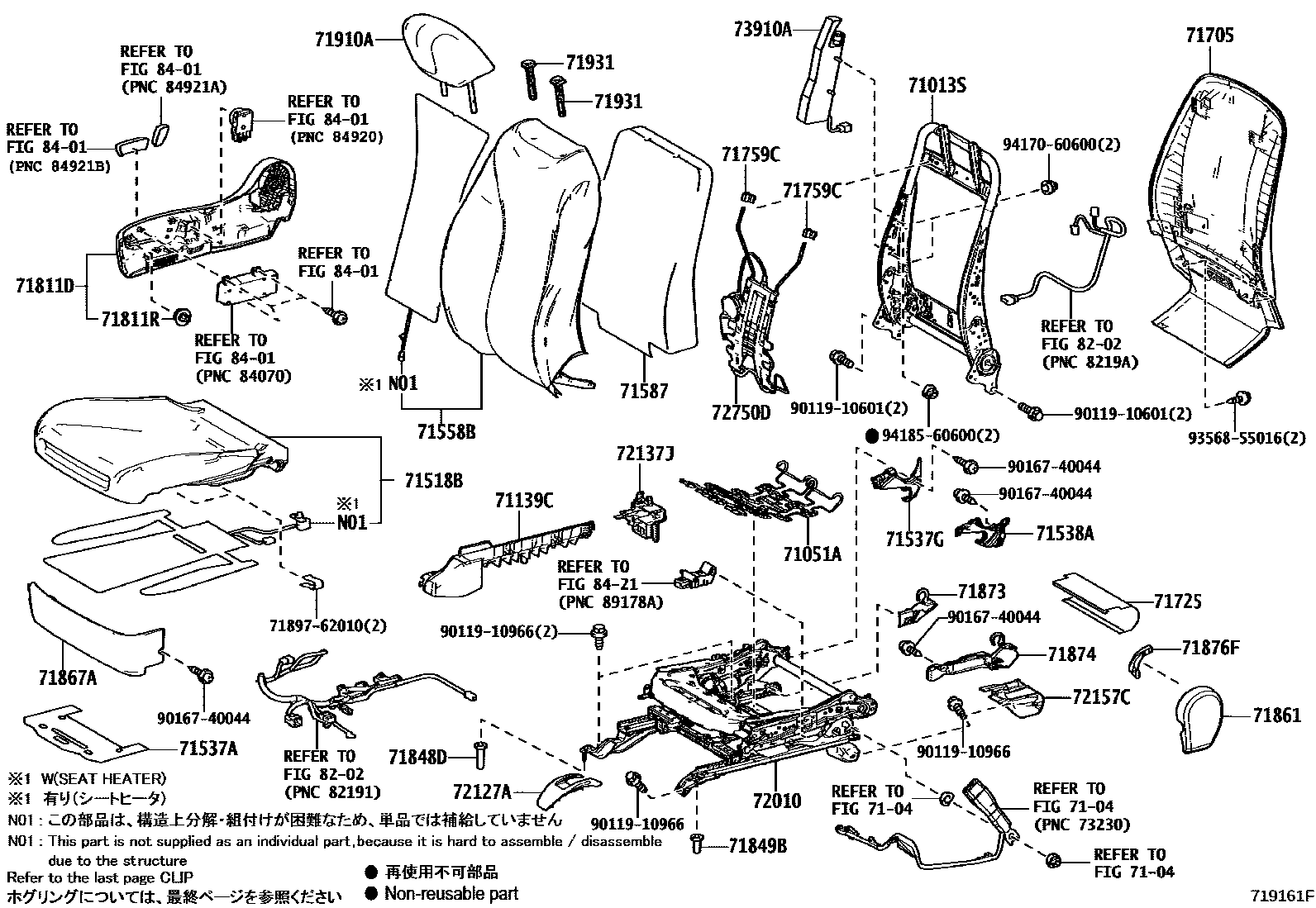

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1������� 0003 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-62010iJPD10201412-202005

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-24030iJPD10201412-202005

71139CCOVER, FRONT SEAT LEG, RH

main71139-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71101-62020-A2iJPD10201412-202005

WARM WHITE/WARM WHITE,TRIM00

main71101-62020-C1iJPD10201412-202005

BLUE BLACK/BLACK,TRIM8#

main71101-62020-J2iJPD10201412-202005

WARM WHITE/BLUE BLACK,TRIM01

71537APROTECTOR, FRONT SEAT CUSHION

main71537-62010×2iJPD10201412-202005

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-52100-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-47010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71558BPAD, FRONT SEATBACK W/COVER, RH

main71401-62020-A2iJPD10201412-202005

WARM WHITE/WARM WHITE,TRIM00

main71401-62020-C1iJPD10201412-202005

BLUE BLACK/BLACK,TRIM8#

main71401-62020-J2iJPD10201412-202005

WARM WHITE/BLUE BLACK,TRIM01

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-62010×2iJPD10201412-202005

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-62010-C0iJPD10201412-202005

BLACK,TRIM00,01,8#

main71705-62010-J1iJPD10201412-202005

BLUE BLACK,TRIM01

71725CARPET, FRONT SEAT CUSHION

main71725-62010-C1×2iJPD10201412-202005

BLACK,TRIM0#,8#

71759CHOOK, FRONT SEATBACK, NO.1

main71759-47011×2iJPD10201412-202005

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-47020iJPD10201412-202005

71848DCAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT)

main71848-12020iJPD10201412-202005

71849BCAP, SEAT ADJUSTER COVER, LH(FOR RH SEAT)

main71848-33010iJPD10201412-202005

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-53090-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-60050-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-78020iJPD10201412-202005

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-33110iJPD10201412-202005

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-60210-C0iJPD10201412-202005

BLACK,TRIM0#,8#

71910AHEADREST ASSY, FRONT SEAT

main71910-62010-A1×2iJPD10201412-202005

WARM WHITE/BLACK,TRIM00

main71910-62010-J7×2iJPD10201412-202005

BLUE BLACK/WARM WHITE,TRIM01

main71910-62010-J8×2iJPD10201412-202005

BLUE BLACK/BLUE BLACK,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-04×2iJPD10201412-202005

main71930-47020-J0×2iJPD10201412-202005

main71931-47020-04×2iJPD10201412-202005

main71931-47020-J0×2iJPD10201412-202005

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-62010iJPD10201412-202005

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

72157CCOVER, SEAT TRACK BRACKET, INNER RH

main72157-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-62010iJPD10201412-202005

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-62010iJPD10201412-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8421AIR BAG

→ Go to FIG 84-21

7189762010HOOK, SEAT COVER SIDE

main71897-62010

9011910601

main90119-10601

9011910966

main90119-10966

9016740044

main90167-40044

9356855016

main93568-55016

9417060600

main94170-60600

9418560600

main94185-60600

40 parts on this diagram · 3 diagrams in section
