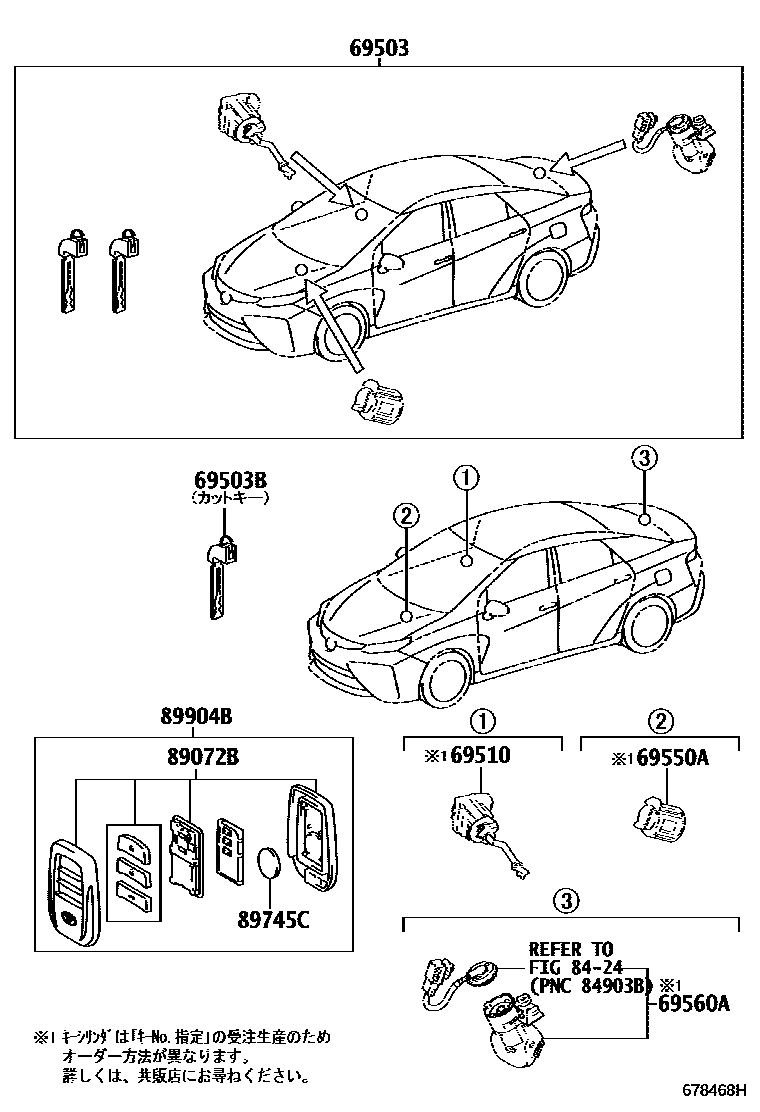

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-62010iJPD10201412-202005

69503BKEY, CUT

main69515-33110×2iJPD10201412-202005

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-62020iJPD10201412-202005

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iJPD10201412-202005

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-33340iJPD10201412-202005

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-62010×2iJPD10201412-202005

89745CBATTERY, TRANSMITTER

main89745-45010iJPD10201412-202005

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-62010×2iJPD10201412-202005

9 parts on this diagram · 1 diagram in section
