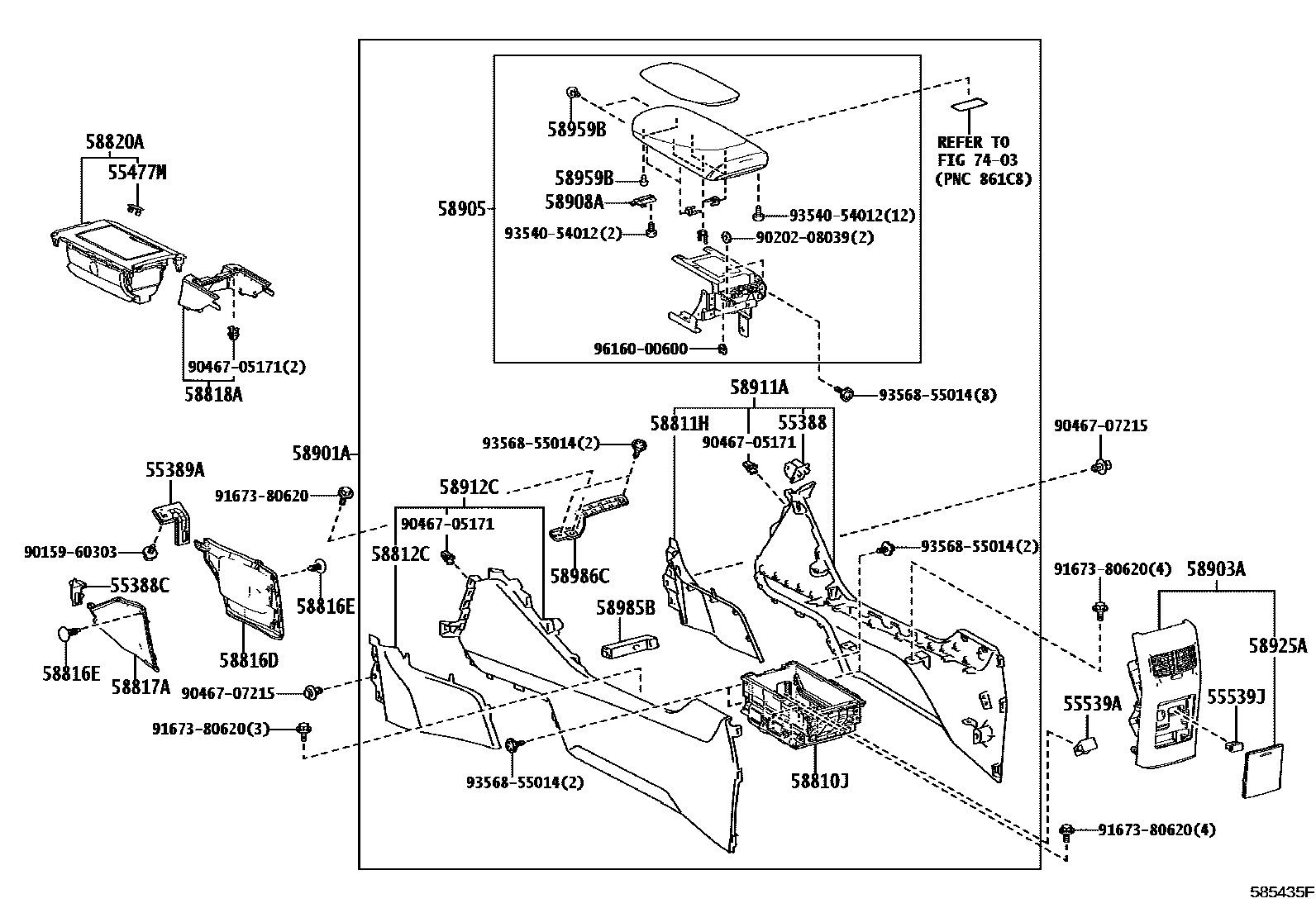

CONSOLE BOX & BRACKET
55388BRACKET, UPPER CONSOLE, MOUNTING
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55477MCOVER, CIGARETTE LIGHTER HOLE
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
58810JBOX ASSY, CONSOLE
58811HBOX, CONSOLE, RH
58812CBOX, CONSOLE, LH
58816DINSERT, CONSOLE BOX, FRONT NO.1
58817AINSERT, CONSOLE BOX, FRONT NO.2
58818ACOVER, CONSOLE BOX, FR
58901ABOX SUB-ASSY, CONSOLE, REAR
58903APANEL SUB-ASSY, CONSOLE REAR END
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58925APOCKET, CONSOLE BOX, REAR
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58985BRETAINER, CONSOLE BOX, NO.1
58986CRETAINER, CONSOLE BOX, NO.6
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9015960303
main90159-60303
9020208039
main90202-08039
9046705171
main90467-05171
9046707215
main90467-07215
9167380620
main91673-80620
9354054012
main93540-54012
9356855014
main93568-55014
9616000600
main96160-00600
33 parts on this diagram · 2 diagrams in section
