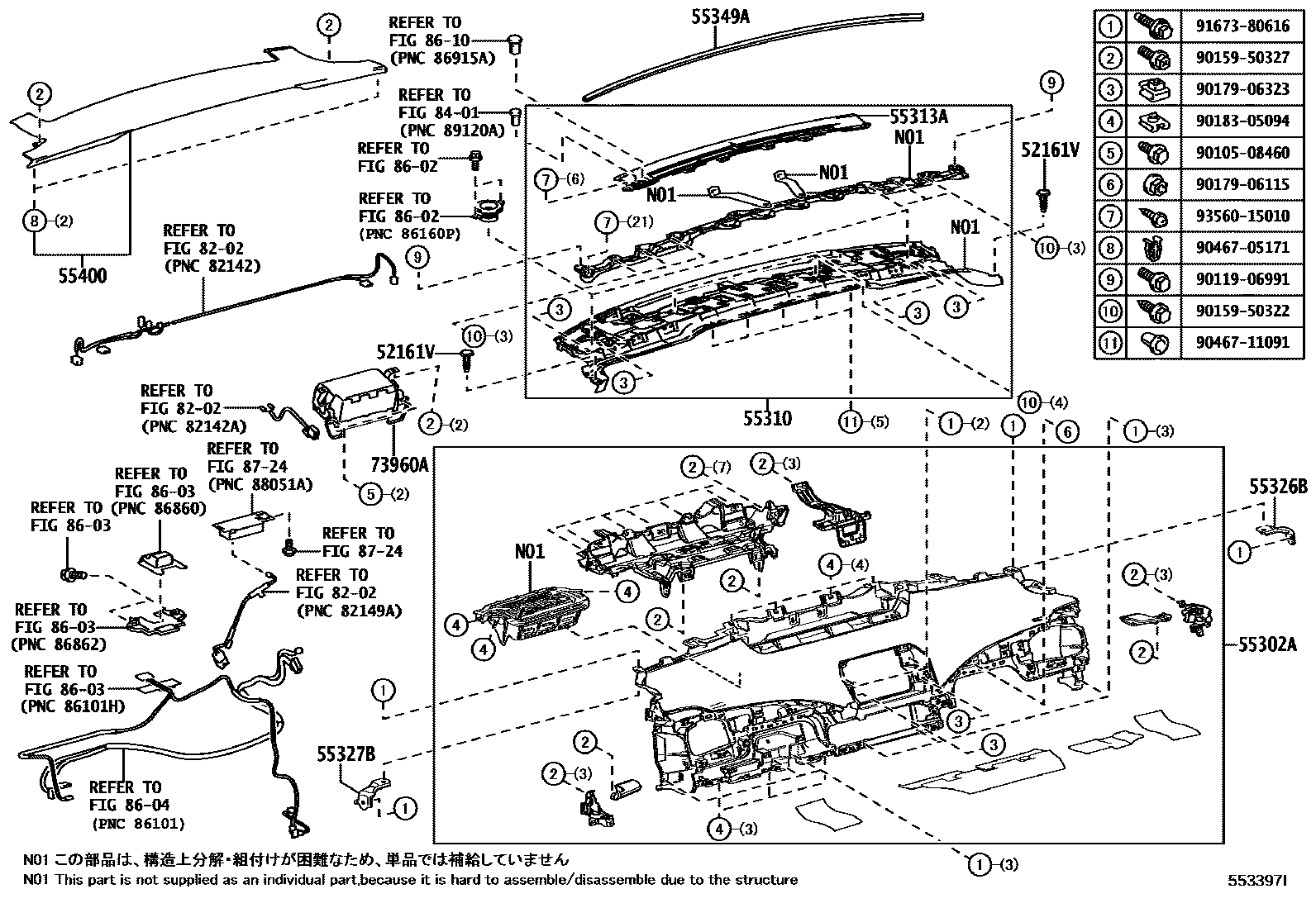

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1����� 0005 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iJPD10201412-202005

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-62060-C0iJPD10201412-201712

BLACK,TRIM0#,8#

main55302-62061-C0iJPD10201801-202005

BLACK,TRIM0#,8#

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-62030-C0iJPD10201412-202005

BLACK,TRIM0#,8#

55313APANEL, INSTRUMENT MAIN

main55313-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

55326BSTAY, INSTRUMENT PANEL, RH

main55326-62010iJPD10201412-202005

55327BSTAY, INSTRUMENT PANEL, LH

main55326-62020iJPD10201412-202005

55349ACUSHION, INSTRUMENT PANEL

main55349-62010iJPD10201412-202005

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-62010-C0iJPD10201412-202005

BLACK,TRIM0#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-62010iJPD10201412-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8604ANTENNA

→ Go to FIG 86-04

8610RADIO COMMUNICATION & ETC

→ Go to FIG 86-10

8724AIR PURIFIER OR ION GENERATOR

→ Go to FIG 87-24

9010508460

main90105-08460

9011906991

main90119-06991

9015950322

main90159-50322

9015950327

main90159-50327

9017906115

main90179-06115

9017906323

main90179-06323

9018305094

main90183-05094

9046705171

main90467-05171

9046711091

main90467-11091

9167380616

main91673-80616

9356015010

main93560-15010

27 parts on this diagram · 5 diagrams in section
