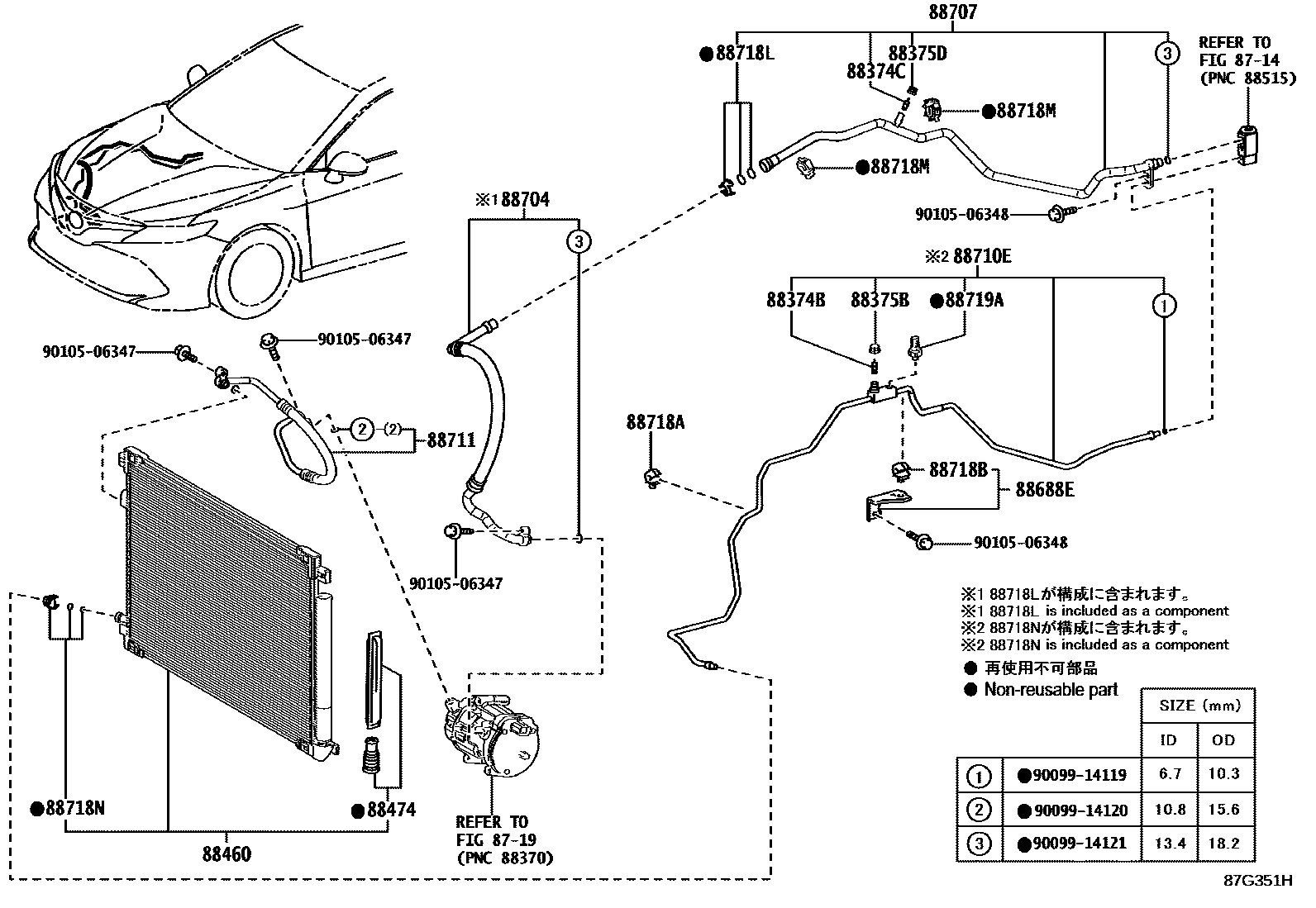

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAXVH7#202102

88374CVALVE, SERVICE, NO.2

main88374-30010iAXVH7#201706-202101

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAXVH7#201706-202101

main88375-30320iAXVH7#202102

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAXVH7#201706-202101

main88375-30310iAXVH7#202102

88460CONDENSER ASSY, COOLER

main884A0-33030iAXVH7#202102

88474DRYER, COOLER

main88474-12020iAXVH7#201706-202101

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-33610iAXVH7#201706-202101

88704HOSE SUB-ASSY, SUCTION

main88704-33630iAXVH7#201706-202101

88707PIPE SUB-ASSY, SUCTION

main88707-33110iAXVH7#202102

main88707-33180iAXVH7#201706-202101

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33500iAXVH7#201706-202101

main88710-33571iAXVH7#202102

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33340iAXVH7#202102

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-33560iAXVH7#202311

main88718-58050iAXVH7#202102-202310

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-58050iAXVH7#201706-202101

88718LCLAMP, PIPING

main88718-52280iAXVH7#201706-202101

88718MCLAMP, PIPING

main88718-33520×2iAXVH70201706-201801

main88718-42110×2iAXVH7#201802-202101

88718NCLAMP, PIPING

main88718-1E150iAXVH7#201706-202101

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXVH7#201706-202101

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

24 parts on this diagram · 1 diagram in section
