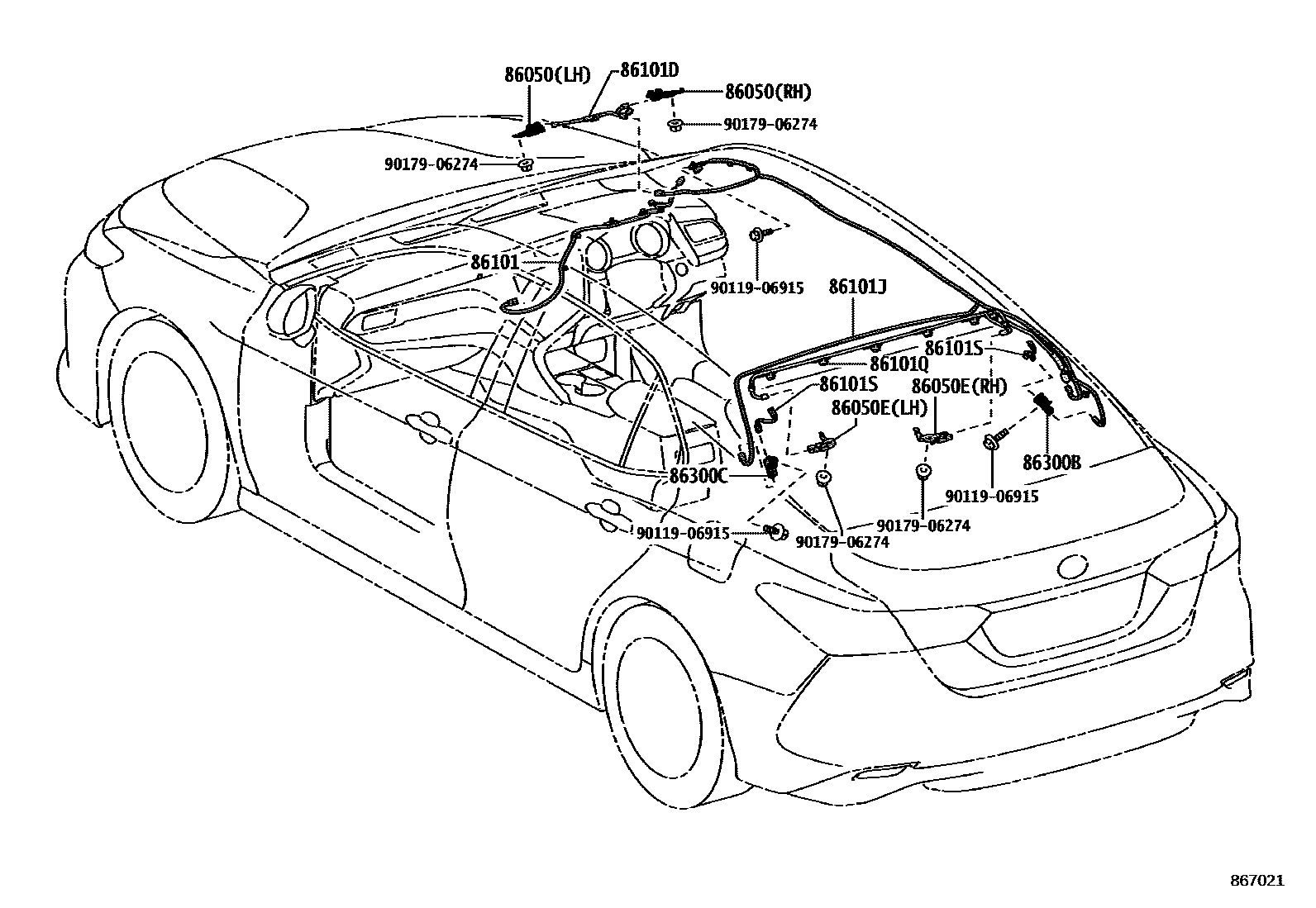

ANTENNA

0001 1 0002 1 0003 1

86050ANTENNA ASSY, TELEVISION

main86050-53180iAXVH7#202102

main86050-53190iAXVH7#202102

86050EANTENNA ASSY, TELEVISION

main86050-33180iAXVH7#202102

main86050-33190iAXVH7#201910-202101

86101CORD SUB-ASSY, ANTENNA

main86101-33K50iAXVH70; AXVH70..G201706-201910

main86101-33W10iAXVH7#; AXVH70..G201910-202101

main86101-33Y90iAXVH7#202102

main86101-33M10iAXVH70..G,WS201808-201910

main86101-33X40iAXVH7#..X202102

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-33L30iAXVH7#202102

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-33J20iAXVH70; AXVH70..G201706-201910

main86101-33V00iAXVH75201912-202101

main86101-33W00iAXVH70; AXVH70..G201910-202101

main86101-33J30iAXVH70..G,WS201706-201910

main86101-33L90iAXVH70..G,WS201706-201910

main86101-33M00iAXVH70..G,WS201706-201910

main86101-33V90iAXVH70..G,WS201910-202101

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-33L40iAXVH70..G,WS201706-201910

86101SCORD SUB-ASSY, ANTENNA

main86101-33J00iAXVH70; AXVH75; AXVH75..X202102

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-33370iAXVH70; AXVH75..X202102

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-33380iAXVH7#201706-202101

9011906915

main90119-06915

9017906274

main90179-06274

11 parts on this diagram · 3 diagrams in section
