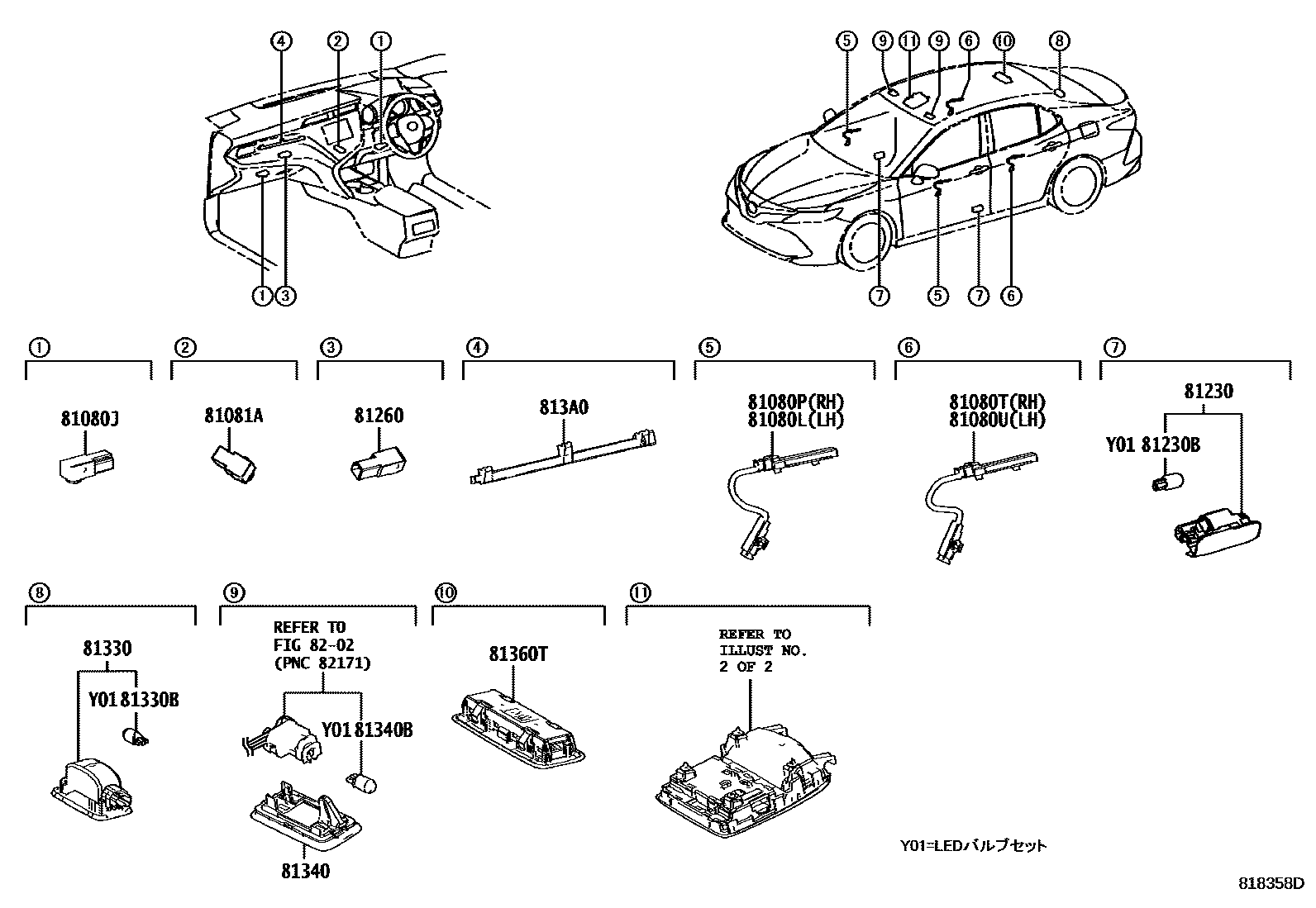

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
81360TLAMP ASSY, SPOT
GRAY,TRIM2#
GRAY,TRIM2#,3#
GRAY,TRIM2#,41
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
813A0LAMP ASSY, INSTRUMENT PANEL
8202WIRING & CLAMP
16 parts on this diagram · 3 diagrams in section
