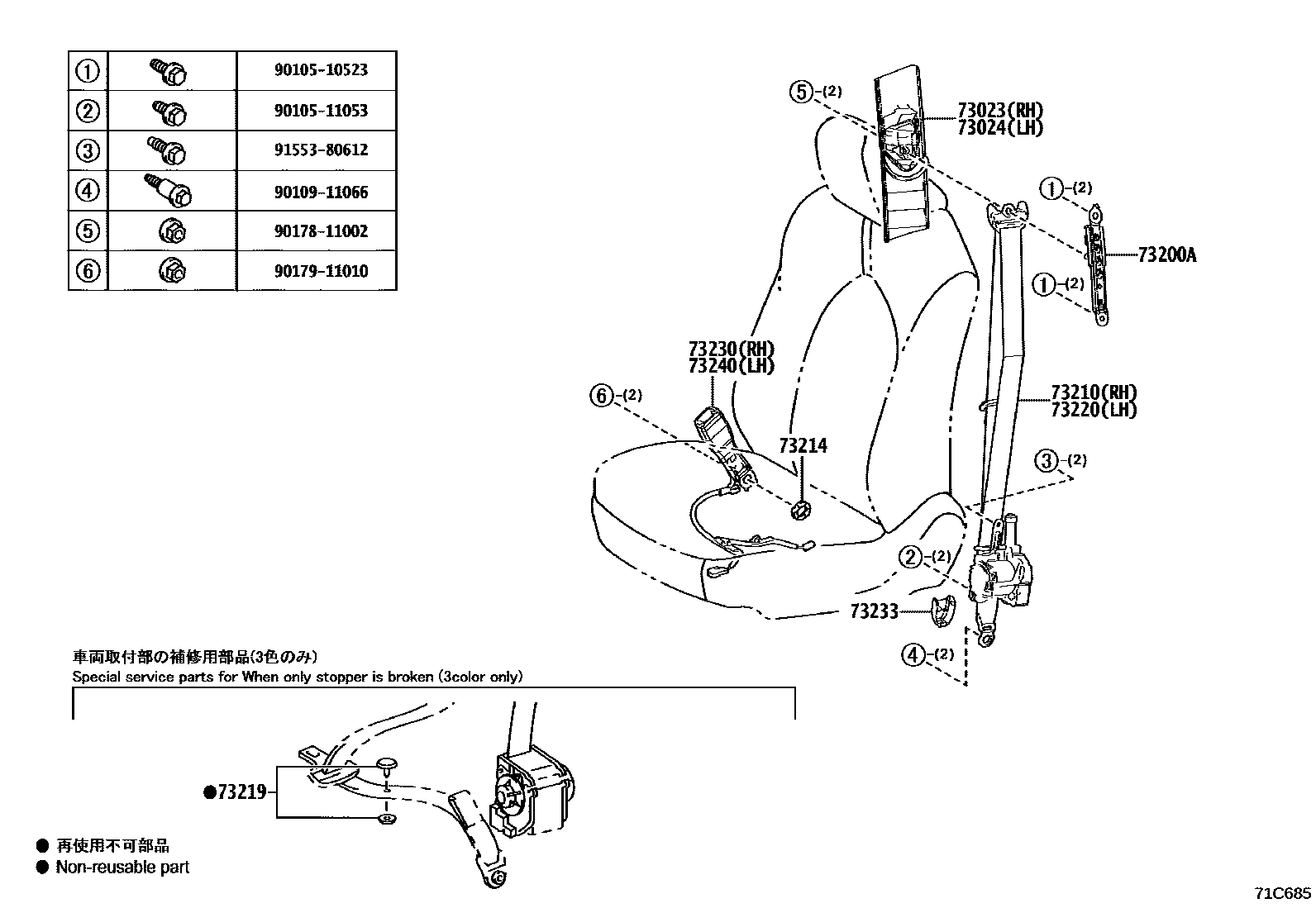

SEAT BELT & CHILD RESTRAINT SEAT

0001 1����������� 0002 1���������

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-58010-B4iAXVH7#..G,X201706-202101

GRAY,TRIM2#

main73023-58010-B4iAXVH7#..WS,X202102

GRAY,TRIM2#,41

main73023-58010-B4iAXVH7#..WS201808-202101

GRAY,TRIM2#,3#

main73023-58010-E1iAXVH7#..G201706-202101

NEUTRAL BEIGE,TRIM4#

main73023-58010-E1iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-58010-B4iAXVH7#..G201706-202101

GRAY,TRIM2#

main73024-58010-B4iAXVH7#..WS201808-202101

GRAY,TRIM2#,3#

main73024-58010-B4iAXVH7#..G202102

GRAY,TRIM2#,41

main73024-58010-E1iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

main73024-58010-E1iAXVH7#..G201706-202101

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iAXVH7#201706-202101

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47281-A2iAXVH70..G201706-201708

IVORY,TRIM4#

main73210-47281-A4iAXVH7#..G201708-202101

IVORY,TRIM4#

main73210-47281-A4iAXVH7#..G202102-202207

IVORY,TRIM40

main73210-47281-C4iAXVH70201706-201708

BLACK,TRIM2#

main73210-47281-C7iAXVH7#..WS,X202102-202207

BLACK,TRIM2#,41

main73210-47281-C7iAXVH7#..G,X201708-202207

BLACK,TRIM2#

main73210-47281-C7iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main73210-47282-C7iAXVH7#..G202208

BLACK/BLACK,TRIM2#,4#

main73210-47282-C7iAXVH7#..G202208

BLACK/BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iAXVH7#201706-202101

73219STOPPER, TONGUE PLATE

main73219-33010iAXVH7#201706-202101

main73219-33020iAXVH7#201706-202101

main73219-33030iAXVH7#201706-202101

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-A2iAXVH70..G201706-201708

IVORY,TRIM4#

main73220-47221-A4iAXVH7#..G201708-202101

IVORY,TRIM4#

main73220-47221-A4iAXVH7#..G202102-202207

IVORY,TRIM40

main73220-47221-C4iAXVH70201706-201708

BLACK,TRIM2#

main73220-47221-C7iAXVH7#..WS,X201708-202207

BLACK,TRIM2#

main73220-47221-C7iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main73220-47221-C7iAXVH7#..G202102-202207

BLACK,TRIM2#,41

main73220-47222-C7iAXVH7#..G202208

BLACK/BLACK,TRIM2#,4#

main73220-47222-C7iAXVH7#..G202208

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33870-C0iAXVH7#..G201706-202101

BLACK,TRIM2#

main73230-33870-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

main73230-33880-C0iAXVH7#..X201706-202101

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iAXVH7#..X201706-202101

BLACK,TRIM2#,4#

main73233-60020-C1iAXVH7#..X201706-202101

BLACK,TRIM2#

main73233-60020-C1iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33890-C0iAXVH7#..G,X201706-202101

BLACK,TRIM2#

main73230-33890-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
