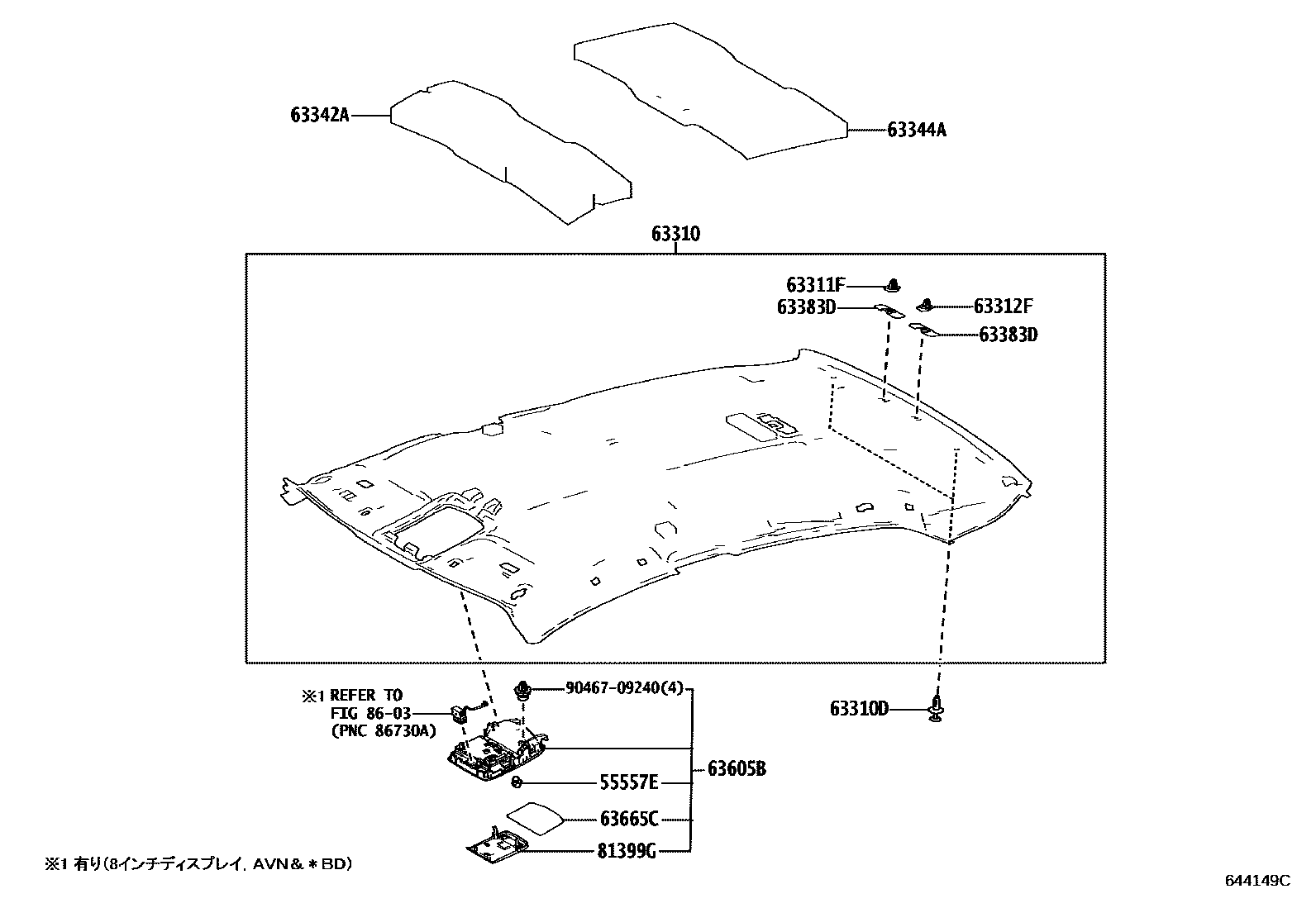

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��������

55557ECUSHION, ROOF CONSOLE BOX

main55557-47050iAXVH7#202102

63310HEADLINING ASSY, ROOF

main63310-33840-B0iAXVH7#..G; AXVH7#..WS,X202102

GRAY,TRIM2#; GRAY,TRIM2#,41

main63310-33840-E0iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

main63310-33860-B0iAXVH70..WS201808-202101

main63310-33860-E0iAXVH70..G201706-202101

63310DCLIP, ROOF HEADLINING

main90467-05168-B0×2iAXVH7#..G; AXVH7#..WS,X202102

GRAY,TRIM2#; GRAY,TRIM2#,41

main90467-05168-E0×2iAXVH7#..G201706-202101

NEUTRAL BEIGE,TRIM4#

63311FCLIP, ROOF HEADLINING, NO.1

main90467-10181iAXVH7#202102

63312FCLIP, ROOF HEADLINING, NO.2

main90467-09126iAXVH7#202102

63342ASILENCER, ROOF, NO.2

main63342-33070iAXVH7#201706-202101

63344ASILENCER, ROOF, NO.4

main63344-33060iAXVH7#202102

63383DRETAINER, ROOF HEADLINING, REAR

main63383-24030×2iAXVH7#201706-202101

63605BBOX SUB-ASSY, ROOF CONSOLE

main63605-33120-B0iAXVH70201706-201910

GRAY,TRIM2#

main63605-33260-B0iAXVH7#..G,X; AXVH7#..WS201910-202101

GRAY,TRIM2#; GRAY,TRIM2#,3#

main63605-33260-E0iAXVH7#..G201910-202101

NEUTRAL BEIGE,TRIM4#

main63605-33261-B0iAXVH7#..WS,X202102

GRAY,TRIM2#

main63605-33261-E0iAXVH7#..G202102-202208

NEUTRAL BEIGE,TRIM40

main63605-33121-B0iAXVH7#..X202102

main63605-33140-B0iAXVH70..G,WS201808-201910

main63605-33140-E0iAXVH70..G201706-201910

main63605-33200-B0iAXVH70..G,WS201808-201910

main63605-33200-E0iAXVH70..G201706-201910

main63605-33210-B0iAXVH70..G,WS201706-201910

main63605-33340-B0iAXVH70..G; AXVH70..WS201910-202101

main63605-33340-E0iAXVH70..G201910-202101

main63605-33341-B0iAXVH70..G202102-202208

main63605-33341-E0iAXVH70..G202102-202208

63665CMAT, ROOF CONSOLE BOX

main63665-33020iAXVH7#202102

81399GCOVER, LENS

main81399-33010iAXVH70201706-201910

main81399-33020iAXVH7#201910-202101

main81399-33040iAXVH70..G,WS201706-201910

main81399-33100iAXVH70..G,WS201910-202101

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9046709240

main90467-09240

13 parts on this diagram · 2 diagrams in section
