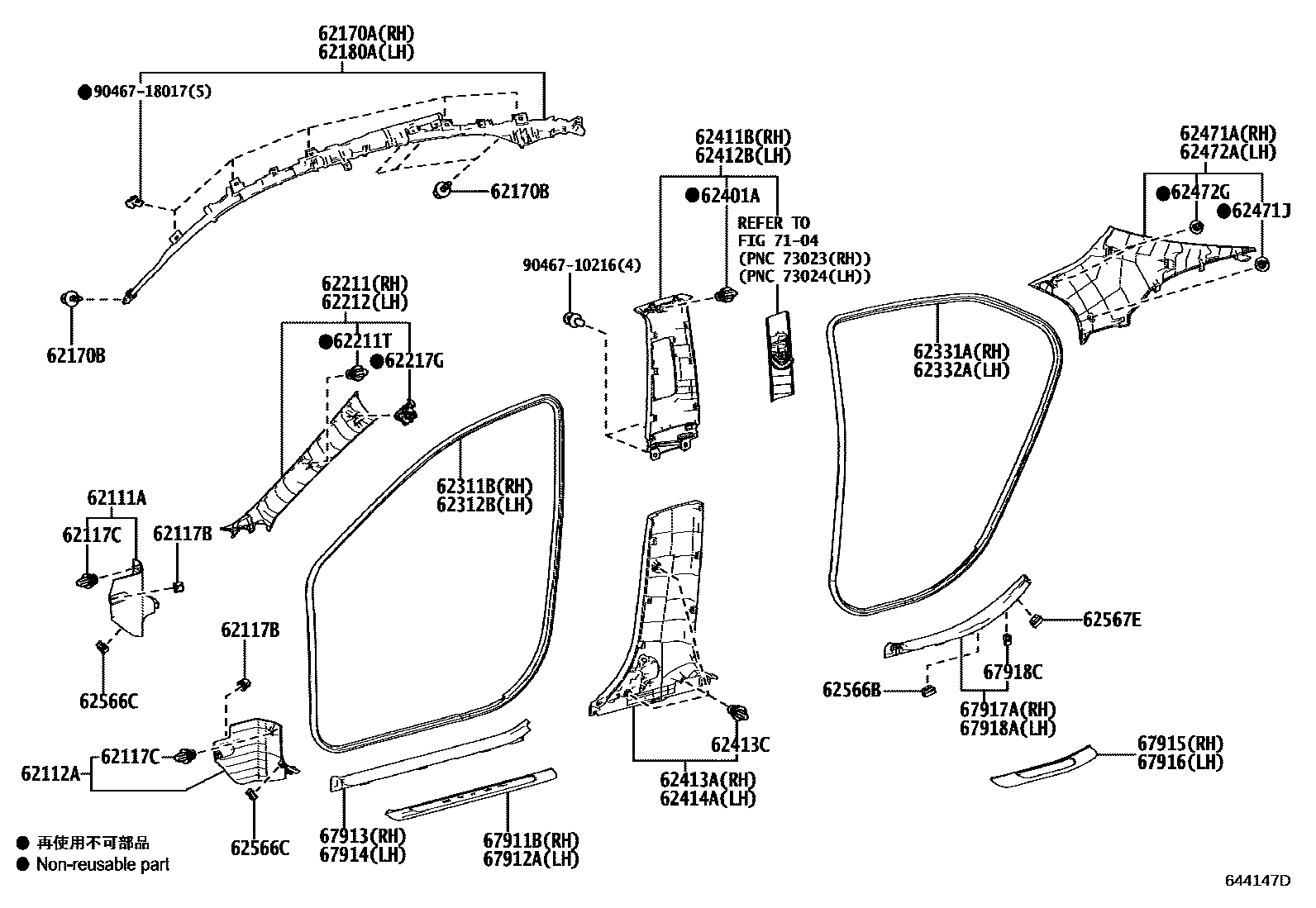

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33150-B0iAXVH7#..G202102

NEUTRAL WARM GRAY,TRIM40

main62101-33150-C0iAXVH7#..G,X201706-202101

BLACK,TRIM2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33240-B0iAXVH7#..G201706-202101

NEUTRAL WARM GRAY,TRIM4#

main62102-33240-C0iAXVH7#..G; AXVH7#..WS,X202102

BLACK,TRIM2#; BLACK,TRIM2#,41

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iAXVH7#201706-202101

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161×2iAXVH7#201706-202101

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33101iAXVH70201706-201707

main62170-33102iAXVH7#201707-202101

62170BBOLT, W/WASHER

main91673-80616×8iAXVH7#201706-202101

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33101iAXVH70201706-201707

main62180-33102iAXVH7#201707-202101

62211GARNISH, FRONT PILLAR, RH

main62210-33220-B1iAXVH7#..G,X; AXVH7#..WS201808-202101

GRAY,TRIM2#; GRAY,TRIM2#,3#

main62210-33220-E1iAXVH7#..G201808-202101

NEUTRAL BEIGE,TRIM4#

main62210-33260-B0iAXVH70201706-201808

LT.GRAY/GRAY,TRIM2#

main62210-33260-E0iAXVH70..G201706-201808

ECRU/NEUTRAL BEIGE,TRIM4#

main62210-33250-B2iAXVH7#..G; AXVH7#..WS202102

main62210-33250-E2iAXVH70..G201808-201910

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iAXVH7#201706-202101

62212GARNISH, FRONT PILLAR, LH

main62220-33210-B1iAXVH7#..G; AXVH7#..WS,X202102

GRAY,TRIM2#; GRAY,TRIM2#,41

main62220-33210-E1iAXVH7#..G201808-202101

NEUTRAL BEIGE,TRIM4#

main62220-33260-B0iAXVH70201706-201808

LT.GRAY/GRAY,TRIM2#

main62220-33260-E0iAXVH70..G201706-201808

ECRU/NEUTRAL BEIGE,TRIM4#

main62220-33250-B2iAXVH7#..G; AXVH7#..WS201910-202101

main62220-33250-E2iAXVH70..G201808-201910

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020×2iAXVH7#202102

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33120iAXVH7#202102

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33120iAXVH7#202102

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33140iAXVH7#201706-202101

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33140iAXVH7#202102

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167×2iAXVH7#202102

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33200-B2iAXVH7#..WS201808-202101

GRAY,TRIM2#,3#

main62410-33200-E2iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33190-B2iAXVH7#..G,X201706-202101

GRAY,TRIM2#

main62420-33190-E2iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33140-B0iAXVH7#..G202102

NEUTRAL WARM GRAY,TRIM40

main62413-33140-C0iAXVH7#..G; AXVH7#..WS,X202102

BLACK,TRIM2#; BLACK,TRIM2#,41

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×6iAXVH7#202102

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33130-B0iAXVH7#..G201706-202101

NEUTRAL WARM GRAY,TRIM4#

main62414-33130-C0iAXVH7#..G; AXVH7#..WS,X202102

BLACK,TRIM2#; BLACK,TRIM2#,41

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33210-B1iAXVH7#..G,X201706-202101

GRAY,TRIM2#

main62470-33210-E1iAXVH7#..G201706-202101

NEUTRAL BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240×2iAXVH7#201706-202101

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33210-B1iAXVH7#..G; AXVH7#..WS,X202102

GRAY,TRIM2#; GRAY,TRIM2#,41

main62480-33210-E1iAXVH7#..G202102

NEUTRAL BEIGE,TRIM40

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×4iAXVH7#201706-202101

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010×2iAXVH7#201706-202101

62566CCLAMP, COWL SIDE TRIM

main62567-33040×2iAXVH7#201706-202101

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iAXVH7#201706-202101

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33090iAXVH7#201706-202101

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33120iAXVH7#201706-202101

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33170-B0iAXVH7#..G201706-202101

NEUTRAL WARM GRAY,TRIM4#

main67913-33170-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33170-B0iAXVH7#..G201706-202101

NEUTRAL WARM GRAY,TRIM4#

main67914-33170-C0iAXVH7#..G; AXVH7#..WS,X202102

BLACK,TRIM2#; BLACK,TRIM2#,41

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33120iAXVH7#202102

main67915-33130iAXVH7#201706-202101

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33120iAXVH7#202102

main67916-33130iAXVH7#201706-202101

67917APLATE, REAR DOOR SCUFF, RH

main67917-33140-B0iAXVH7#..G202102

NEUTRAL WARM GRAY,TRIM40

main67917-33140-C0iAXVH7#..G; AXVH7#..WS,X202102

BLACK,TRIM2#; BLACK,TRIM2#,41

67918APLATE, REAR DOOR SCUFF, LH

main67918-33140-B0iAXVH7#..G201706-202101

NEUTRAL WARM GRAY,TRIM4#

main67918-33140-C0iAXVH7#..WS201808-202101

BLACK,TRIM2#,3#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171×2iAXVH7#201706-202101

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9046710216

main90467-10216

9046718017

main90467-18017

40 parts on this diagram · 1 diagram in section
