SIDE MEMBER

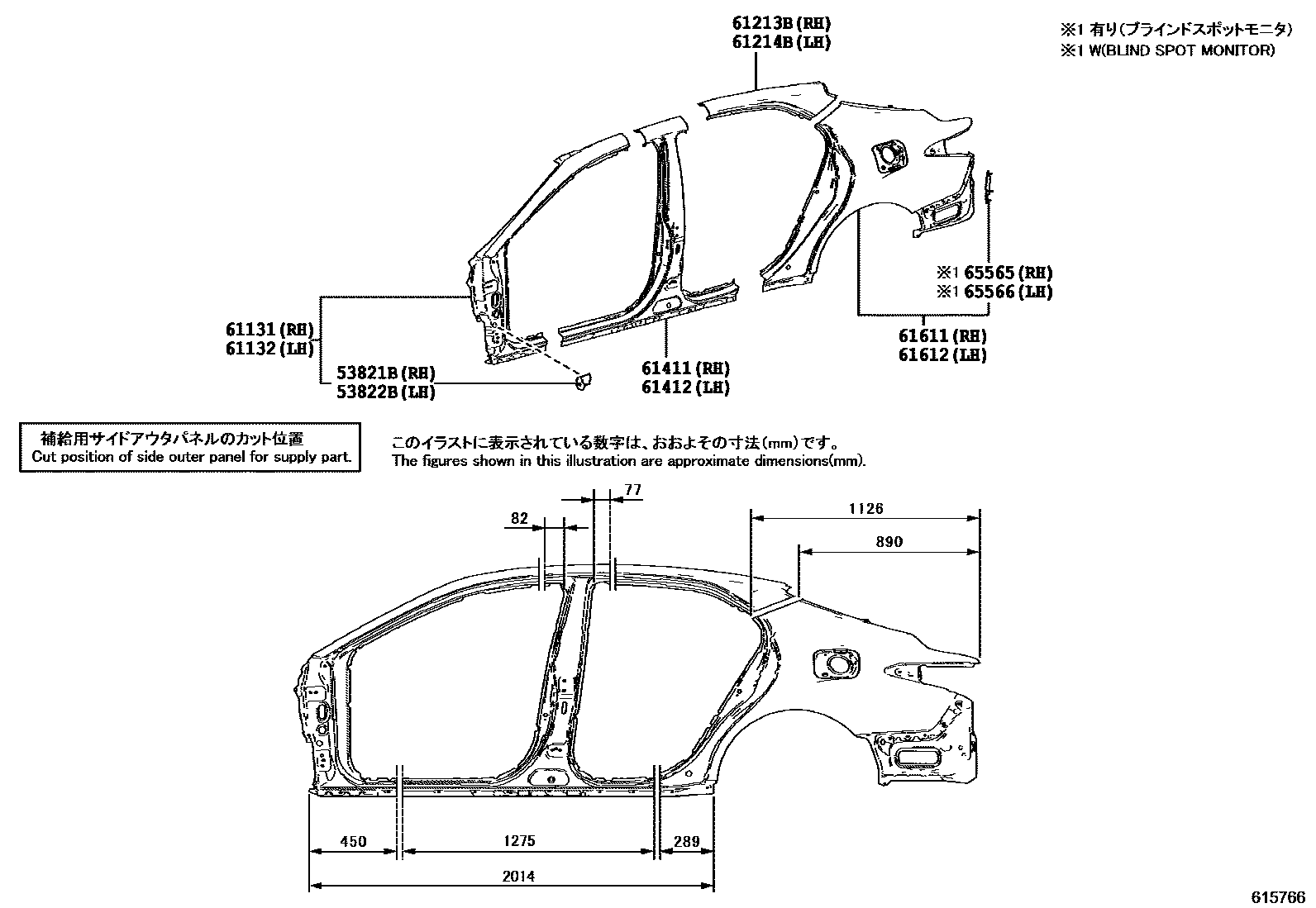

Parts diagram

53821BBRACKET, FRONT FENDER, REAR RH

main53821-75020i201706-202101

53822BBRACKET, FRONT FENDER, REAR LH

main53821-75020i201706-202101

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33100i201706-202101

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-33100i201706-202101

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-33150i201706-202101

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-33150i201706-202101

61411PANEL, ROCKER, OUTER RH

main61311-33090i202102

main61411-33080i201706-201707

61412PANEL, ROCKER, OUTER LH

main61312-33090i201707-202101

main61412-33100i201706-201707

61611PANEL, QUARTER, RH

main61601-33410i202102

main61601-33380i201706-202101

61612PANEL, QUARTER, LH

main61602-33290i202102

main61602-33260i201706-202101

65565PATCH, SIDE PANEL REAR END, RH

main65565-33050i201706-201910

65566PATCH, SIDE PANEL REAR END, LH

main65565-33050i201706-201910

12 parts on this diagram · 3 diagrams in section
