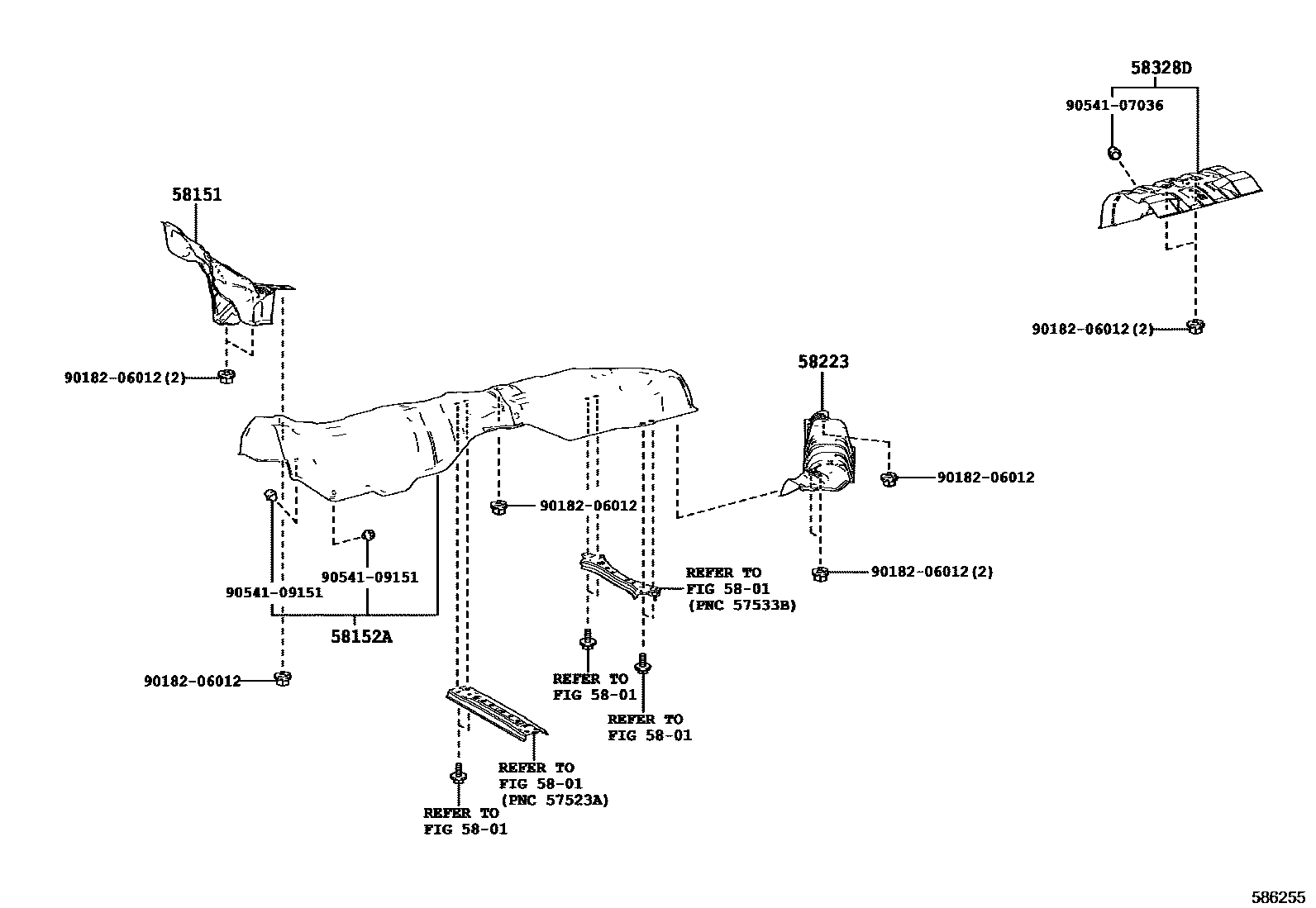

FLOOR INSULATOR

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-33010iAXVH7#202102

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-33080iAXVH7#201706-202101

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-33041iAXVH7#202102

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58041-06030iAXVH75201912-202101

main58327-33080iAXVH70201706-202101

9018206012

main90182-06012

9054107036

main90541-07036

9054109151

main90541-09151

8 parts on this diagram · 1 diagram in section
