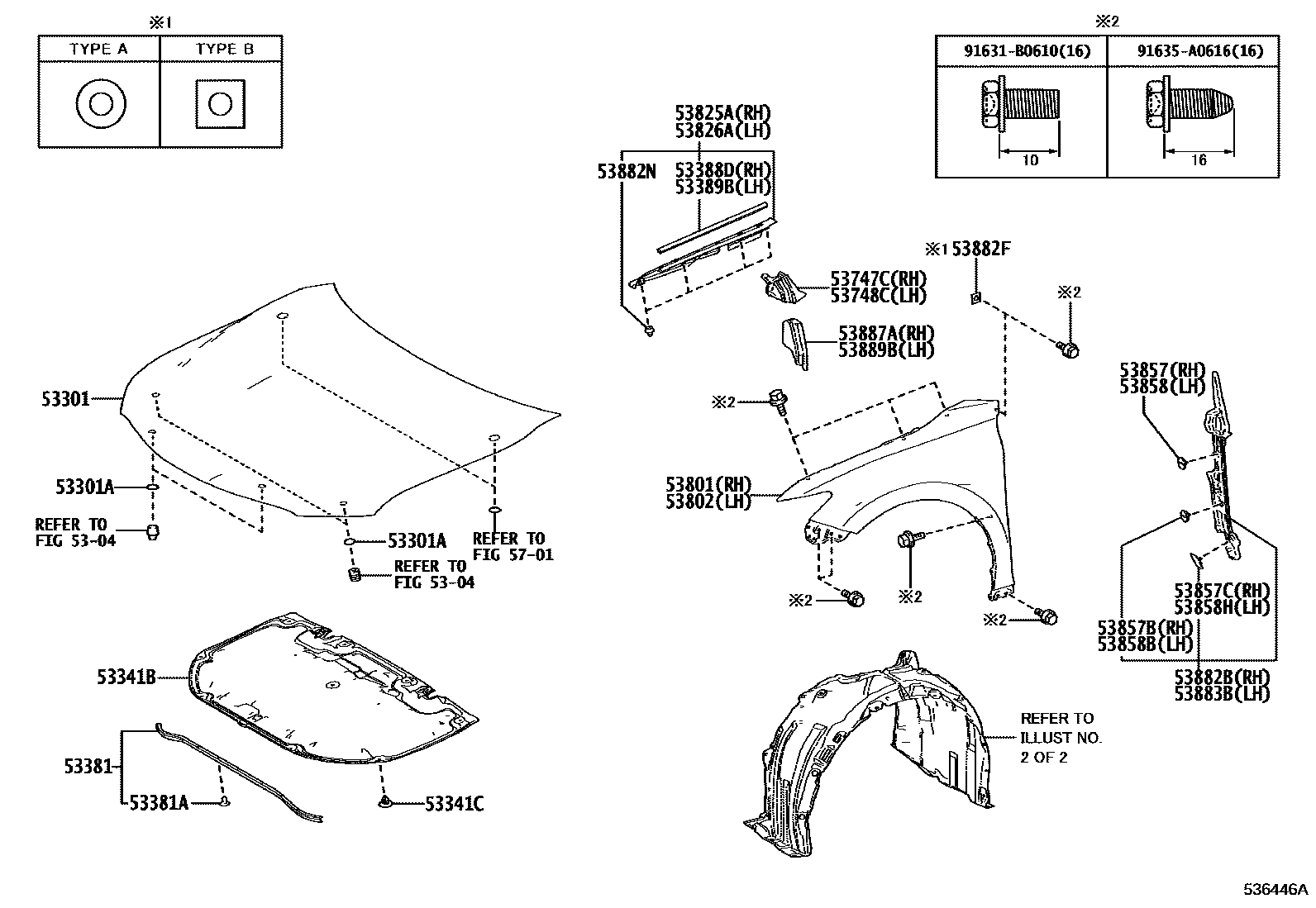

HOOD & FRONT FENDER
5304FRONT FENDER APRON & DASH PANEL
53301HOOD SUB-ASSY
53301APLUG, HOLE(FOR HOOD)
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53882NCLIP(FOR FRONT FENDER SEAL)
53883BSEAL, FRONT FENDER, LH
53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
5701HOLE PLUG
91631B0610
main91631-B0610
91635A0616
main91635-A0616
30 parts on this diagram · 2 diagrams in section
