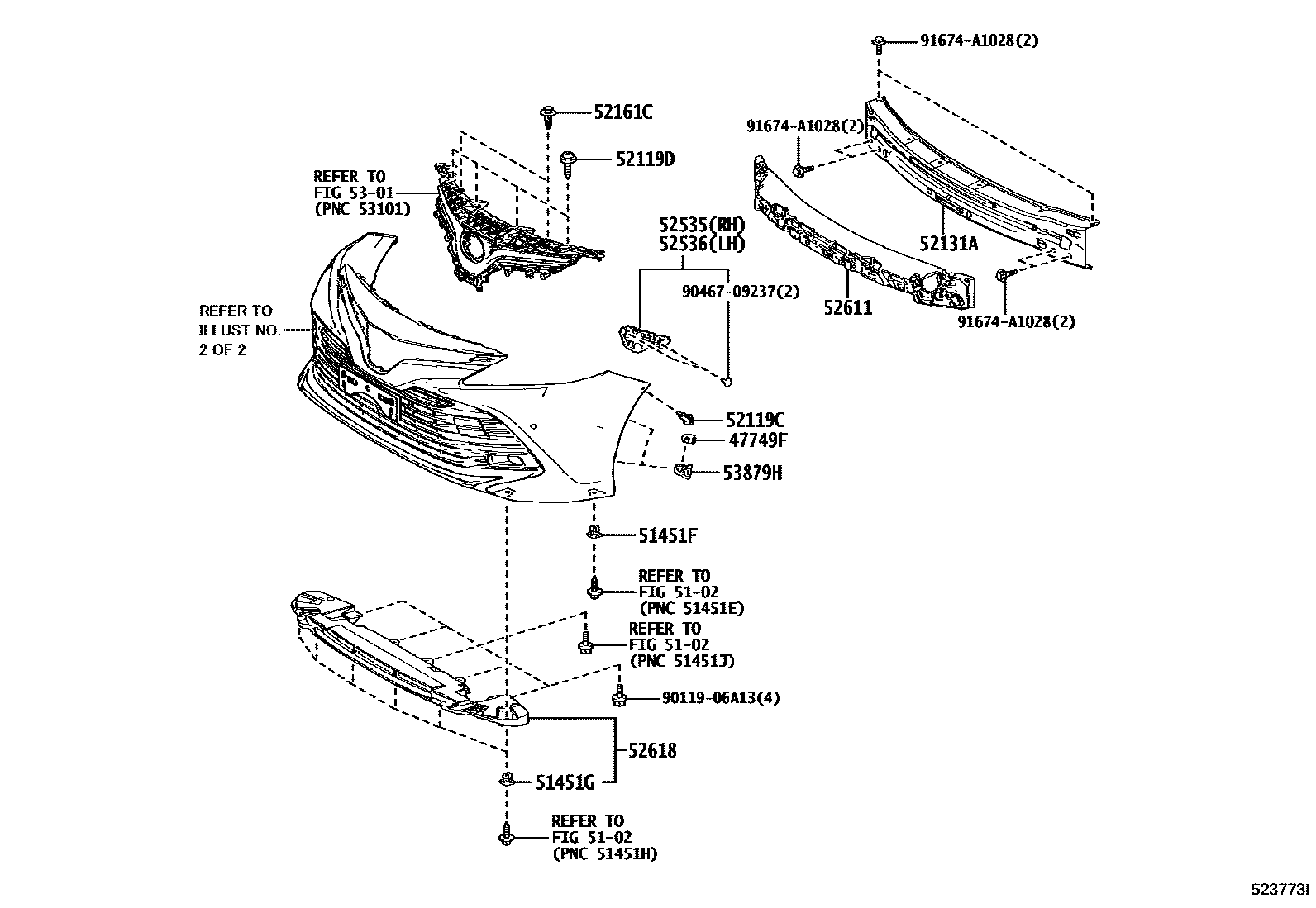

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

47749FCLIP, PIN HOLD

main47749-33030iAXVH7#201706-202101

5102

51451FGROMMET, NO.1

main90189-06237iAXVH7#201706-202101

51451GGROMMET, NO.2

main90189-06237iAXVH7#201706-202101

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXVH7#201706-202101

52119DSCREW, NO.1

main90167-50063iAXVH7#..G,X201706-202101

52131AREINFORCEMENT, FRONT BUMPER

main52131-33180iAXVH7#201706-202303

main52131-33181iAXVH7#202304

52161CPIECE, FRONT BUMPER

main52161-16010iAXVH7#201706-202101

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33060iAXVH7#201706-202101

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33060iAXVH7#201706-202101

52611ABSORBER, FRONT BUMPER ENERGY

main52611-33300iAXVH7#201706-202101

main52611-33360iAXVH7#202102

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33060iAXVH70..G,X201706-202101

main52618-33110iAXVH70..G,X201903-202101

5301

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXVH7#201706-202101

9011906A13

main90119-06A13

9046709237

main90467-09237

91674A1028

main91674-A1028

17 parts on this diagram · 8 diagrams in section
