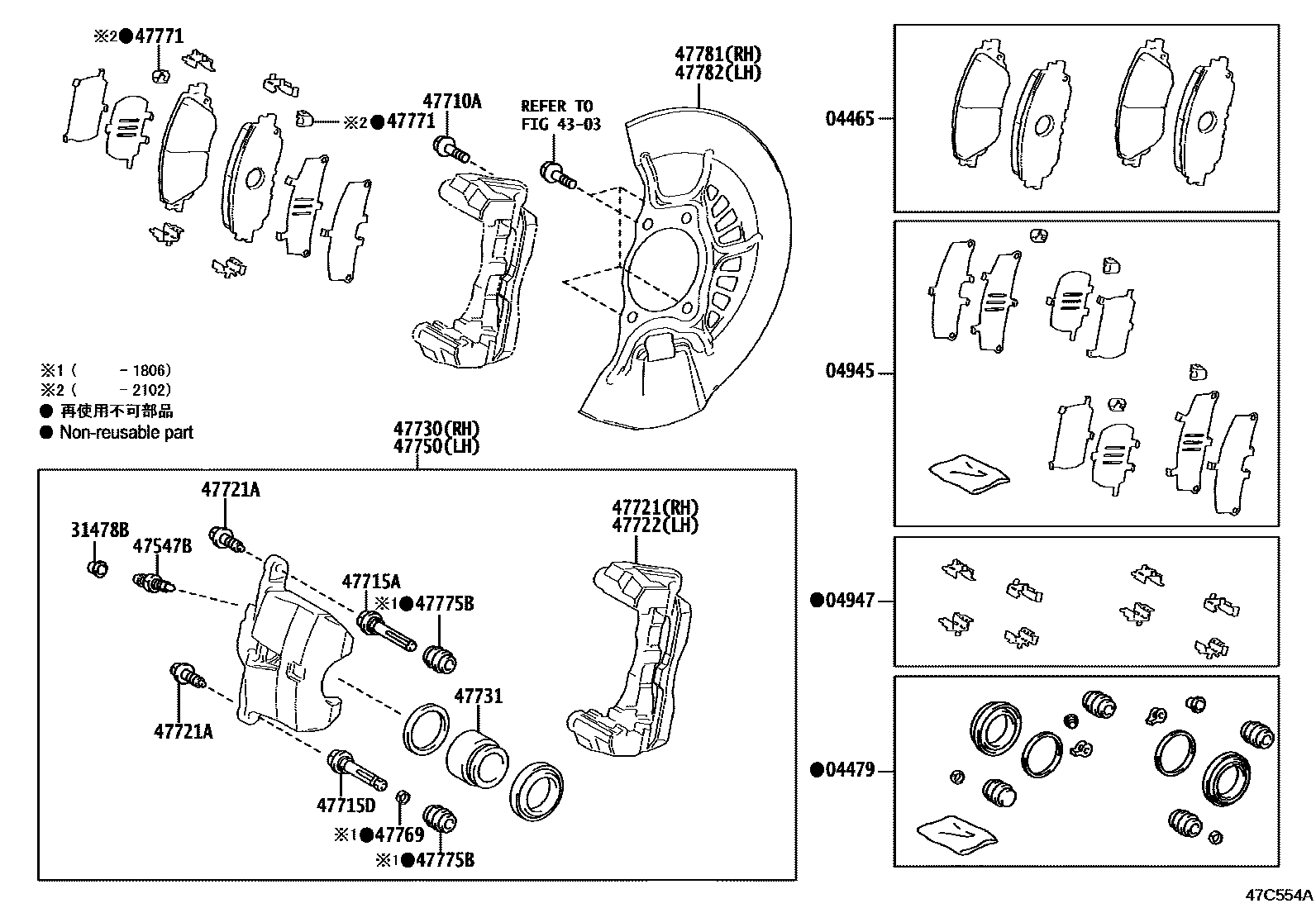

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33480iAXVH7#201706-202101

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33160iAXVH7#201706-202101

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33300iAXVH7#201706-202205

main04945-42100iAXVH7#202206

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33280iAXVH70201706-201806

main04947-33281iAXVH7#201806-202101

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAXVH7#201706-202101

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXVH7#201706-202101

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAXVH7#201706-202101

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iAXVH7#201706-202101

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAXVH7#201706-202101

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33381iAXVH70201706-201806

sub47721-33382

sub04947-33281

main47721-33382iAXVH7#201806-202101

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAXVH7#201706-202101

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33312iAXVH7#201806-202101

main47722-33381iAXVH70201706-201806

sub47722-33312

sub04947-33281

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33380iAXVH70201706-201806

sub47730-33381

sub04947-33281

main47730-33381iAXVH7#201806-202101

47731PISTON, FRONT DISC BRAKE

main47731-12A10iAXVH7#201706-202101

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33311iAXVH7#201806-202101

main47750-33380iAXVH70201706-201806

sub47750-33311

sub04947-33281

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAXVH70201706-201806

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iAXVH70201706-202101

47775BBOOT, BUSH DUST, NO.1

main47775-52190iAXVH70201706-201806

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33060iAXVH7#201706-202101

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33060iAXVH7#201706-202101

21 parts on this diagram · 1 diagram in section
