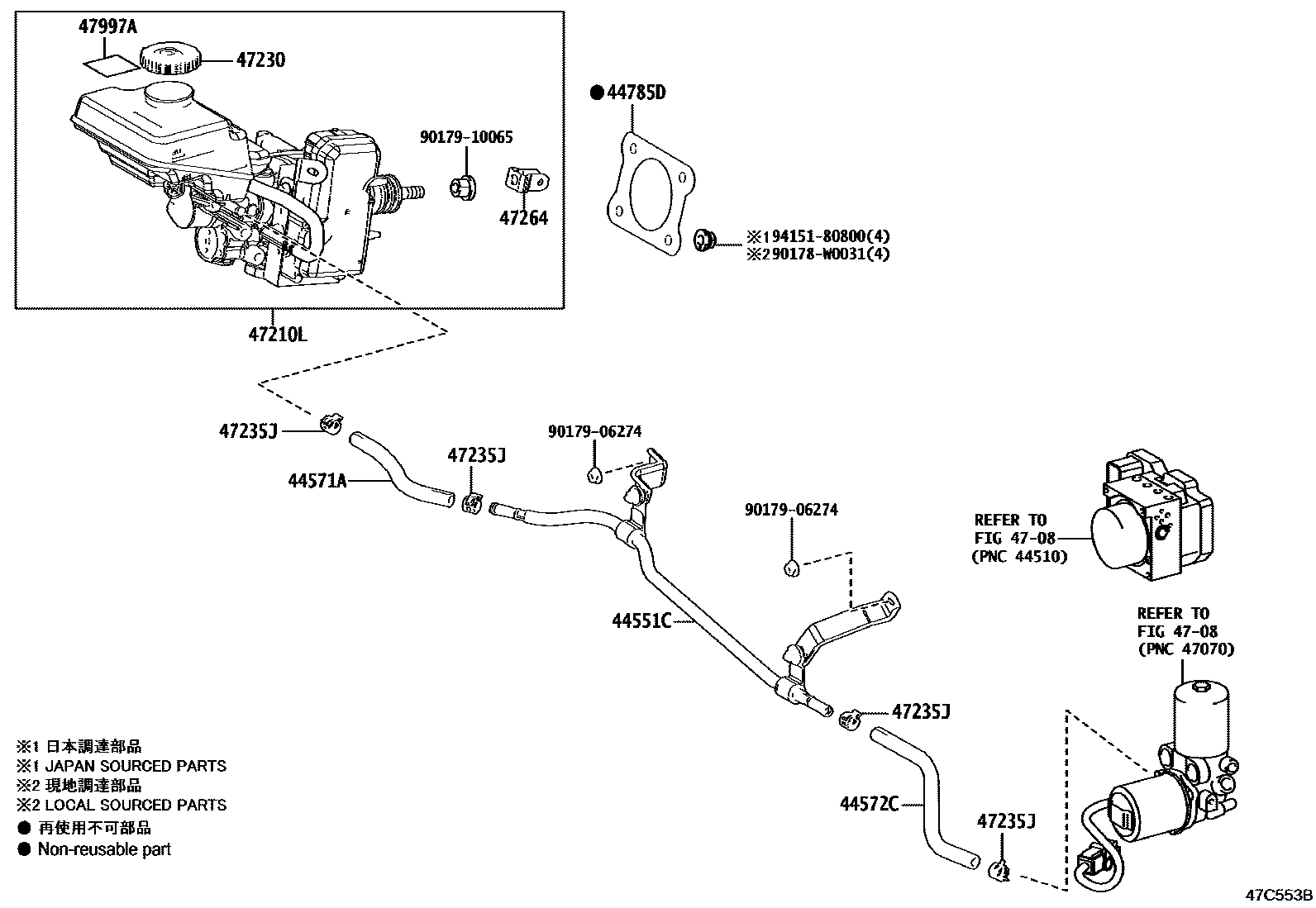

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-33090iAXVH7#201706-202101

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-33160iAXVH7#201706-202101

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-33040iAXVH7#201706-202101

44785DGASKET, BRAKE MASTER CYLINDER

main44785-05020iAXVH7#201706-202101

main44785-12040iAXVH7#201706-202101

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-33400iAXVH70201706-201808

main47050-33520iAXVH70201808-201910

main47050-33560iAXVH75201912-202101

main47050-33590iAXVH70201910-202101

main47050-33740iAXVH70202102-202207

main47050-33741iAXVH70202208

main47050-33760iAXVH75202102-202207

main47050-33761iAXVH75202208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iAXVH7#202002-202009

main47230-47090iAXVH7#201706-202002

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501×4iAXVH7#201706-202101

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iAXVH70201706-201910

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iAXVH7#201706-202101

90178W0031

main90178-W0031

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
