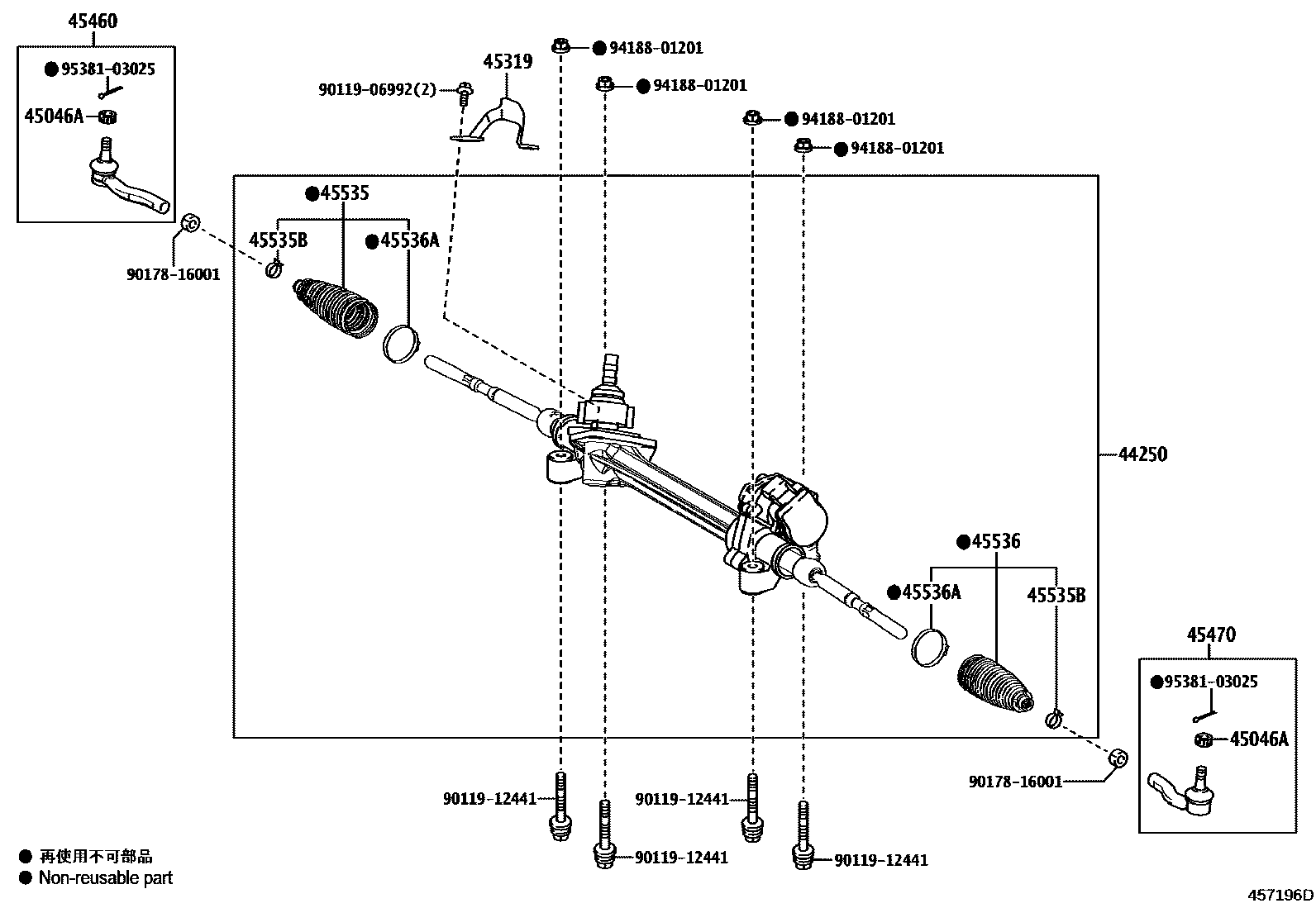

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-33640iAXVH70..G,X201706-201909

main44250-33641iAXVH70..G,X201910-202101

main44250-33642iAXVH70..G,X202102

main44250-33860iAXVH75201912-202101

main44250-33861iAXVH75202102

main44250-33650iAXVH70..G201706-201909

main44250-33651iAXVH70..G201910-202101

main44250-33652iAXVH70..G202102

main44250-33660supersedes 44250-33790iAXVH70..WS201808-201909

main44250-33661iAXVH70..WS202008-202101

main44250-33662supersedes 44250-33792iAXVH70..WS202102

main44250-33870iAXVH75..G; AXVH75..WS201912-202101

main44250-33871iAXVH75..G; AXVH75..WS202102

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAXVH7#201706-202101

45319INSULATOR, STEERING GEAR HEAT

main45319-33030iAXVH7#201706-202101

45460ROD ASSY, TIE, RH

main45460-80008iAXVH7#201706-202101

45470ROD ASSY, TIE, LH

main45470-39365iAXVH7#201706-202101

45535BOOT, STEERING RACK, NO.1

main45535-29025iAXVH7#201706-202101

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iAXVH7#201706-202101

45536BOOT, STEERING RACK, NO.2

main45535-29025iAXVH7#201706-202101

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-06030×2iAXVH7#201706-202101

9011906992

main90119-06992

9011912441

main90119-12441

9017816001

main90178-16001

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
