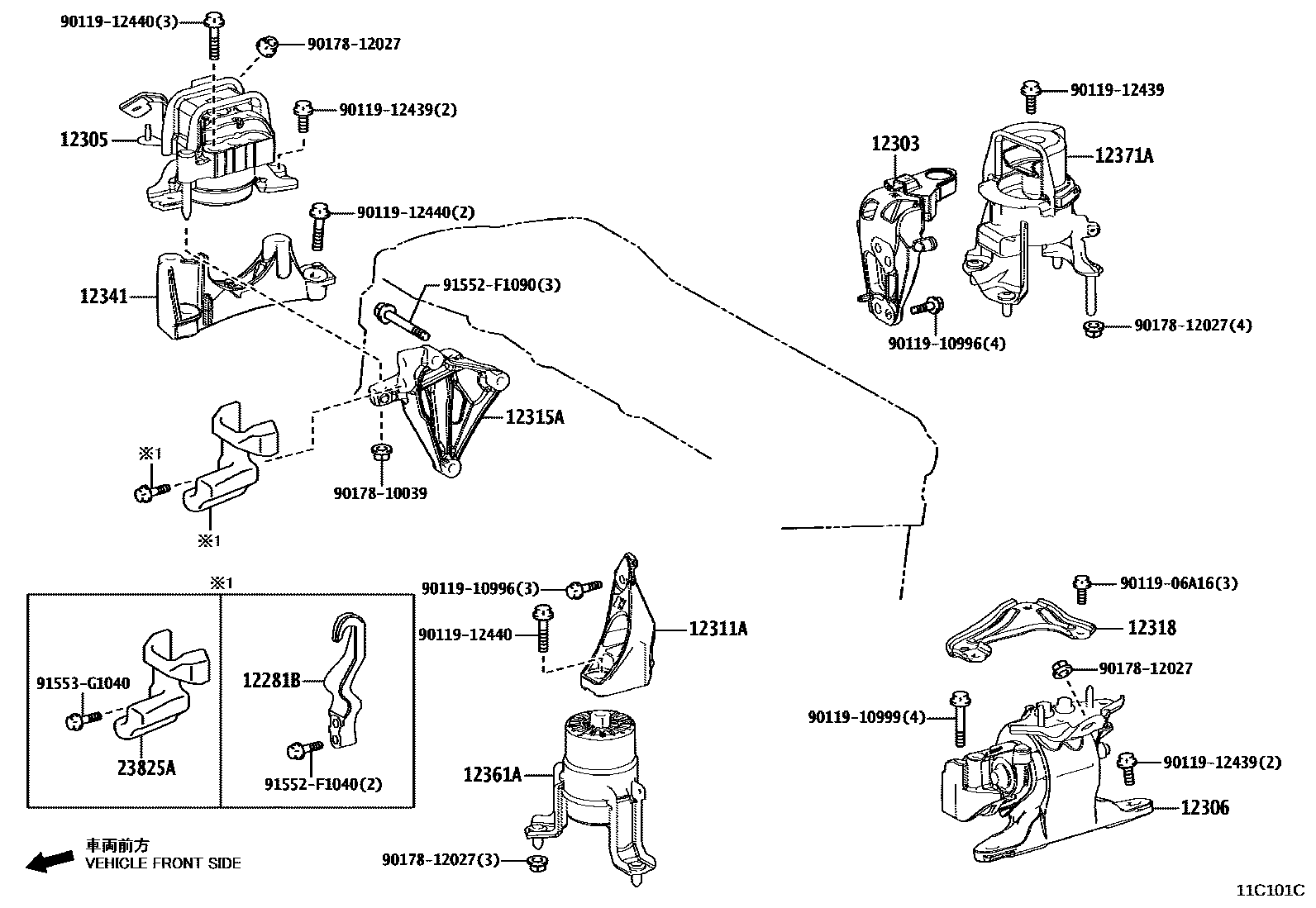

MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25AFXS..AXVH7#201706-202101

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-25020iA25AFXS..AXVH7#201706-202101

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-25020iA25AFXS..AXVH7#201706-202101

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-25010iA25AFXS..AXVH7#201706-202101

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25080iA25AFXS..AXVH7#201706-202101

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25030iA25AFXS..AXVH7#201706-202003

main12315-25031iA25AFXS..AXVH7#202003-202101

12318STAY, ENGINE MOUNTING, LH

main12318-25020iA25AFXS..AXVH7#201706-202101

12341SPACER, ENGINE MOUNTING

main12341-25010iA25AFXS..AXVH7#201706-202101

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-25050iA25AFXS..AXVH7#201706-202101

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25020iA25AFXS..AXVH7#201706-202101

23825AGUARD, FUEL DELIVERY

main23825-25010iA25AFXS..AXVH7#201706-202101

9011906A16

main90119-06A16

9011910996

main90119-10996

9011910999

main90119-10999

9011912439

main90119-12439

9011912440

main90119-12440

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

91553G1040

main91553-G1040

21 parts on this diagram · 1 diagram in section
