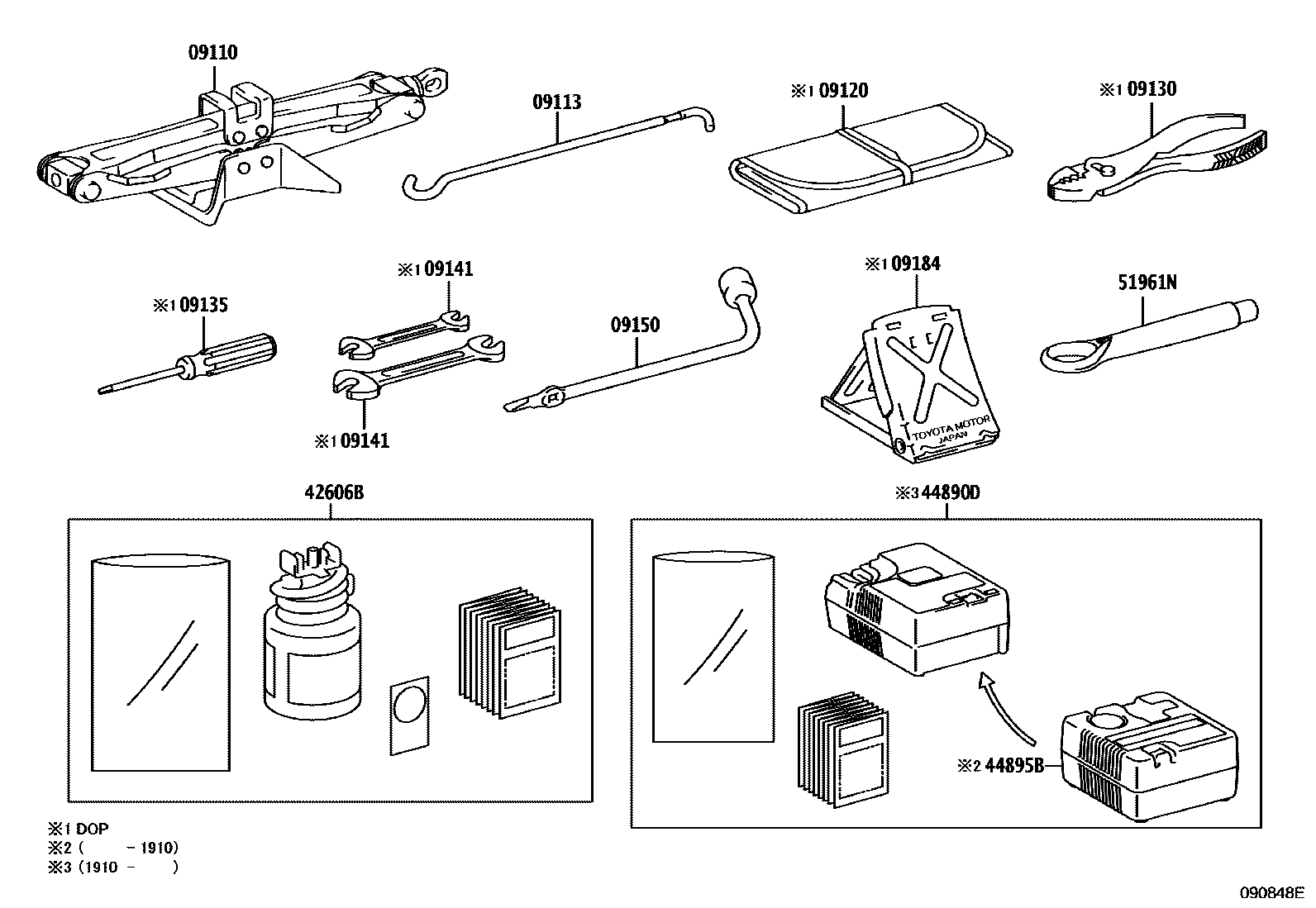

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-33050iAXVH7#; AXVH70202102-202110

main09111-33051iAXVH7#; AXVH70202111

09113HANDLE, JACK

main09113-42030iAXVH7#; AXVH70202102

09120BAG, TOOL

main09120-16030iAXVH7#202102

09130PLIERS

main99913-11500iAXVH7#202102

09135DRIVER, SCREW

main99915-10700iAXVH7#202102

09141SPANNER

main99914-10810iAXVH7#202102

main99914-11214iAXVH7#202102

09150WRENCH, HUB NUT BOX

main09150-42010iAXVH7#; AXVH70202102

09184STOPPER, WHEEL

main09184-00010iAXVH7#201706-202101

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iAXVH7#201910-202101

main42606-42080iAXVH7#202212

main42606-58010iAXVH70201706-201910

44890DCOMPRESSOR ASSY, AIR

main44890-12011iAXVH7#202110-202212

main44890-30030iAXVH7#201910-202101

main44890-42050iAXVH7#202212

44895BCOMPRESSOR, TIRE REPAIR KIT

main44895-58010iAXVH70201706-201910

51961NHOOK, TRANSPORT

main51961-33010iAXVH7#..G,X201706-202101

12 parts on this diagram · 2 diagrams in section
