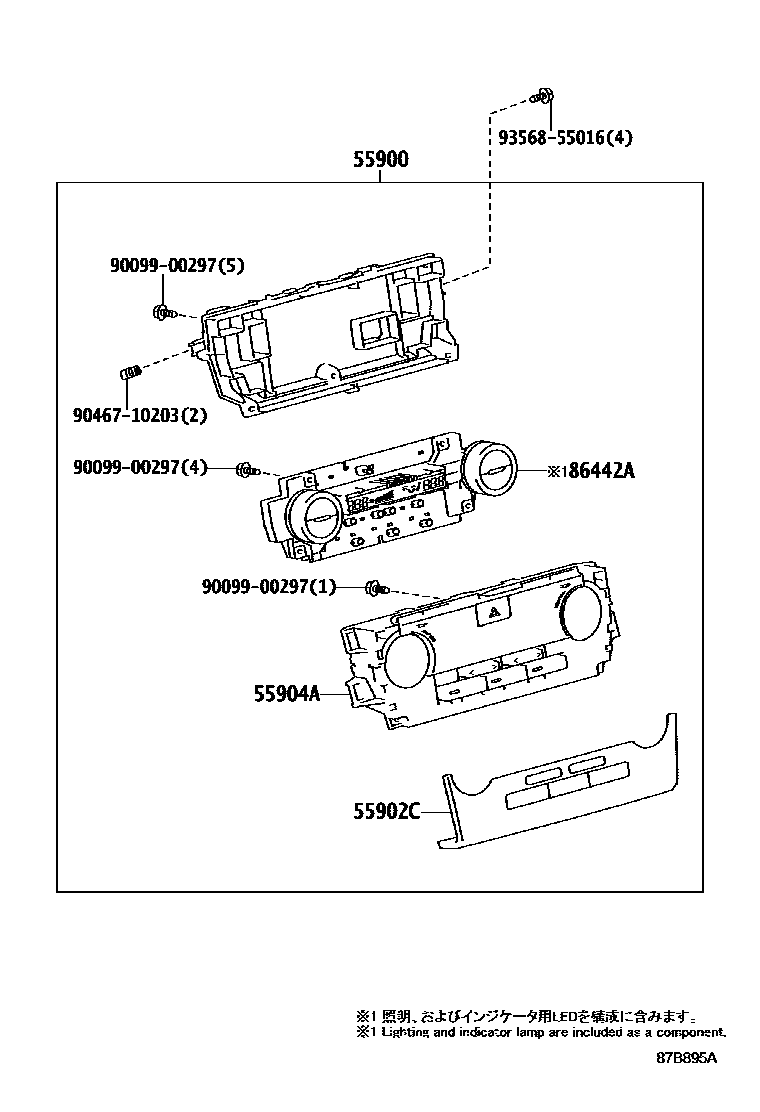

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������� 0002 1���������� 0003 1������ 0004 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-33D70iAVV50201108-201409

main55900-33E90iAVV50201409-201704

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33A80iAVV50201108-201409

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33250iAVV50201108-201409

main55904-33330iAVV50201409-201704

86442ABOARD, HEATER CONTROL SWITCH

main86442-33030iAVV50201108-201409

main86442-33110iAVV50201409-201704

9009900297

main90099-00297

9046710203

main90467-10203

9356855016

main93568-55016

7 parts on this diagram · 4 diagrams in section
