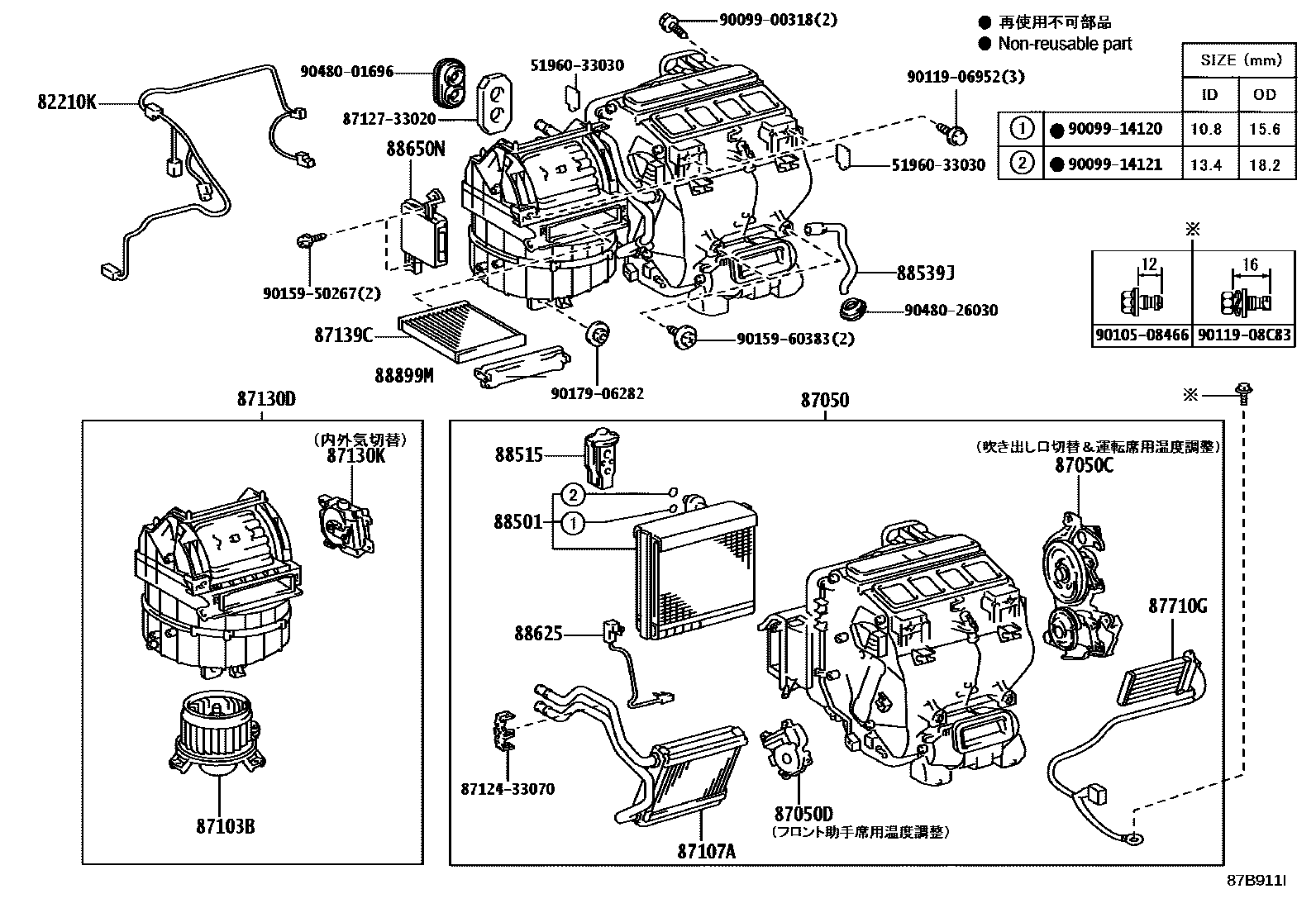

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33011iAVV50201108-201409

main82212-33012iAVV50201510-201704

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33640iAVV50201108-201304

main87050-33641iAVV50201304-201409

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-33290iAVV50201108-201409

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-33260iAVV50201108-201409

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-48070iAVV50201108-201409

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iAVV50201108-201409

87130DBLOWER ASSY

main87130-33230iAVV50201108-201409

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-33280iAVV50201108-201409

87139CFILTER, CLEAN AIR

main87139-30040iAVV50201108-201209

main87139-50060iAVV50201108-201204

main87139-50100iAVV50201205-201409

main87139-52040iAVV50201409-201704

87710GQUICK HEATER ASSY

main87710-33011iAVV50201108-201409

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48301iAVV50201108-201409

88515VALVE, COOLER EXPANSION

main88515-33050iAVV50201108-201409

88539JHOSE, DRAIN COOLER

main88539-33090iAVV50201409-201704

88625THERMISTOR, COOLER, NO.1

main88625-33190iAVV50201108-201409

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-33A90iAVV50201108-201309

main88650-33A91iAVV50201309-201409

main88650-33C40iAVV50201409-201510

main88650-33D50iAVV50201510-201704

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iAVV50201108-201409

5196033030HOOK ASSY, FRONT

main51960-33030

8712433070CLAMP, HEATER

main87124-33070

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9010508466

main90105-08466

9011906952

main90119-06952

9011908C83

main90119-08C83

9015950267

main90159-50267

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696

9048026030

main90480-26030

30 parts on this diagram · 1 diagram in section
