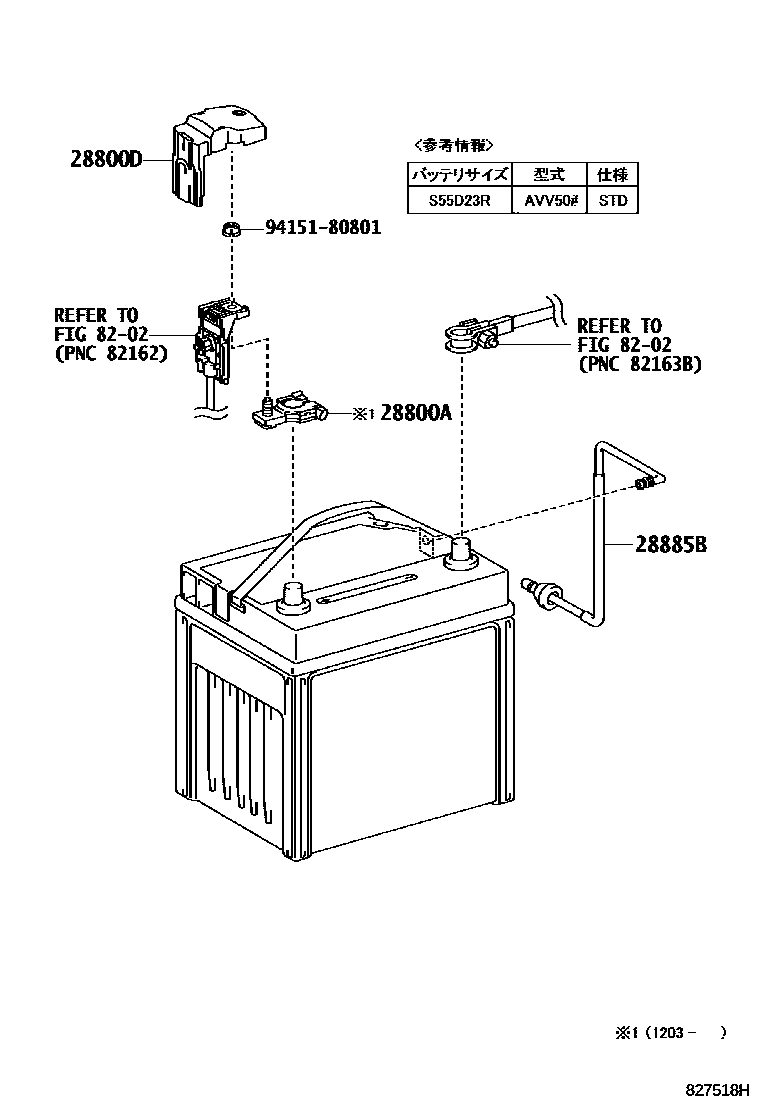

BATTERY & BATTERY CABLE

0001 112V����� 0002 112V����� 0003 1HV����� 0004 1HV����� 0005 1HV�����

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV50201203-201409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-47110i2ARFXE..AVV50201108-201409

28885BHOSE, BATTERY

main28885-36010i2ARFXE..AVV50201108-201202

main28885-36011i2ARFXE..AVV50201203-201409

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

5 parts on this diagram · 5 diagrams in section
