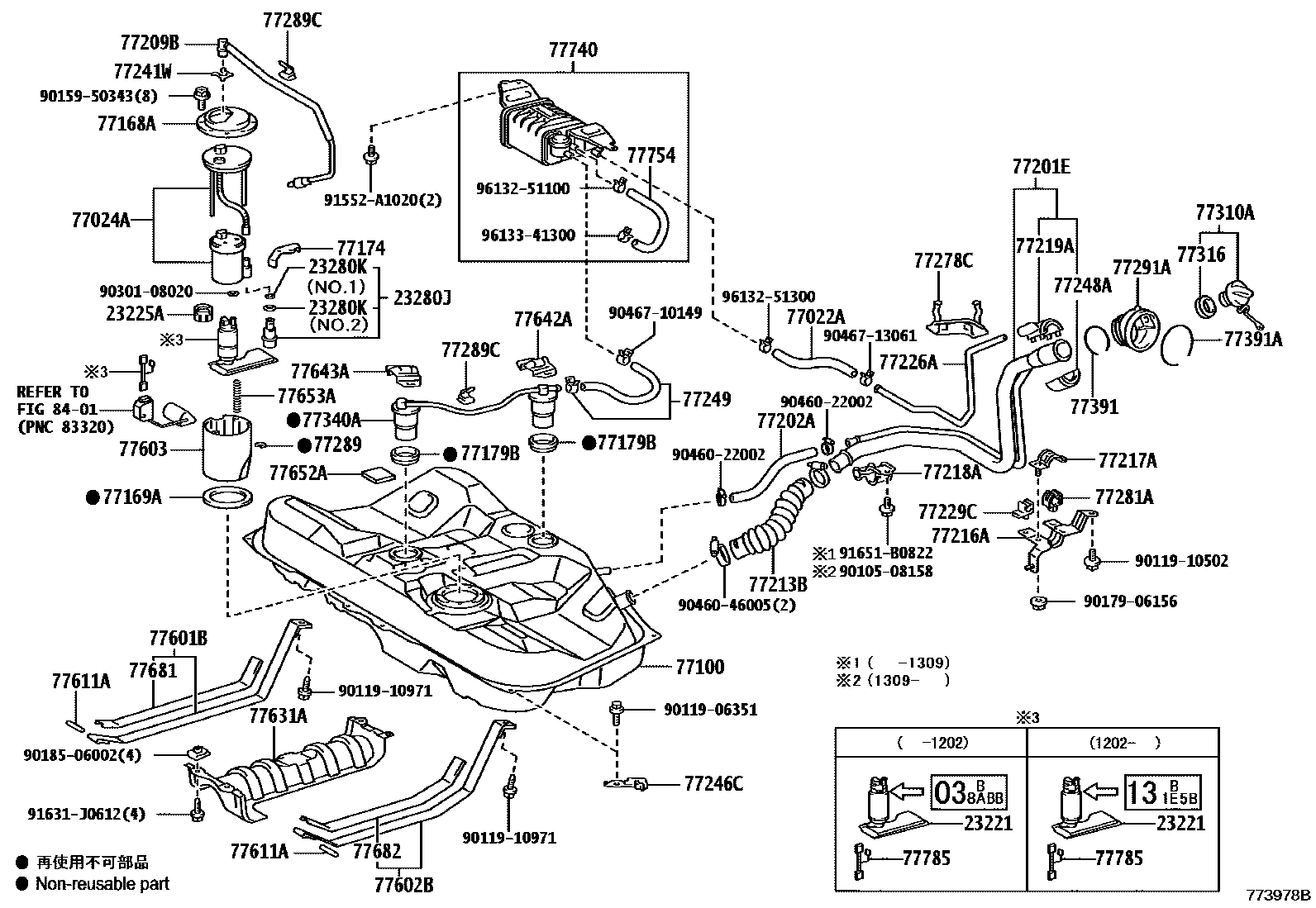

FUEL TANK & TUBE

0001 1����� ��� 0002 1���������� 0003 1��������� �����

23221PUMP, FUEL

main23220-36060i2ARFXE..AVV50201108-201202

main23220-36061i2ARFXE..AVV50201202-201409

23225ASPACER, FUEL PUMP

main23225-21020i2ARFXE..AVV50201409-201704

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ARFXE..AVV50201108-201409

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ARFXE..AVV50201108-201409

main90301-15024i2ARFXE..AVV50201108-201409

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iAVV50201108-201409

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33110iAVV50201108-201409

77100TANK ASSY, FUEL

main77001-33240iAVV50201108-201409

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iAVV50201108-201409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iAVV50201108-201409

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33020iAVV50201108-201409

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010×2iAVV50201108-201409

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-33280iAVV50201108-201309

main77201-33281iAVV50201309-201409

main77201-33282iAVV50201409-201704

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95312-13024iAVV50201108-201309

main95313-13024iAVV50201309-201409

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-33040iAVV50201409-201704

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-33050iAVV50201108-201109

main77213-33120iAVV50201110-201409

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33090iAVV50201108-201409

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33020iAVV50201108-201409

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-33010iAVV50201108-201409

77219ACOVER, FUEL TANK FILLER PIPE

main77219-33040iAVV50201108-201409

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33040iAVV50201108-201409

77229CCLAMP, BREATHER TUBE

main77229-33090iAVV50201108-201409

77241WCLIP, TUBE JOINT

main77241-33011iAVV50201108-201409

77246CSUPPORT, FUEL MAIN TUBE

main77246-33020iAVV50201108-201409

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-33040iAVV50201108-201409

77249HOSE, FUEL EMISSION

main77249-33090iAVV50201108-201409

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-33030iAVV50201108-201409

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-33030iAVV50201108-201409

77281ACLAMP, FUEL FILLER PIPE

main77281-48030iAVV50201409-201704

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iAVV50201108-201409

77289CCLAMP, FUEL TUBE, NO.4

main90464-00745×3iAVV50201108-201409

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33100iAVV50201108-201409

77310ACAP ASSY, FUEL TANK

main77300-12020iAVV50201409-201704

main77300-52030iAVV50201108-201409

77316GASKET, FUEL TANK CAP

main77316-52040iAVV50201108-201409

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-33020iAVV50201108-201409

77391RING, FUEL INLET BOX

main77391-12020iAVV50201108-201409

77391ARING, FUEL INLET BOX

main77391-33040iAVV50201108-201409

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-33111iAVV50201108-201409

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-33111iAVV50201108-201409

77603CASE SUB-ASSY, FUEL TANK, LOWER

main77613-33030iAVV50201108-201409

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iAVV50201108-201409

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-33060iAVV50201108-201409

main77631-33090iAVV50201512-201704

77642APROTECTOR, FUEL TANK, NO.2

main77642-33040iAVV50201108-201409

77643APROTECTOR, FUEL TANK, NO.3

main77643-33030iAVV50201108-201409

77652ACUSHION, FUEL TANK, NO.2

main77651-12070×7iAVV50201108-201409

77653ACUSHION, FUEL TANK, NO.3

main77652-33040iAVV50201108-201409

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAVV50201108-201409

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAVV50201108-201409

77740CANISTER ASSY, CHARCOAL

main77740-33160iAVV50201108-201409

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-33030iAVV50201108-201409

77785HARNESS, FUEL PUMP

main77785-33040iAVV50201108-201202

main77785-33060iAVV50201202-201409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

9011906351

main90119-06351

9011910502

main90119-10502

9011910971

main90119-10971

9015950343

main90159-50343

9017906156

main90179-06156

9018506002

main90185-06002

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046710149

main90467-10149

9046713061

main90467-13061

91552A1020

main91552-A1020

91631J0612

main91631-J0612

91651B0822

main91651-B0822

9613251100

main96132-51100

9613251300

main96132-51300

9613341300

main96133-41300

69 parts on this diagram · 3 diagrams in section
