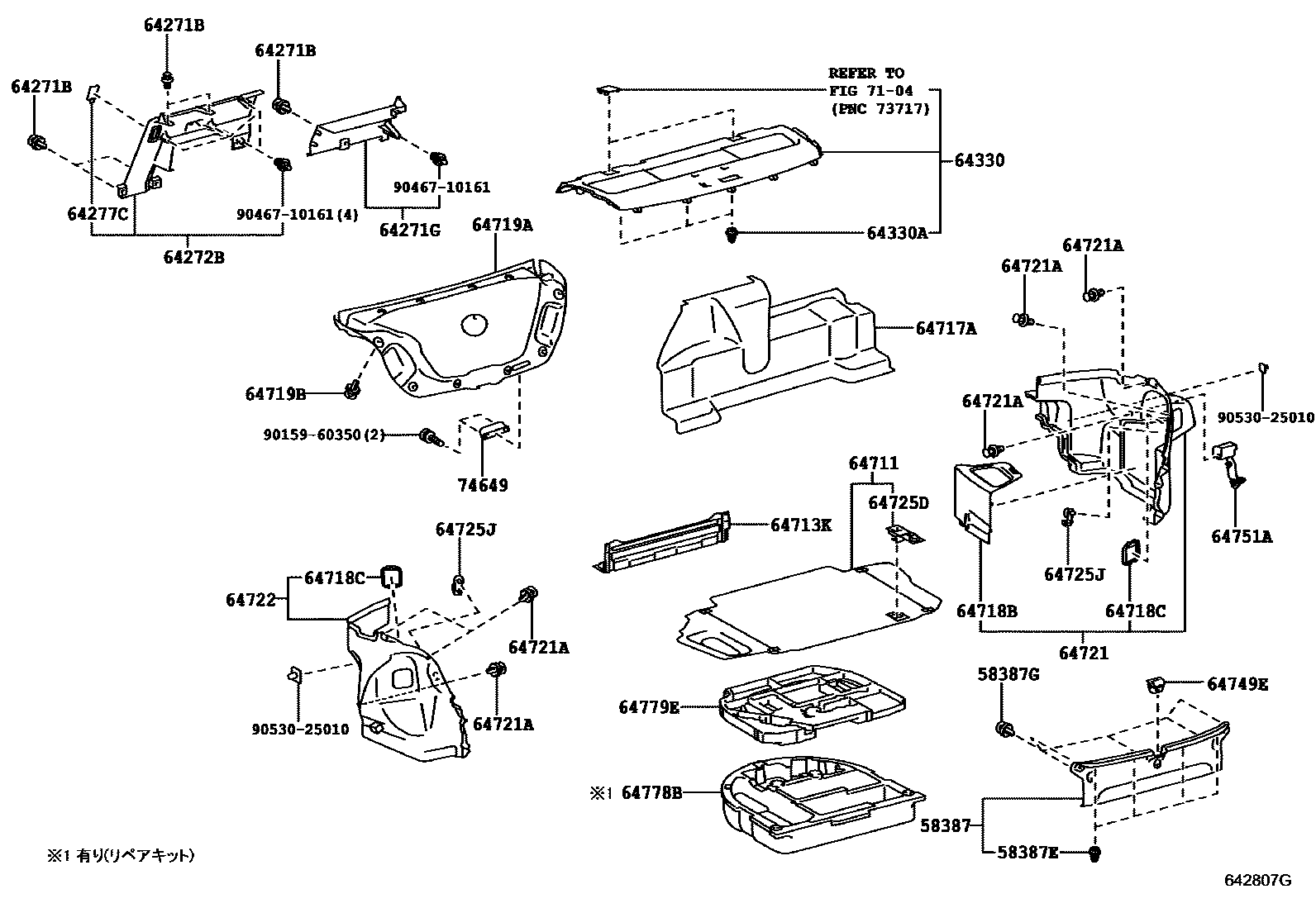

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
64272BBOARD, ROOM PARTITION, LH
64277CCOVER, ROOM PARTITION, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,2#
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM0#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1
64778BPROTECTOR, SPARE WHEEL
64779ETRAY, SPARE WHEEL COVER
7104
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9015960350
main90159-60350
9046710161
main90467-10161
9053025010
main90530-25010
30 parts on this diagram · 1 diagram in section
