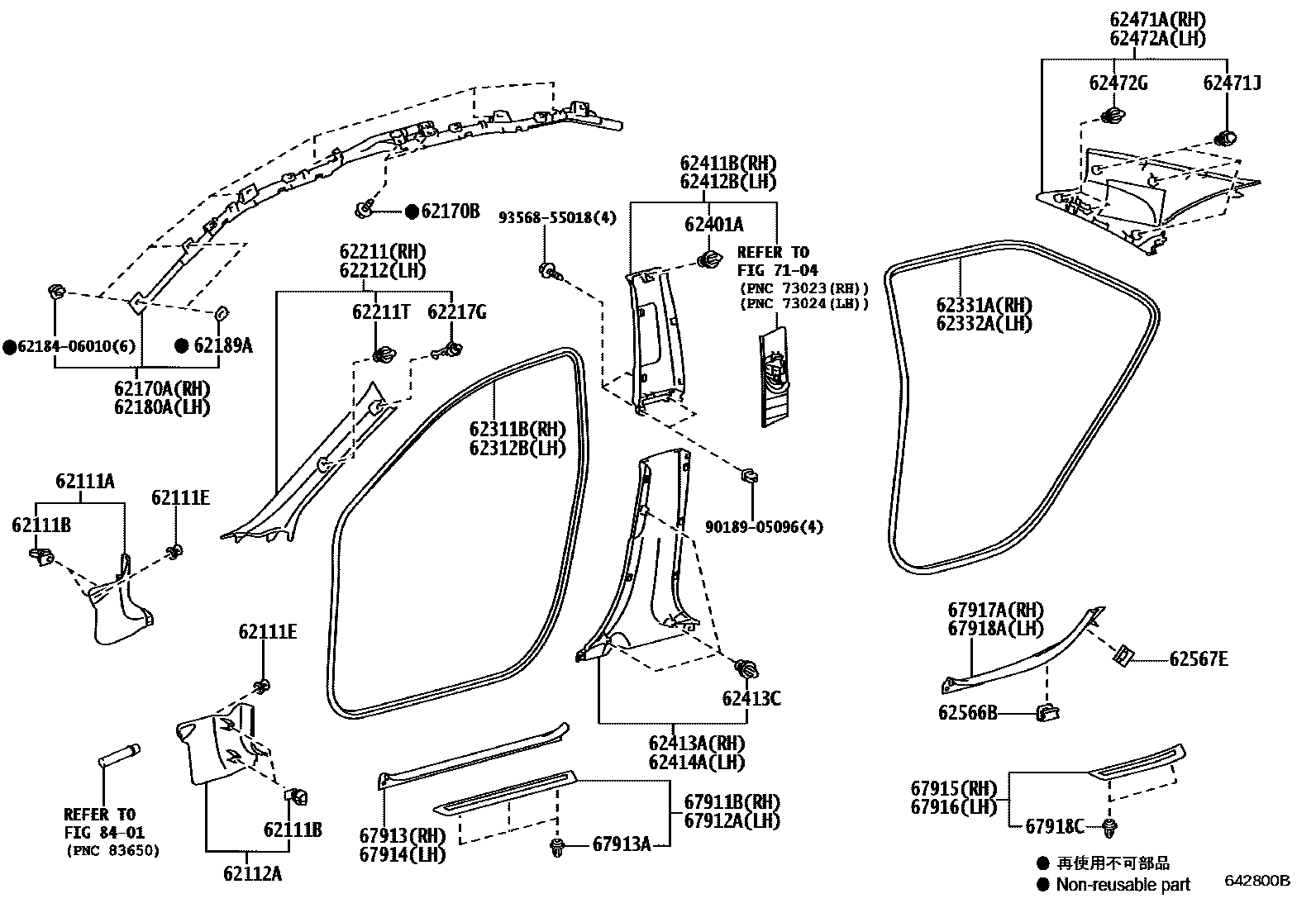

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33131-A0iAVV50201309-201409

SHELL,TRIM0#

main62101-33131-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62101-33131-C0iAVV50201108-201704

BLACK,TRIM2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212iAVV50201108-201704

62111ERETAINER, COWL SIDE TRIM

main90467-06193-C0iAVV50201108-201704

BLACK

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33220-A0iAVV50201309-201409

SHELL,TRIM0#

main62102-33220-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62102-33220-C0iAVV50201108-201704

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33040iAVV50201108-201704

62170BBOLT, W/WASHER

main90119-06869iAVV50201108-201704

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33040iAVV50201108-201704

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-33010iAVV50201108-201704

62211GARNISH, FRONT PILLAR, RH

main62210-33170-A0iAVV50201108-201409

SHELL,TRIM0#

main62210-33170-B0iAVV50201108-201409

GRAY,TRIM2#

main62210-33190-A3iAVV50201409-201704

FLAXEN,TRIM0#

main62210-33190-B2iAVV50201409-201704

GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iAVV50201108-201704

62212GARNISH, FRONT PILLAR, LH

main62220-33170-A0iAVV50201108-201409

SHELL,TRIM0#

main62220-33170-B0iAVV50201108-201409

GRAY,TRIM2#

main62220-33190-A3iAVV50201409-201704

FLAXEN,TRIM0#

main62220-33190-B2iAVV50201409-201704

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33040iAVV50201108-201704

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33090-A0iAVV50201108-201409

SHELL,TRIM0#

main62311-33090-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62311-33090-C0iAVV50201108-201704

BLACK,TRIM2#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33090-A0iAVV50201108-201409

SHELL,TRIM0#

main62312-33090-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62312-33090-C0iAVV50201108-201704

BLACK,TRIM2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33110-A0iAVV50201108-201409

SHELL,TRIM0#

main62331-33110-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62331-33110-C0iAVV50201108-201704

BLACK,TRIM2#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33110-A0iAVV50201108-201409

SHELL,TRIM0#

main62332-33110-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62332-33110-C0iAVV50201108-201704

BLACK,TRIM2#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iAVV50201108-201704

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33170-A0iAVV50201108-201409

SHELL,TRIM0#

main62410-33170-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62410-33170-B0iAVV50201108-201704

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33170-A0iAVV50201108-201409

SHELL,TRIM0#

main62420-33170-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62420-33170-B0iAVV50201108-201704

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33100-A0iAVV50201108-201409

SHELL,TRIM0#

main62413-33100-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62413-33100-C0iAVV50201108-201704

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAVV50201108-201704

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33100-A0iAVV50201108-201409

SHELL,TRIM0#

main62414-33100-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62414-33100-C0iAVV50201108-201704

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33190-A0iAVV50201108-201409

SHELL,TRIM0#

main62470-33190-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62470-33190-B0iAVV50201108-201704

GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09236iAVV50201108-201207

main90467-09240iAVV50201207-201704

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33190-A0iAVV50201108-201409

SHELL,TRIM0#

main62480-33190-A1iAVV50201409-201704

FLAXEN,TRIM0#

main62480-33190-B0iAVV50201108-201704

GRAY,TRIM2#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iAVV50201108-201704

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010iAVV50201108-201704

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iAVV50201108-201704

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33101iAVV50201108-201704

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33091iAVV50201108-201704

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33130-A0iAVV50201108-201409

SHELL,TRIM0#

main67913-33130-A1iAVV50201409-201704

FLAXEN,TRIM0#

main67913-33130-C0iAVV50201108-201704

BLACK,TRIM2#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iAVV50201108-201704

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33130-A0iAVV50201108-201409

SHELL,TRIM0#

main67914-33130-A1iAVV50201409-201704

FLAXEN,TRIM0#

main67914-33130-C0iAVV50201108-201704

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33091iAVV50201108-201704

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33091iAVV50201108-201704

67917APLATE, REAR DOOR SCUFF, RH

main67917-33110-A0iAVV50201108-201409

SHELL,TRIM0#

main67917-33110-A1iAVV50201409-201704

FLAXEN,TRIM0#

main67917-33110-C0iAVV50201108-201704

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33110-A0iAVV50201108-201409

SHELL,TRIM0#

main67918-33110-A1iAVV50201409-201704

FLAXEN,TRIM0#

main67918-33110-C0iAVV50201108-201704

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162iAVV50201108-201704

7104

8401

6218406010

main62184-06010

9018905096

main90189-05096

9356855018

main93568-55018

43 parts on this diagram · 1 diagram in section
