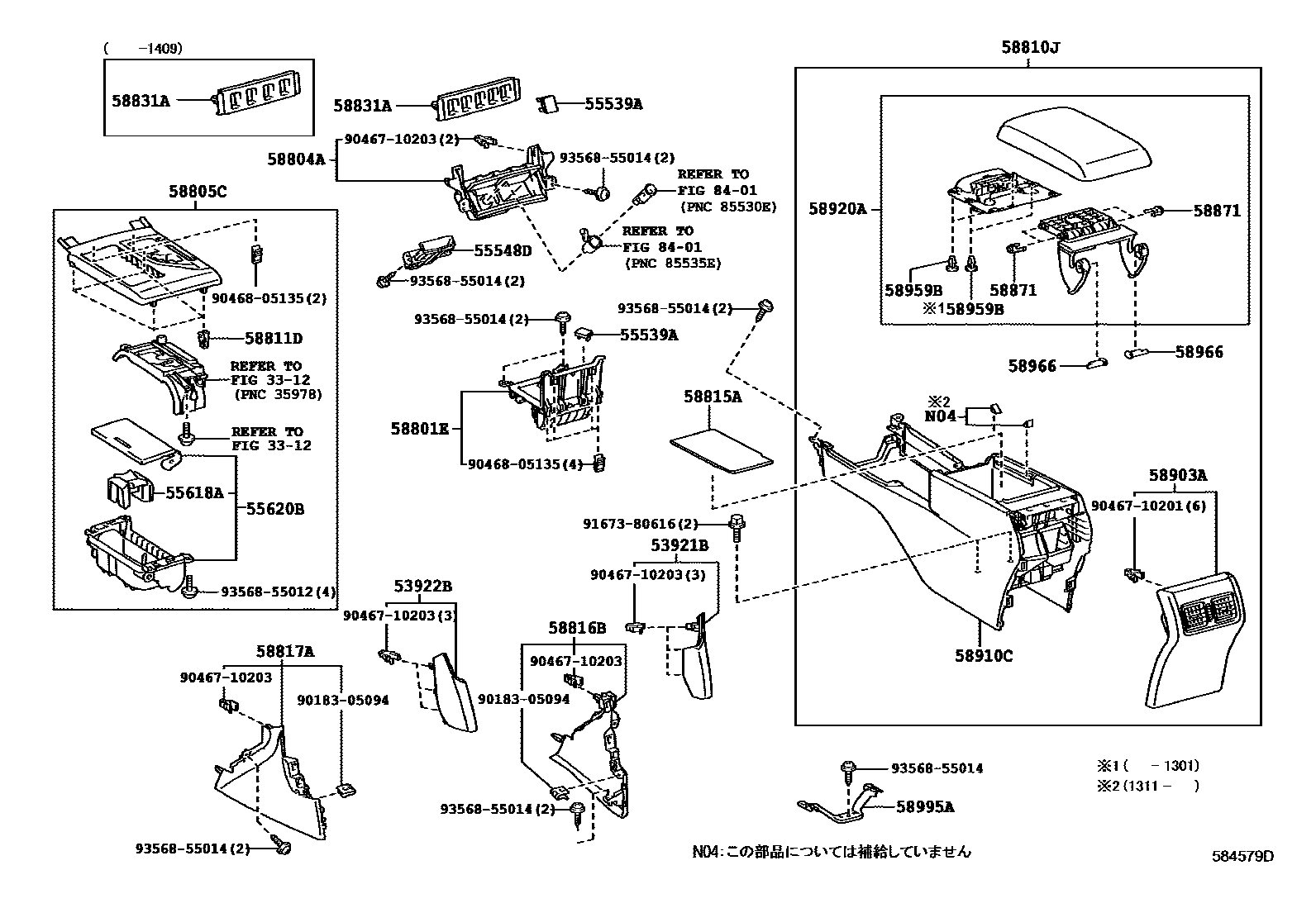

CONSOLE BOX & BRACKET
3312
53921BGARNISH, FRONT PANEL, RH
BLACK,TRIM0#,2#
53922BGARNISH, FRONT PANEL, LH
BLACK,TRIM0#,2#
55539ACOVER, SPARE SWITCH HOLE
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
sub55539-52060
55548DCOVER, INSTRUMENT PANEL HOLE
BLACK
55618AHOLDER, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
SHELL,TRIM0#,2#
BROWN,TRIM0#,2#
58801EBOX SUB-ASSY, CONSOLE, UPPER
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
SHELL,TRIM0#,2#
BROWN,TRIM0#,2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BROWN,TRIM0#,2#
BROWN,TRIM0#,2#
TRIM0#,2#
58810JBOX ASSY, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
58815ACARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM0#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#
58871CUSHION, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
58920AARMREST ASSY, REAR CONSOLE
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58966SHAFT, BOX DOOR HINGE
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8401
9018305094
main90183-05094
9046710201
main90467-10201
9046710203
main90467-10203
9046805135
main90468-05135
9167380616
main91673-80616
9356855012
main93568-55012
9356855014
main93568-55014
31 parts on this diagram · 1 diagram in section
