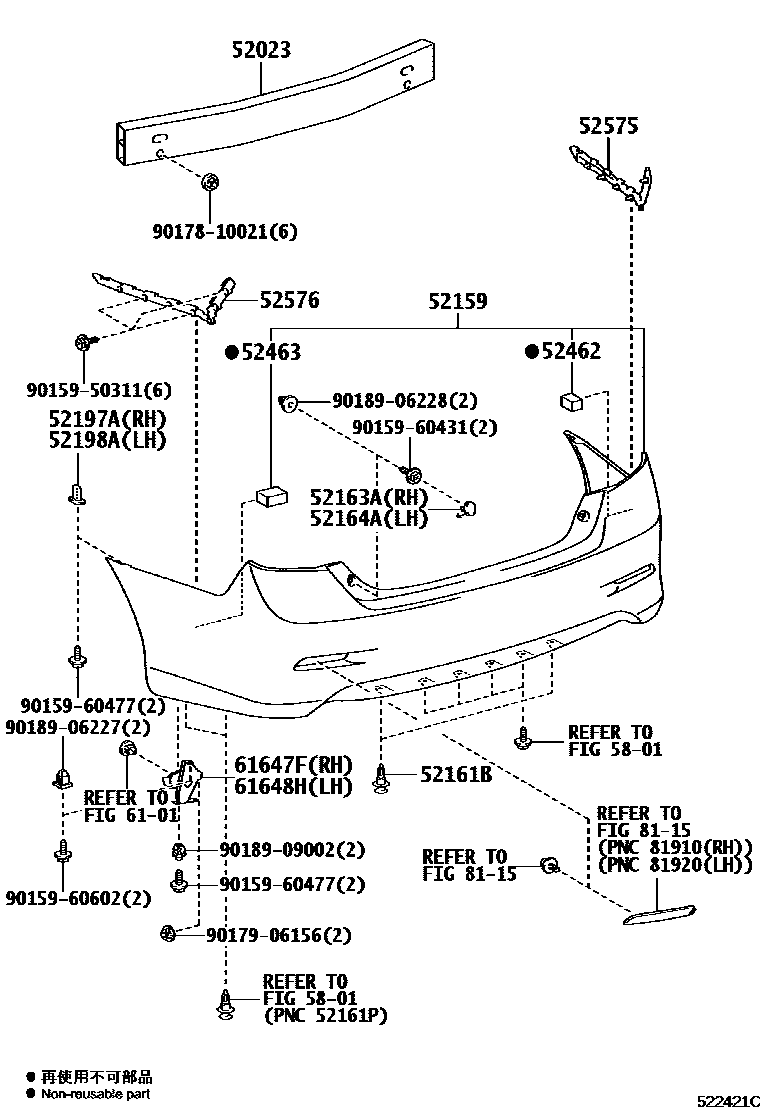

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY M.M.,1H1
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W7
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY M.M.,1H1
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W7
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
ATTITUDE BLACK MC.,218
RED M.M.,3R3
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE M.M.,8W7
WHITE PEARL CS.,070
SILVER ME.,1F7
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W7
52164APLATE, REAR BUMPER, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
OLIVE M.M.,6T7
TRUE BLUE M.M.,8W1
DK.BLUE MC.,8S6
DK.BLUE M.M.,8W7
WHITE PEARL CS.,070
SILVER ME.,1F7
DK. STEEL MC.,1H2
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
RED M.M.,3R3
TRUE BLUE M.M.,8W1
DK.BLUE M.M.,8W7
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
6101SIDE MEMBER
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
8115REFLEX REFLECTOR
9015950311
main90159-50311
9015960431
main90159-60431
9015960477
main90159-60477
9015960602
main90159-60602
9017810021
main90178-10021
9017906156
main90179-06156
9018906227
main90189-06227
9018906228
main90189-06228
9018909002
main90189-09002
25 parts on this diagram · 2 diagrams in section
