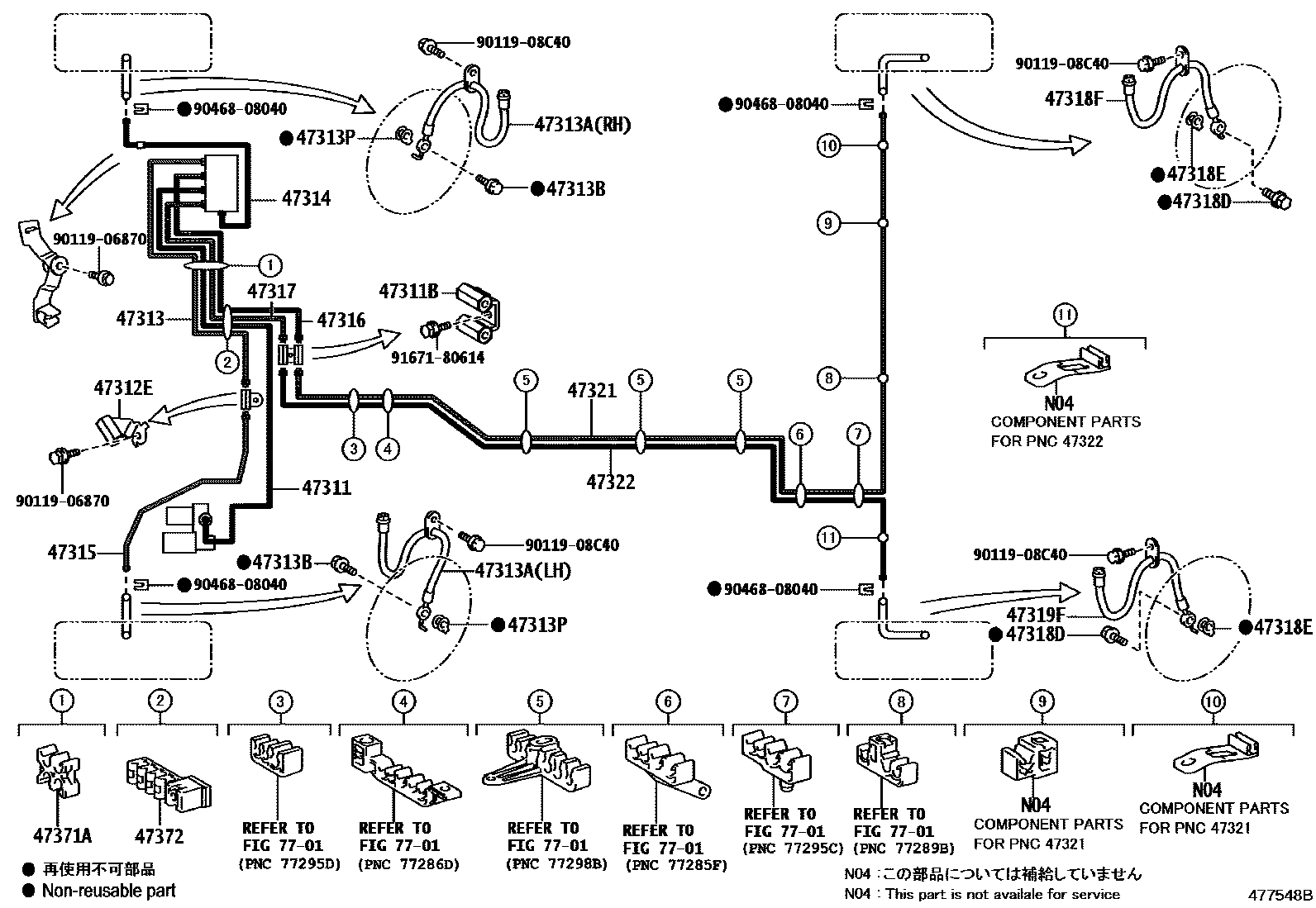

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-33290iAVV50201108-201308

main47311-33291iAVV50201309-201409

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iAVV50201108-201409

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10280iAVV50201108-201409

47313TUBE, FRONT BRAKE, NO.3

main47313-33250iAVV50201409-201704

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G45iAVV50201108-201409

main90947-02G48iAVV50201108-201409

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAVV50201409-201704

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAVV50201108-201409

47314TUBE, FRONT BRAKE, NO.4

main47314-33200iAVV50201108-201409

main47314-33270iAVV50201409-201704

47315TUBE, FRONT BRAKE, NO.5

main47315-33270iAVV50201108-201409

main47315-33320iAVV50201409-201704

47316TUBE, FRONT BRAKE, NO.6

main47316-33330iAVV50201108-201409

47317TUBE, FRONT BRAKE, NO.7

main47317-33320iAVV50201108-201409

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAVV50201108-201409

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAVV50201108-201409

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G49iAVV50201108-201409

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G50iAVV50201108-201409

47321TUBE, REAR BRAKE, NO.1

main47321-33180iAVV50201108-201409

main47321-33200iAVV50201409-201704

47322TUBE, REAR BRAKE, NO.2

main47322-33150iAVV50201108-201409

main47322-33170iAVV50201409-201704

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iAVV50201108-201409

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D87iAVV50201108-201409

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906870

main90119-06870

9011908C40

main90119-08C40

9046808040

main90468-08040

9167180614

main91671-80614

24 parts on this diagram · 2 diagrams in section
