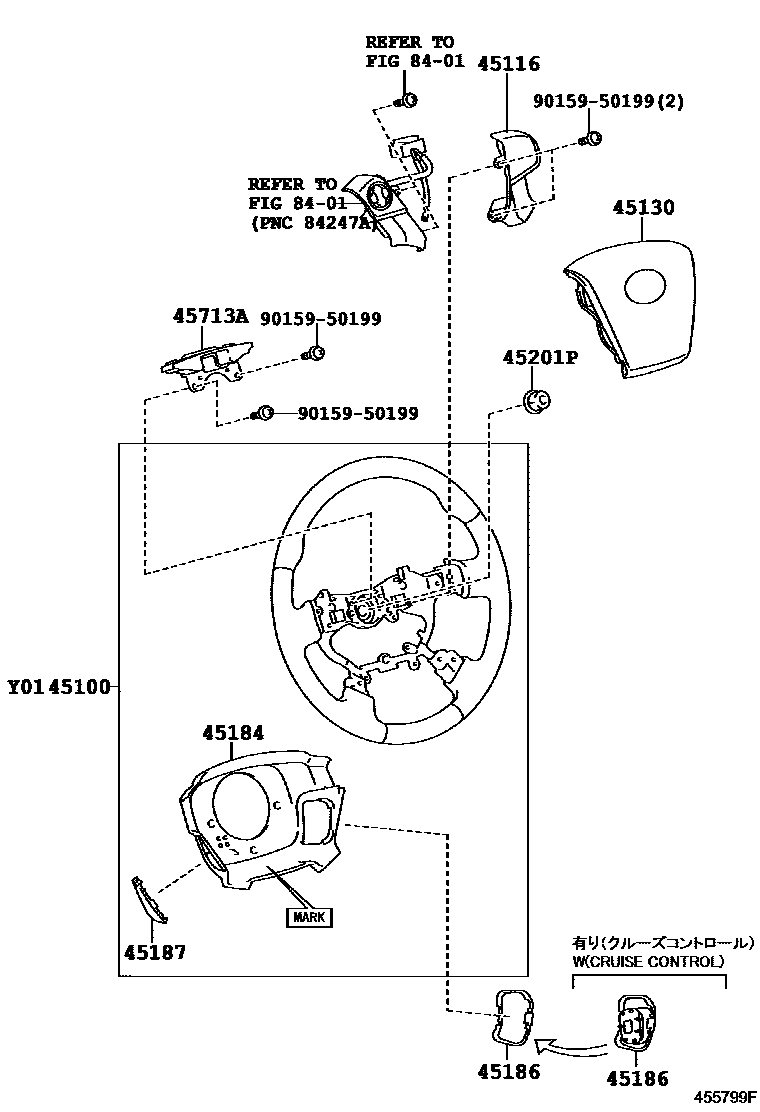

STEERING WHEEL

0001 14������� 0002 13�������

45100WHEEL ASSY, STEERING

main45100-06N20-C0supersedes 45100-33840-C0iAVV50201306-201311

main45100-33780-C0supersedes 45100-33840-C0iAVV50201108-201306

main45100-33781-C0supersedes 45100-33840-C0iAVV50201312-201409

main45100-33790-C3iAVV50201309-201312

main45100-33791-C3supersedes 45100-33770-C0iAVV50201312-201409

main45100-33850-C0supersedes 45100-33840-C0iAVV50201409-201704

main45100-33860-C1supersedes 45100-33770-C0iAVV50201505-201704

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-33020iAVV50201108-201409

45130BUTTON ASSY, HORN

main45130-33490-C0iAVV50201108-201409

BLACK,TRIM0#,2#

main45130-33540-C0iAVV50201409-201704

BLACK,TRIM0#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-33120-C0iAVV50201108-201409

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33110-C0iAVV50201108-201409

BLACK,TRIM2#

main45186-33100-C0iAVV50201309-201409

main45186-48040-C0supersedes 45186-48050-C0iAVV50201409-201704

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-33070-C0supersedes 45187-48040-C0iAVV50201108-201409

main45187-48040-C0iAVV50201505-201704

45201PNUT, STEERING WHEEL SET

main90179-12071iAVV50201108-201409

45713ADAMPER, STEERING SHAKE

main45713-33140iAVV50201108-201409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

10 parts on this diagram · 2 diagrams in section
