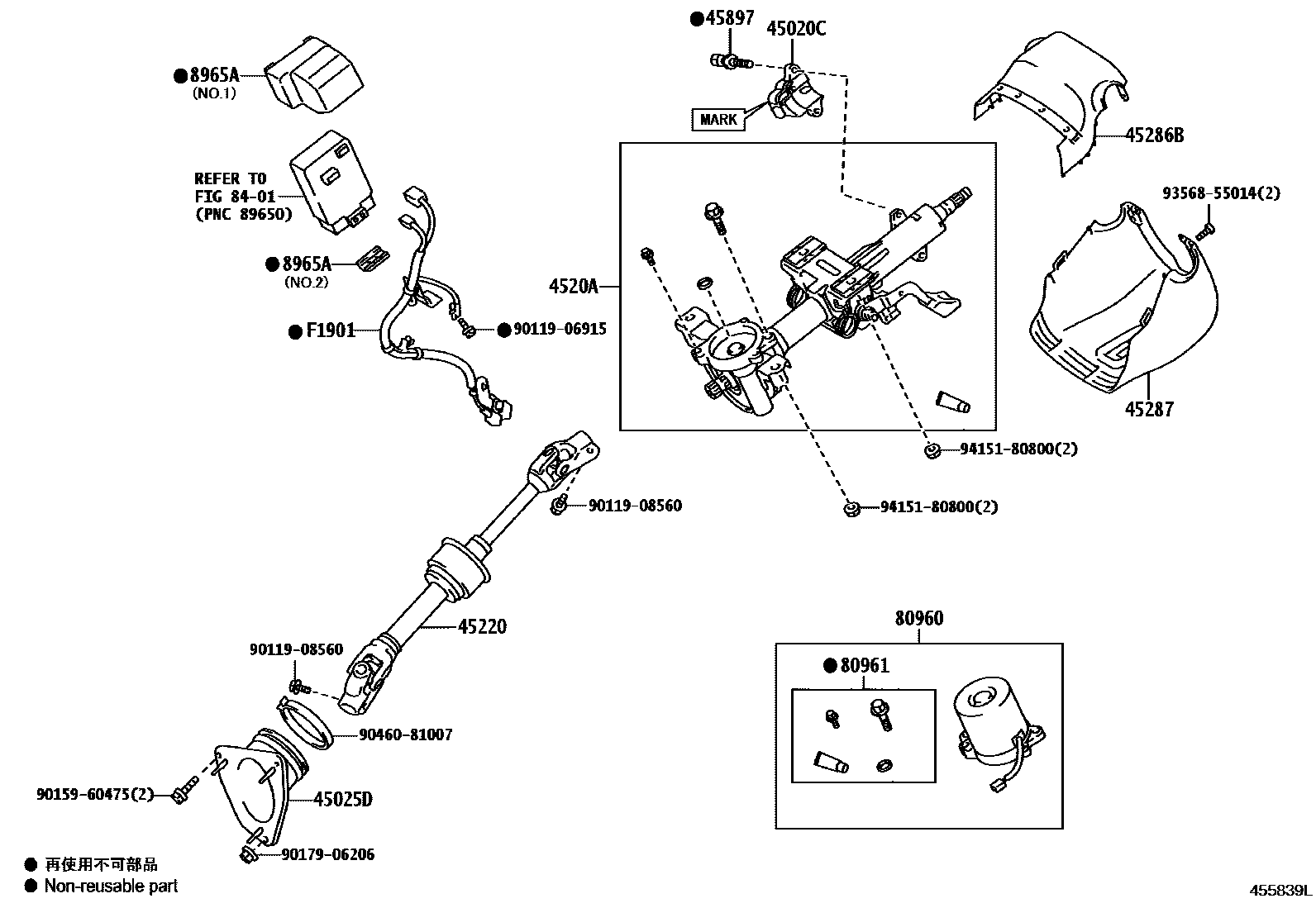

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06130iAVV50201409-201704

main45020-33170iAVV50201311-201409

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-33140iAVV50201108-201409

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-33050iAVV50201108-201409

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-33290iAVV50201108-201409

45286BCOVER, STEERING COLUMN, UPR

main45286-33240-C0iAVV50201108-201409

BLACK,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45287-33330-C0iAVV50201108-201409

BLACK,TRIM0#,2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAVV50201108-201409

80960MOTOR ASSY, POWER STEERING

main80960-33060iAVV50201108-201409

80961FASTENER SET, POWER STEERING MOTOR

main80961-33010iAVV50201108-201409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-06040iAVV50201403-201409

main8965A-06050iAVV50201409-201704

main8965A-33030iAVV50201108-201402

main8965A-33040iAVV50201108-201402

F1901WIRE SUB-ASSY, COMPUTER

mainF190106050iAVV50201409-201704

mainF190133060iAVV50201108-201207

9011906915

main90119-06915

9011908560

main90119-08560

9015960475

main90159-60475

9017906206

main90179-06206

9046081007

main90460-81007

9356855014

main93568-55014

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
