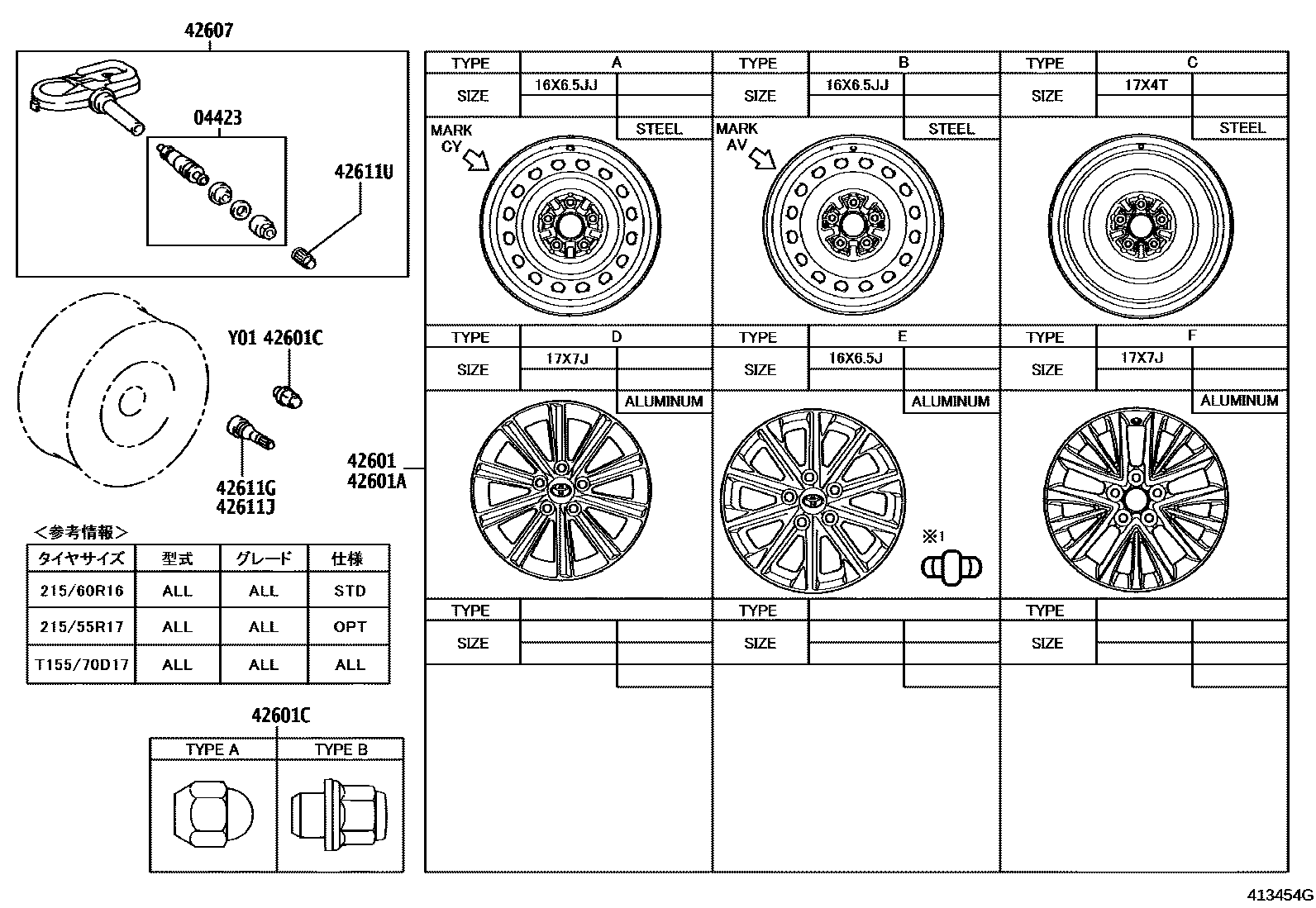

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iAVV50201409-201704

42601WHEEL, DISC

main42611-33790×4supersedes 42611-33541iAVV50201409-201704

main42611-33800×4supersedes 42611-33541iAVV50201108-201409

sub42611-33820

main42611-33840×4supersedes 42611-33541iAVV50201409-201704

main4261A-33120×4iAVV50201309-201409

main4261A-33130×4iAVV50201505-201704

42601AWHEEL, DISC (FOR SPARE)

main42611-33510iAVV50201108-201409

42601CNUT, HUB (FOR AXLE)

main90942-01033×20supersedes 90942-01082iAVV50201309-201409

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-39005×4iAVV50201505-201704

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAVV50201409-201704

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAVV50201108-201409

42611UCAP, TIRE VALVE

main90942-05039×4iAVV50201409-201704

8 parts on this diagram · 3 diagrams in section
