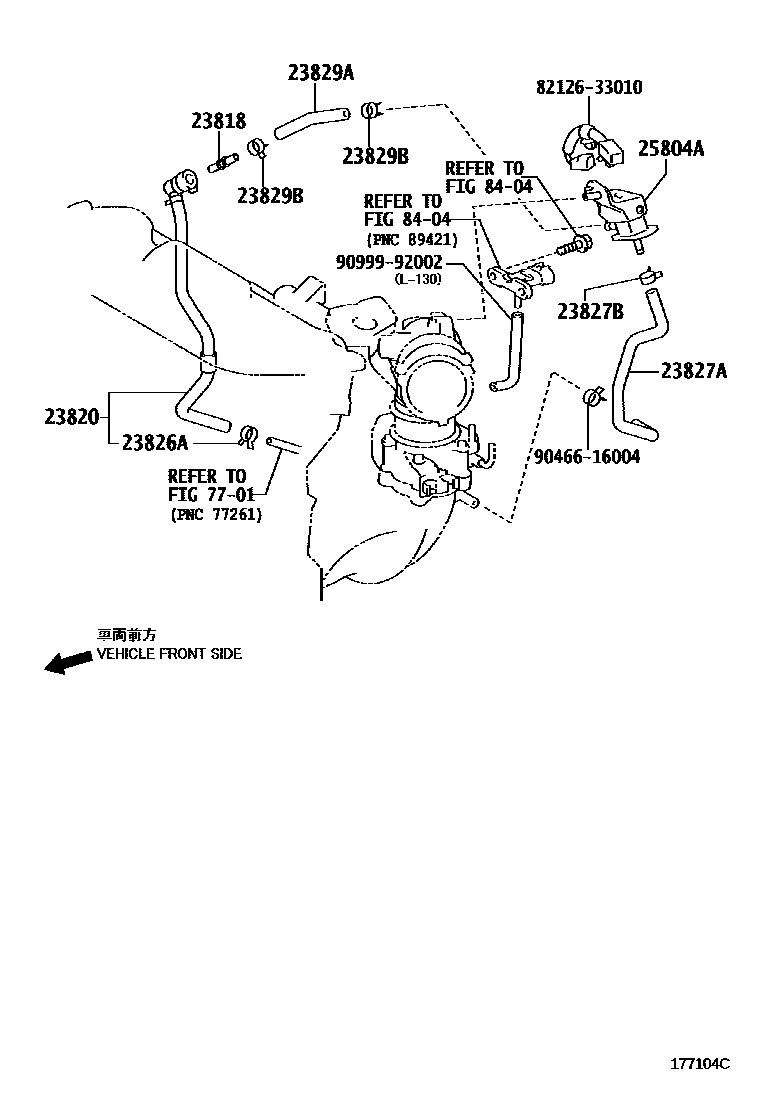

VACUUM PIPING

23818PIPE, FUEL VAPOR FEED

main23818-36020i2ARFXE..AVV50201108-201409

23820HOSE ASSY, FUEL VAPOR FEED

main23820-36050i2ARFXE..AVV50201108-201409

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2ARFXE..AVV50201108-201409

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-36100i2ARFXE..AVV50201108-201409

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13004i2ARFXE..AVV50201108-201409

23829AHOSE, FUEL VAPOR FEED

main23829-36020i2ARFXE..AVV50201108-201409

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90467-12056×2i2ARFXE..AVV50201108-201409

25804AVALVE SUB-ASSY, VACUUM SWITCHING

main25805-36010i2ARFXE..AVV50201108-201409

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8212633010WIRE, ENGINE

main82126-33010

9046616004

main90466-16004

9099992002

main90999-92002

13 parts on this diagram · 1 diagram in section
