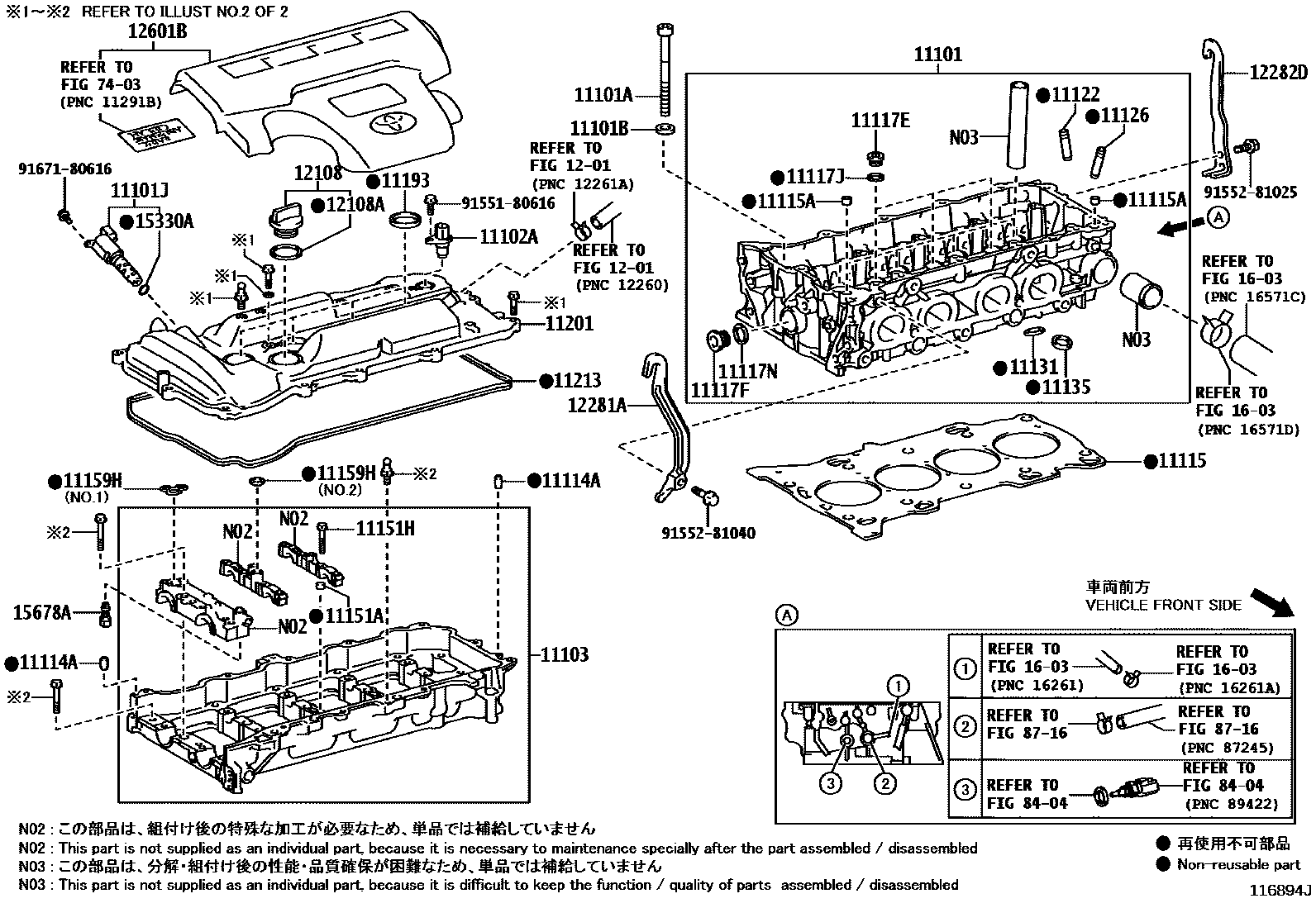

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11102ASENSOR, CAMSHAFT POSITION
11114APIN, STRAIGHT
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
7403
8404
8716
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
39 parts on this diagram · 2 diagrams in section
