ENGINE OVERHAUL GASKET KIT

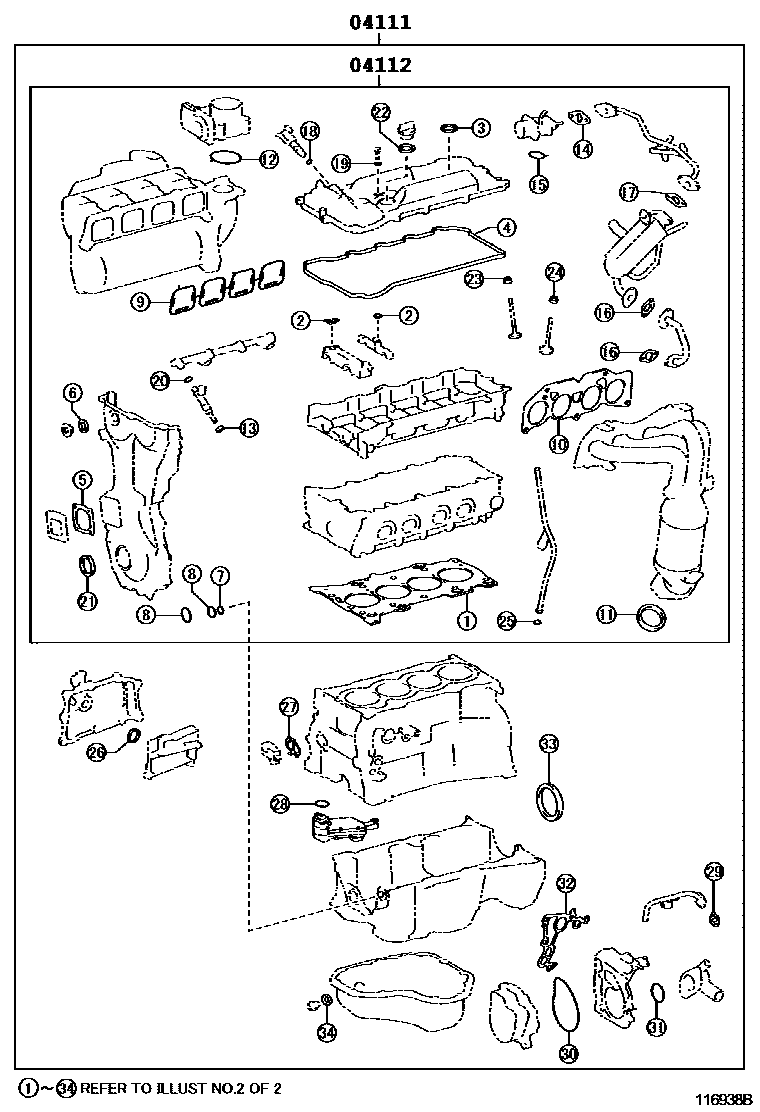

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-36112i201208-201309

main04111-36113i201309-201312

main04111-36114i201312-201409

main04111-36115i201409-201704

main04111-36150i201108-201111

main04111-36151i201111-201201

main04111-36152i201201-201207

04112GASKET KIT, ENGINE VALVE GRIND

main04112-36091i201208-201312

main04112-36092i201312-201409

main04112-36093i201409-201704

main04112-36130i201108-201201

main04112-36131i201201-201207

2 parts on this diagram · 2 diagrams in section
